988312 - Gravely Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 002000 & Above) Ground Drive Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

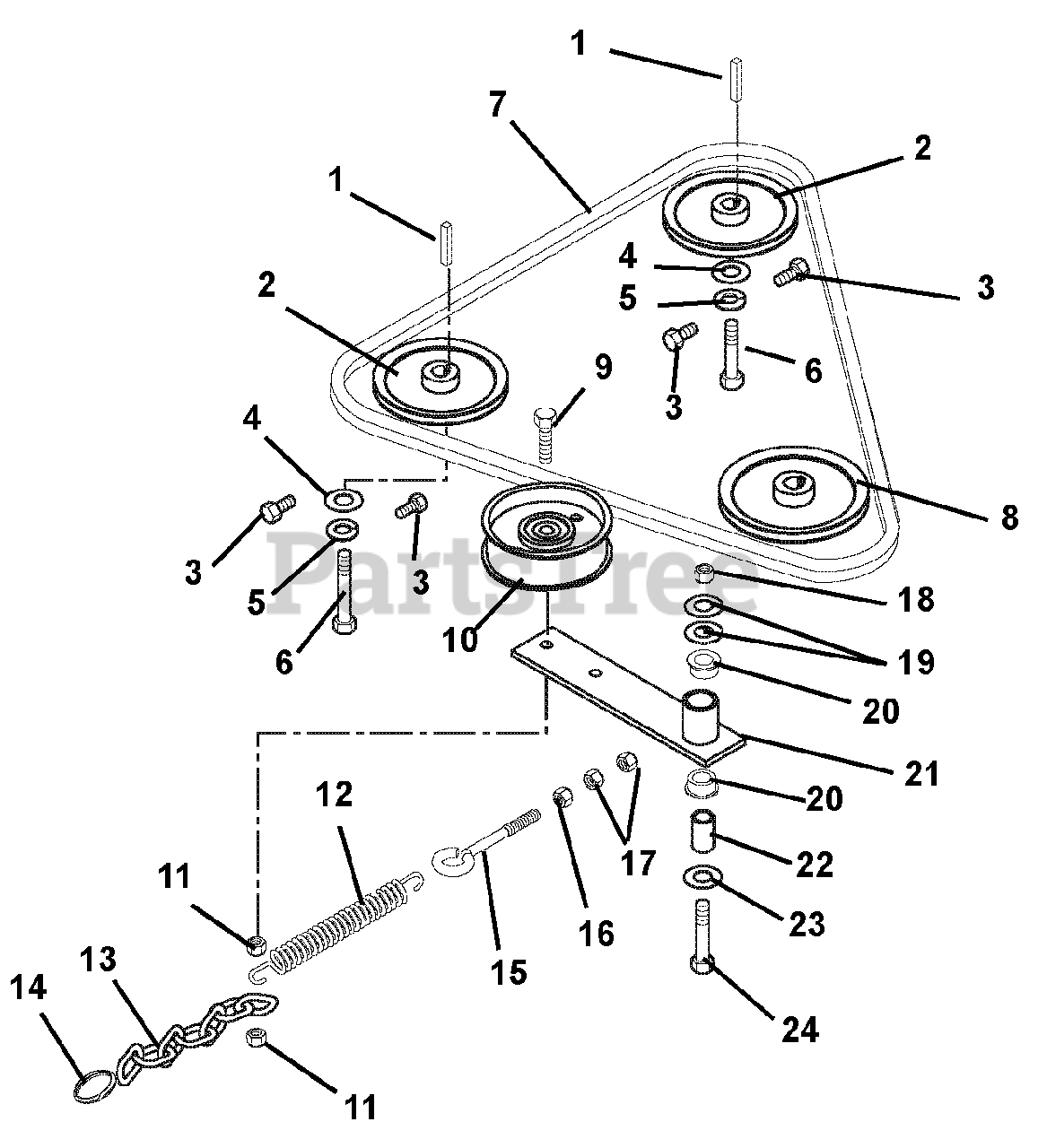

Ground Drive Parts Diagram

  • Title

1

Gravely 050995

KEY-STR 5MMX25MMX5MM
(Superseded to 06607500)

$3.99

$

In Stock, Qty 12

0

2

Gravely 051138

SHEAVE, PUMP .592 X 4.345
(Superseded to 07318900)

$52.99

$

In Stock, Qty 10

0

3

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

4

Gravely 012694

WSHR-FL-STL .281X1.250X.048PL
(Superseded to 06403700)

$1.99

$

Usually ships in 4-12 days

0

5

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

6

Gravely 05969800

BLT-HEX M6 X 1.0X12 YWZC

$2.49

$

In Stock, Qty 10

0

7

Gravely 07239700

V-BELT, 4L-RAW EDGE

$38.99

$

In Stock, Qty 5

0

8

Gravely 09113600

SHEAVE

$118.99

$

Usually ships in 4-12 days

0

9

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 052062

IDLER-PLY FLAT 3.25 X .38 X1.0
(Superseded to 07320700)

$35.99

$

In Stock, Qty 5

0

11

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 08336100

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

13

Gravely 04927200

CHAIN, LINK

$10.99

$

Usually ships in 4-12 days

0

14

Gravely 00564900

RING, SPLIT .1 X 2

$3.99

$

In Stock, only 1 left!

0

15

Gravely 07030000

BLT-EYE .375-16X2.50 YWZC

$8.49

$

In Stock, Qty 6

0

16

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

18

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

19

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

21

Gravely 051134

WLDMT,GROUND DRIVE IDLER
(Superseded to 08844251)

$59.99

$

Usually ships in 4-12 days

0

22

Gravely 041992

BUSH.,S.560X.745X2.04 ST
(Superseded to 08815100)

$22.99

$

Usually ships in 4-12 days

0

23

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 05960000

BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

In Stock, Qty 20+

0
