988312 - Gravely Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 002000 & Above) Steering Controls Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

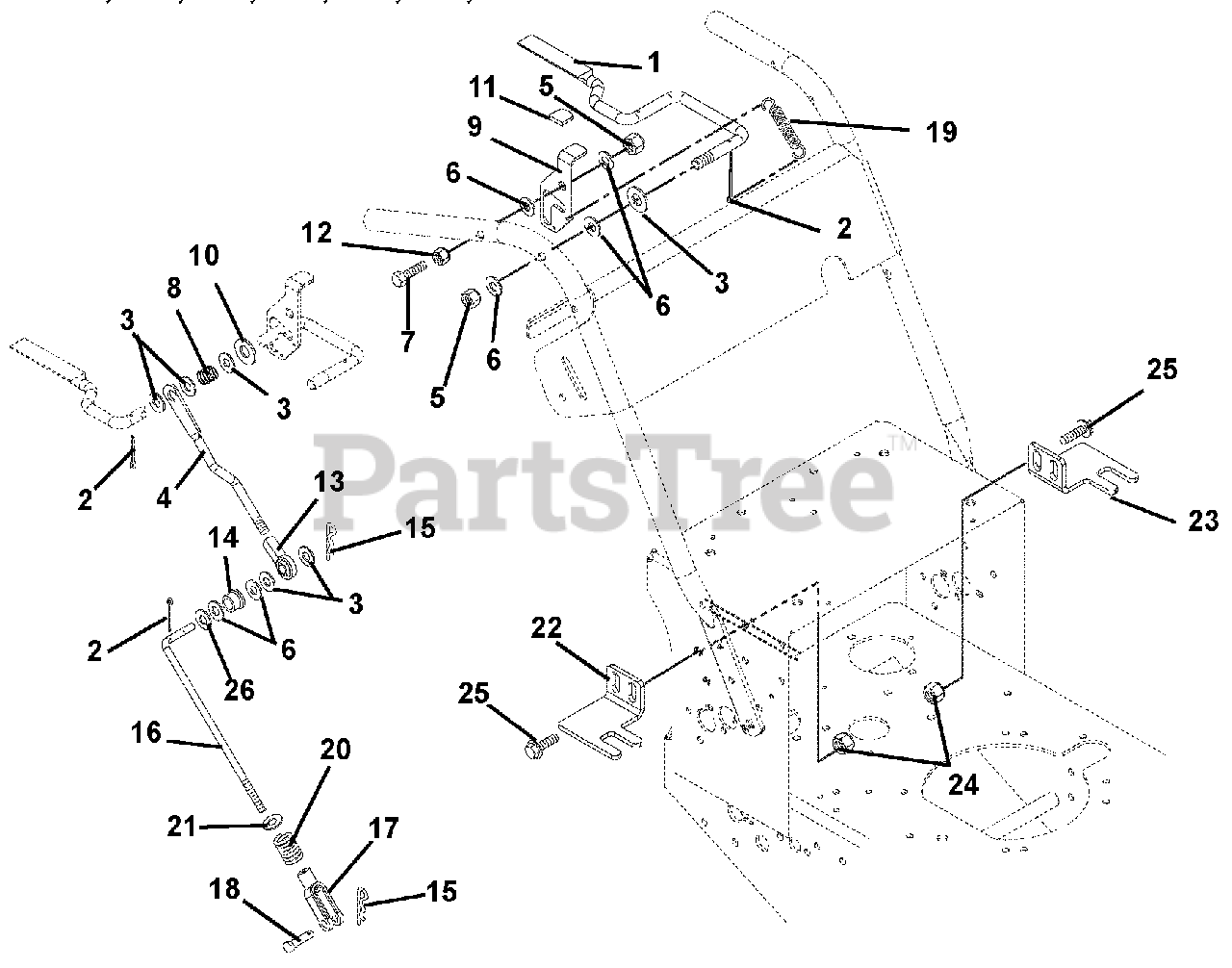

Steering Controls Parts Diagram

  • Title

1

Gravely 04905200

LEVER, HAND CONTROL LH

$81.99

$

In Stock, only 1 left!

0

Gravely 04922400

LEVER, HAND CONTROL RH

$73.99

$

In Stock, only 1 left!

0

2

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

3

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 04926200

ROD, STEERING LINK

$

$

Not available

5

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 020775

WSHR-FL-NY .375X.75X.060
(Superseded to 06433600)

$0.99

$

In Stock, only 4 left!

0

7

Gravely 05921600

BLT-HEX.38-16X2.5FTHD GR2 YWZC

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 043193

SG-COMP .045X.600X.750 WLD7.5
(Superseded to 08338800)

$7.49

$

Usually ships in 4-12 days

0

9

Gravely 04926800

LATCH, RH THUMB

$

$

Not available

Gravely 04926900

LATCH, LH THUMB

$56.99

$

Usually ships in 4-12 days

0

10

Gravely 06441000

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$3.49

$

In Stock, Qty 11

0

11

Gravely 04928700

GRIP, THUMB LATCH

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 044753

ROD END, .38 RH
(Superseded to 03563100)

$17.99

$

In Stock, only 3 left!

0

14

Gravely 05533900

BSHG-FLG .375X.469X.25NY

$

$

Not available

15

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 04926500

ROD, SPEED CONTROL

$71.99

$

Usually ships in 4-12 days

0

17

Gravely 018380

CLEVIS, .38-24 ADJ.
(Superseded to 08800400)

$11.99

$

Usually ships in 4-12 days

0

18

Gravely 06814900

PIN-CLEV .38X1.25 YWZC

$4.99

$

In Stock, only 2 left!

0

19

Gravely 08339300

SG-TENS .041X.500X1.750

$6.49

$

In Stock, Qty 5

0

20

Gravely 08312500

SG-COMP .093X.59X1.50

$

$

Not available

21

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 04931200

STOP, HYDRO NEUTRAL RH

$

$

Not available

23

Gravely 04931100

STOP, HYDRO NEUTRAL LH

$

$

Not available

24

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

25

Gravely 07049400

BLT-SERHFWH .25-20X.75 YWZC

$2.99

$

Usually ships in 4-12 days

0

26

Gravely 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0
