988315 (GR1332FXPCE) - Ariens 32" Walk-Behind Mower, 13hp Kawasaki (SN: 003500 & Above) Deck And Mower Frame - 32", 36" And 44" Parts Diagram

32" Walk-Behind Mower, 13hp Kawasaki

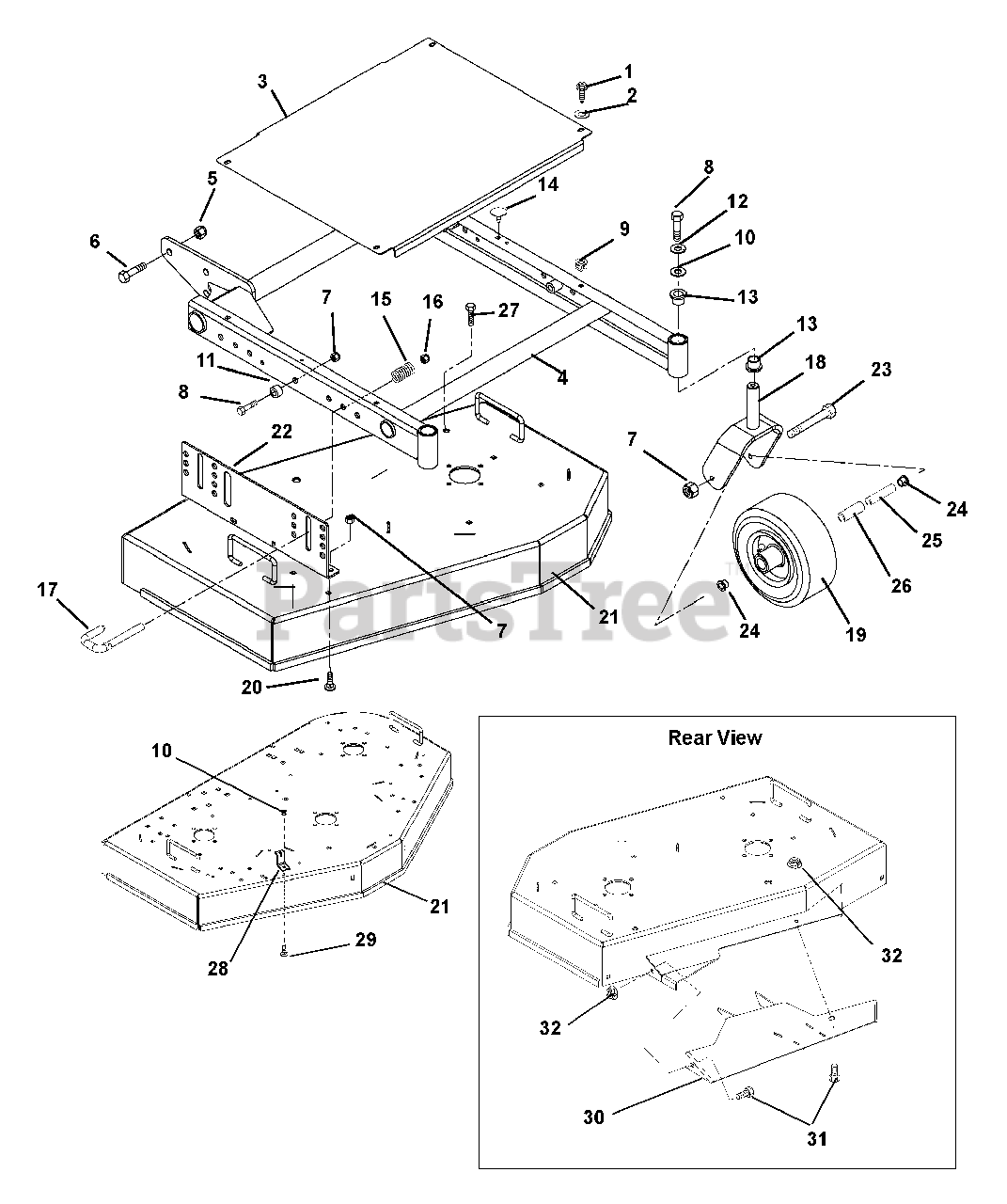

Deck And Mower Frame - 32", 36" And 44" Parts Diagram

  • Title

1

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 04929753

COVER - BELT - PRO - 32"

Note: (988315)

$

$

Not available

3

Ariens 04916753

COVER - BELT - PRO MOWER

Note: (988316)

$

$

Not available

3

Ariens 04940153

COVER - BELT - PRO - 44"

Note: (988319)

$

$

Not available

4

Ariens 04929653

WMT - MOWER FRAME - 32"

Note: (988315)

$

$

Not available

4

Ariens 04916753

COVER - BELT - PRO MOWER

Note: (988316)

$

$

Not available

4

Ariens 04940053

WMT - MOWER FRAME - 44"

Note: (988319)

$

$

Not available

5

Ariens 06540700

@NUT-LK-NYL .625-11 YWZC

$5.49

$

In Stock, Qty 20+

0

6

Ariens 05968700

@BLT-HEX .62-11X1.50 GR5 YWZC

$4.99

$

In Stock, Qty 9

0

7

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

7

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (988319)

$1.99

$

In Stock, Qty 20+

0

8

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0

9

Ariens 07538100

GRMT,PLASTIC

$1.99

$

In Stock, Qty 20+

0

10

Ariens 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$4.99

$

In Stock, Qty 20+

0

11

Ariens 08553700

BSHG-SLV .391X.688X.52 PM

$6.99

$

In Stock, Qty 20+

0

12

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

13

Ariens 05533600

BSHG-FLG 1.00X1.25X1.50X1.50EP
(Superseded to 05500934)

$8.49

$

In Stock, Qty 20+

0

14

Ariens 07503100

BUMPER GROMMET

$4.99

$

In Stock, Qty 14

0

15

Ariens 08325900

SPRG, COMP .058X.65X2.13 WLD15

$

$

Not available

16

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$5.49

$

In Stock, Qty 15

0

17

Ariens 04920400

PIN - LATCH

$39.99

$

Usually ships in 4-12 days

0

18

Ariens 04917053

WMT - CASTER FORK

$157.99

$

Usually ships in 4-12 days

0

19

Ariens 07157200

WHEEL 9 X 3.50 SEMI-PNEUMATIC
(Superseded to 07100931)

$158.99

$

In Stock, only 3 left!

0

20

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$3.49

$

In Stock, Qty 20+

0

21

Ariens 58807100

KIT-32" REAR DIS DECK W/DECALS

Note: (988315)

$

$

Not available

21

Ariens 58805000

KIT-36" REAR DIS DECK W/DECALS

Note: (988316)

$

$

Not available

21

Ariens 58807400

KIT-44" REAR DIS DECK W/DECALS

Note: (988319)

$

$

Not available

22

Ariens 58806600

KIT-MOWER SIDE SUPT BRKT-RH&LH

$168.99

$

Usually ships in 4-12 days

0

23

Ariens 05925400

BLT-HEX .38-16X5.50 YWZC
(Superseded to 05982000)

$4.99

$

In Stock, only 1 left!

0

24

Ariens 07000014

RTNR-BEARING-PRO

$43.99

$

Usually ships in 4-12 days

0

25

Ariens 04916900

BEARING .625 X .380 X 4.08

$76.99

$

Usually ships in 4-12 days

0

26

Ariens 05400003

BEARING, ROLLER--PRO

$23.99

$

In Stock, only 4 left!

0

27

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

28

Ariens 09245353

ANCHOR, SPRING (RED)

$44.99

$

Usually ships in 4-12 days

0

29

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$2.49

$

In Stock, Qty 20+

0

30

Ariens 00461451

WMT-36" DEFLECT EXT-REAR DISCH

Note: (988316)

$

$

Not available

30

Ariens 00461551

WMT-32" DEFLECT EXT-REAR DISCH

Note: (988315)

$

$

Not available

31

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (988315, 316)

$2.49

$

In Stock, Qty 20+

0

32

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (988315, 316)

$1.99

$

In Stock, Qty 20+

0
