988315 (GR1332FXPCE) - Ariens 32" Walk-Behind Mower, 13hp Kawasaki (SN: 003500 & Above) Traction Controls Parts Diagram

32" Walk-Behind Mower, 13hp Kawasaki

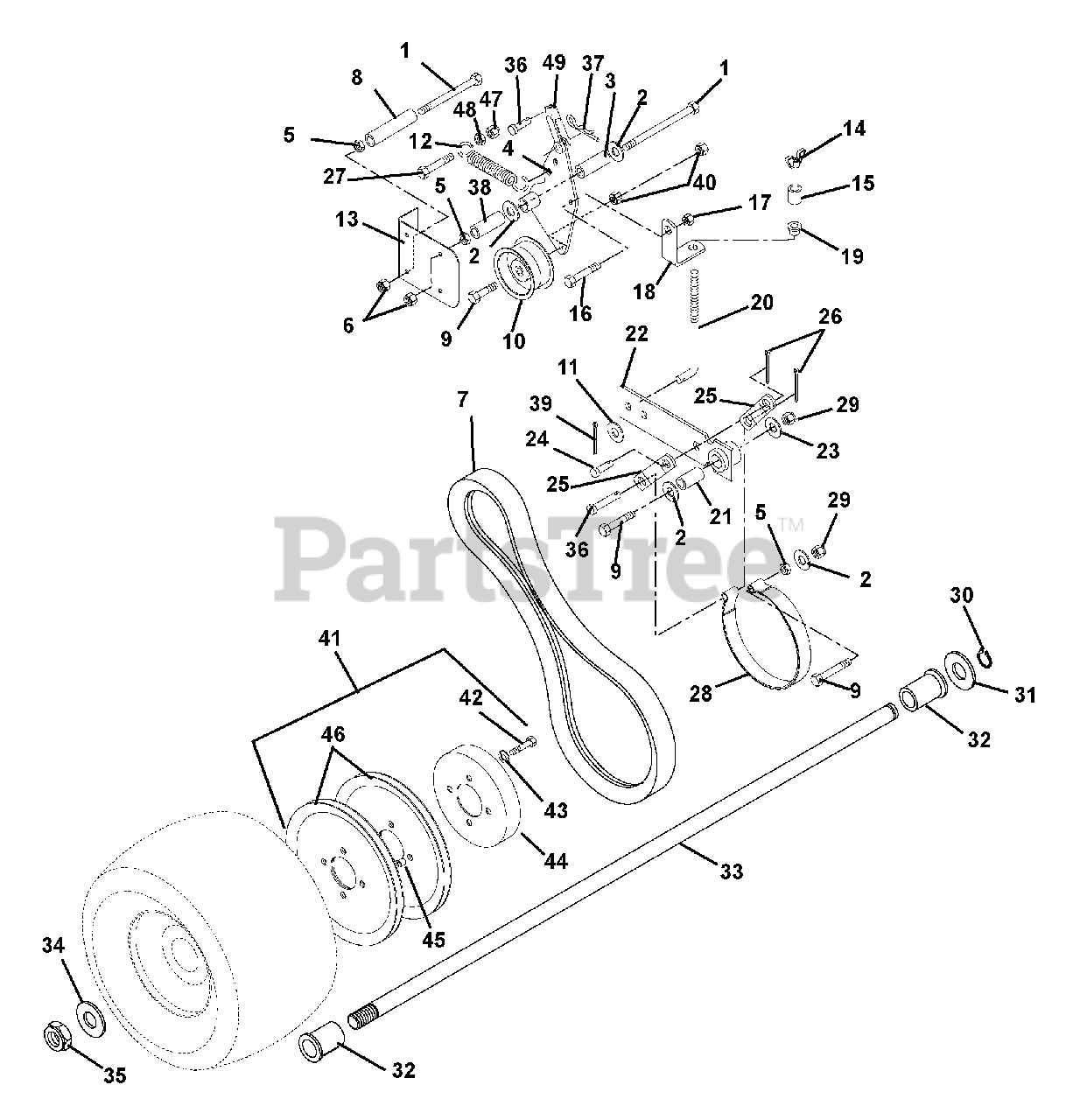

Traction Controls Parts Diagram

  • Title

1

Ariens 05970400

@BLT-HEX .38-16X4.50 GR5 YWZC
(Superseded to 05901938)

$4.99

$

Usually ships in 4-12 days

0

2

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 08831500

BUSH.,S.385X.610X1.80 ST

$5.99

$

Usually ships in 4-12 days

0

4

Ariens 04938700

WMT - WHEEL CLUTCH ARM

Note: (Serial # 101-2999)

$

$

Not available

4

Ariens 04946200

WMT - WHEEL CLUTCH ARM

Note: (Serial # 3000 and up)

$93.99

$

Usually ships in 4-12 days

0

5

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

6

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07239600

BELT, TRACTION DRIVE

Note: (Serial # 101-2999)

$94.99

$

In Stock, only 2 left!

0

7

Ariens 07243600

BELT - TRACTION DRIVE - PRO

Note: (Serial # 3000 and up)

$96.99

$

In Stock, Qty 6

0

8

Ariens 08875300

BSHG, SPACER, 3.25X3/8IDX5/8OD

$5.99

$

Usually ships in 4-12 days

0

9

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, Qty 12

0

10

Ariens 07318400

IDLER 2.75X1.25

$22.99

$

In Stock, only 2 left!

0

11

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

12

Ariens 08346800

SG-TENS .105X1.00X5.0

$14.99

$

In Stock, only 2 left!

0

13

Ariens 58805200

KIT-BELT COVER W/DECALS

$67.99

$

Usually ships in 4-12 days

0

14

Ariens 06537100

NUT-NYLK WING .312-18 YWZC

$5.99

$

In Stock, only 1 left!

0

15

Ariens 08553700

BSHG-SLV .391X.688X.52 PM

$5.99

$

In Stock, Qty 15

0

16

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

17

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

18

Ariens 04928900

BRACKET, BRAKE LINK

$

$

Not available

19

Ariens 05517500

BSHG-FLG .320X.620X.312 NY

$18.99

$

Usually ships in 4-12 days

0

20

Ariens 04935500

ROD, BRAKE

$30.99

$

Usually ships in 4-12 days

0

21

Ariens 08833400

BUSH.,S.391X.622X.950 ST

$5.99

$

In Stock, Qty 8

0

22

Ariens 08831600

WLDMT,BRAKE ARM

$74.99

$

Usually ships in 4-12 days

0

23

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

24

Ariens 06814800

PIN-CLEV .38X.75 YWZC

$3.99

$

In Stock, only 4 left!

0

25

Ariens 08831900

LINK,BRAKE ARM
(Superseded to 08831951)

$15.99

$

In Stock, only 1 left!

0

26

Ariens 06707300

@PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 9

0

27

Ariens 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 12

0

28

Ariens 08880600

ASM, BRAKE BAND, PRO

$58.99

$

In Stock, only 3 left!

0

29

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

30

Ariens 05712300

RG-RTNG-EXT .906X.078
(Superseded to 05707300)

$2.99

$

In Stock, only 2 left!

0

31

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 16

0

32

Ariens 05517900

BSHG-FLG 1.010X1.38X1.4X1.65

$5.99

$

In Stock, only 2 left!

0

33

Ariens 04923400

SHAFT, AXLE

$187.99

$

Usually ships in 4-12 days

0

34

Ariens 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 15

0

35

Ariens 06537900

NUT-LK-JAM-NYL .75-10 YWZC

$15.99

$

Usually ships in 4-12 days

0

36

Ariens 06814900

PIN-CLEV .38X1.25 YWZC

$3.99

$

In Stock, only 2 left!

0

37

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 17

0

38

Ariens 04923300

BUSHING, SPACER .385X.561X1.38

$3.49

$

Usually ships in 4-12 days

0

39

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 5

0

40

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

41

Ariens 07326900

ASSY, PULLEY & DRUM

Note: (Includes 42 - 46)

$193.99

$

In Stock, Qty 6

0

42

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

Usually ships in 4-12 days

0

43

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

44

Ariens 08863900

DRUM,BRAKE

$45.99

$

In Stock, Qty 5

0

45

Ariens 08809500

BUSH.,S.385X.625X.475 ST

$

$

Not available

46

Ariens 07326901

SHEAVE 8"

$34.99

$

In Stock, only 2 left!

0

47

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

48

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

49

Ariens 08800400

CLEVIS, .38-24 ADJ.

$11.99

$

In Stock, only 1 left!

0
