988316 (HR1536FXPCE) - Ariens 36" Walk-Behind Mower, 15hp Kawasaki, Hydro (SN: 000101 - 002499) Electrical System - Hydro Parts Diagram

36" Walk-Behind Mower, 15hp Kawasaki, Hydro

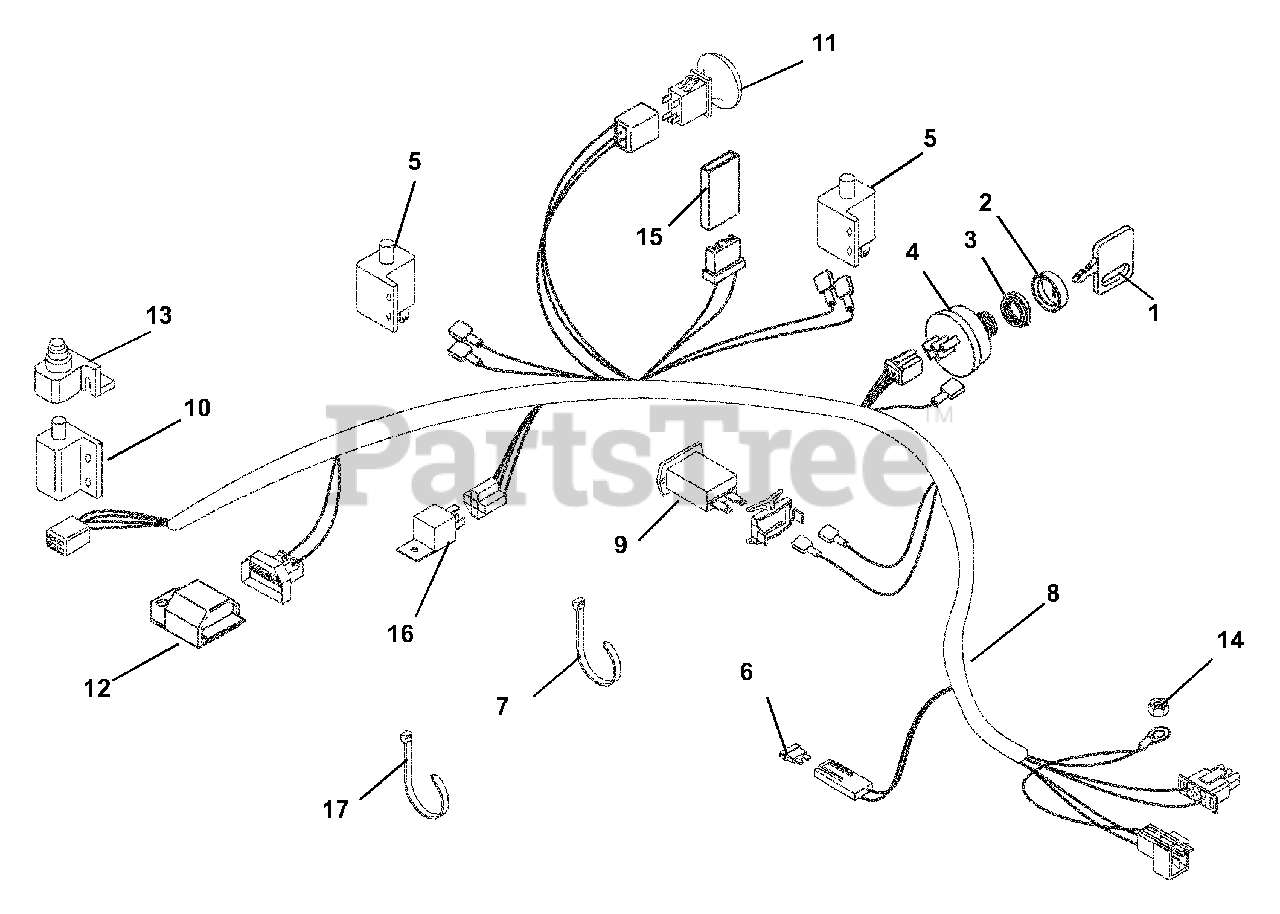

Electrical System - Hydro Parts Diagram

  • Title

1

Ariens 02460700

KEY -W/CAP

$10.99

$

In Stock, Qty 20+

0

2

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

In Stock, Qty 16

0

3

Nut, Panel .562-24

$

$

Not available

4

Ariens 03602300

KEY SWITCH

$26.99

$

In Stock, Qty 17

0

5

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 3 left!

0

6

Ariens 09351100

FUSE-25 AMP ATC TYPE
(Superseded to 08961800)

$3.99

$

In Stock, only 3 left!

0

7

Ariens 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

8

Ariens 03287800

HARNESS-WIRE HYDRO RECOIL-ERGO

$

$

Not available

9

Ariens 04935700

HOURMETER-QUARTZ 80VDCMAX
(Superseded to 59208200)

$63.99

$

Usually ships in 4-12 days

0

10

Ariens 08828100

SWITCH,INTERLOCK

$21.99

$

In Stock, Qty 5

0

11

Ariens 04940800

SWITCH - PTO - NMIR

$

$

Not available

12

Ariens 08885700

MODULE,INTERLOCK,RECOIL, 1201

$89.99

$

In Stock, only 4 left!

0

13

Ariens 07534400

BOOT, RUBBER

$6.49

$

Usually ships in 4-12 days

0

14

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$13.99

$

In Stock, Qty 9

0

16

Ariens 03042800

RELAY
(Superseded to 00432101)

$25.99

$

In Stock, Qty 15

0

17

Ariens 04003800

TIE WRAP

$

$

Not available
