988317 (HR 15 P) - Gravely Pro-Hydro Walk-Behind Mower Power Unit, Pro-Steer, 15hp Kawasaki (SN: 000101 & Above) Engine, Fuel And Exhaust System Parts Diagram

Pro-Hydro Walk-Behind Mower Power Unit, Pro-Steer, 15hp Kawasaki

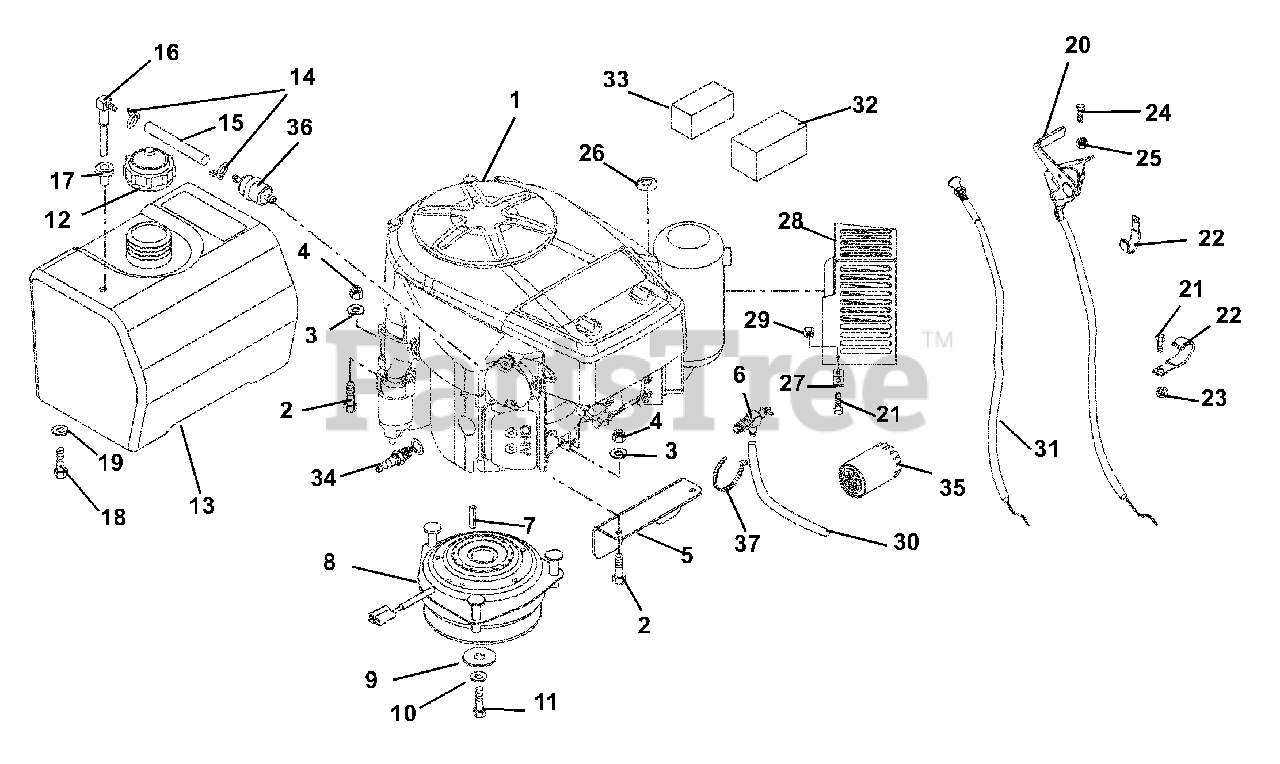

Engine, Fuel And Exhaust System Parts Diagram

  • Title

1

Gravely 08266800

Engine, 15 HP Kawasaki

$

$

Not available

2

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

3

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 14

0

5

Gravely 04923551

Bracket, Clutch
(Superseded to 03292451)

$31.99

$

Usually ships in 4-12 days

0

6

Gravely 04923600

Valve, Oil Drain

$52.99

$

In Stock, only 1 left!

0

7

Gravely 06603400

Key, Square .25 x 1.25 x 25 SAE 8630 OR SAE 1035

$3.99

$

In Stock, only 1 left!

0

8

Gravely 04915400

Clutch, Electric

$452.99

$

In Stock, only 1 left!

0

9

Gravely 06443600

Washer, Flat Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, Qty 17

0

10

Gravely 06309300

Washer, Locking .44 x .109 Regular
(Superseded to 06300121)

$2.99

$

In Stock, only 1 left!

0

11

Gravely 05965700

Bolt, Hex .44-20 x 3.00 Grade 5
(Superseded to 05900037)

$6.99

$

In Stock, only 1 left!

0

12

Gravely 00273700

Cap, Fuel
(Superseded to 03859100)

$28.99

$

In Stock, only 1 left!

0

13

Gravely 04914000

Tank, Fuel

$

$

Not available

14

Gravely 06939100

Clamp, Hose Wire .49/.51 x .116

$3.99

$

In Stock, Qty 20+

0

15

Gravely 021134

Gas Line, Bulk .25 I.D.
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 09112300

Fitting, Tank
(Superseded to 03875300)

$14.99

$

In Stock, Qty 9

0

17

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 10

0

18

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

Usually ships in 4-12 days

0

19

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 15

0

20

Gravely 06949100

Cable, Throttle with Liner

$70.99

$

In Stock, Qty 5

0

21

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 8

0

22

Gravely 044715

J-Clamp
(Superseded to 06916000)

$2.49

$

Usually ships in 4-12 days

0

23

Gravely 06530200

Nut, Locking Nylon .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

24

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, only 3 left!

0

25

Gravely 06536000

Nut, Locking Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 8

0

26

Gravely 06439100

Washer, Flat Steel .38 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

27

Gravely 04935951

Bracket, Muffler Guard

$

$

Not available

28

Gravely 04935651

Guard, Muffler

$

$

Not available

29

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 01590900

Tube, Oil Drain

$5.99

$

Usually ships in 4-12 days

0

31

Gravely 035137

Control, Choke
(Superseded to 06924800)

$39.99

$

Usually ships in 4-12 days

0

32

Gravely 21538000

Filter, Air Paper

$18.99

$

In Stock, Qty 7

0

33

Gravely 21538100

Filter, Air Foam

$7.49

$

In Stock, Qty 6

0

34

Gravely 21533600

Spark Plug

$4.99

$

In Stock, Qty 20+

0

35

Gravely 21535800

Filter, Oil
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

36

Gravely 21538400

Filter, Fuel - Kawasaki
(Superseded to 21573800)

$12.99

$

In Stock, only 2 left!

0

37

Gravely 07517300

Cable Tie Large 5.5"

$

$

Not available
