988317 (HR 15 P) - Gravely Pro-Hydro Walk-Behind Mower Power Unit, Pro-Steer, 15hp Kawasaki (SN: 000101 & Above) Frame And Handlebars Parts Diagram

Pro-Hydro Walk-Behind Mower Power Unit, Pro-Steer, 15hp Kawasaki

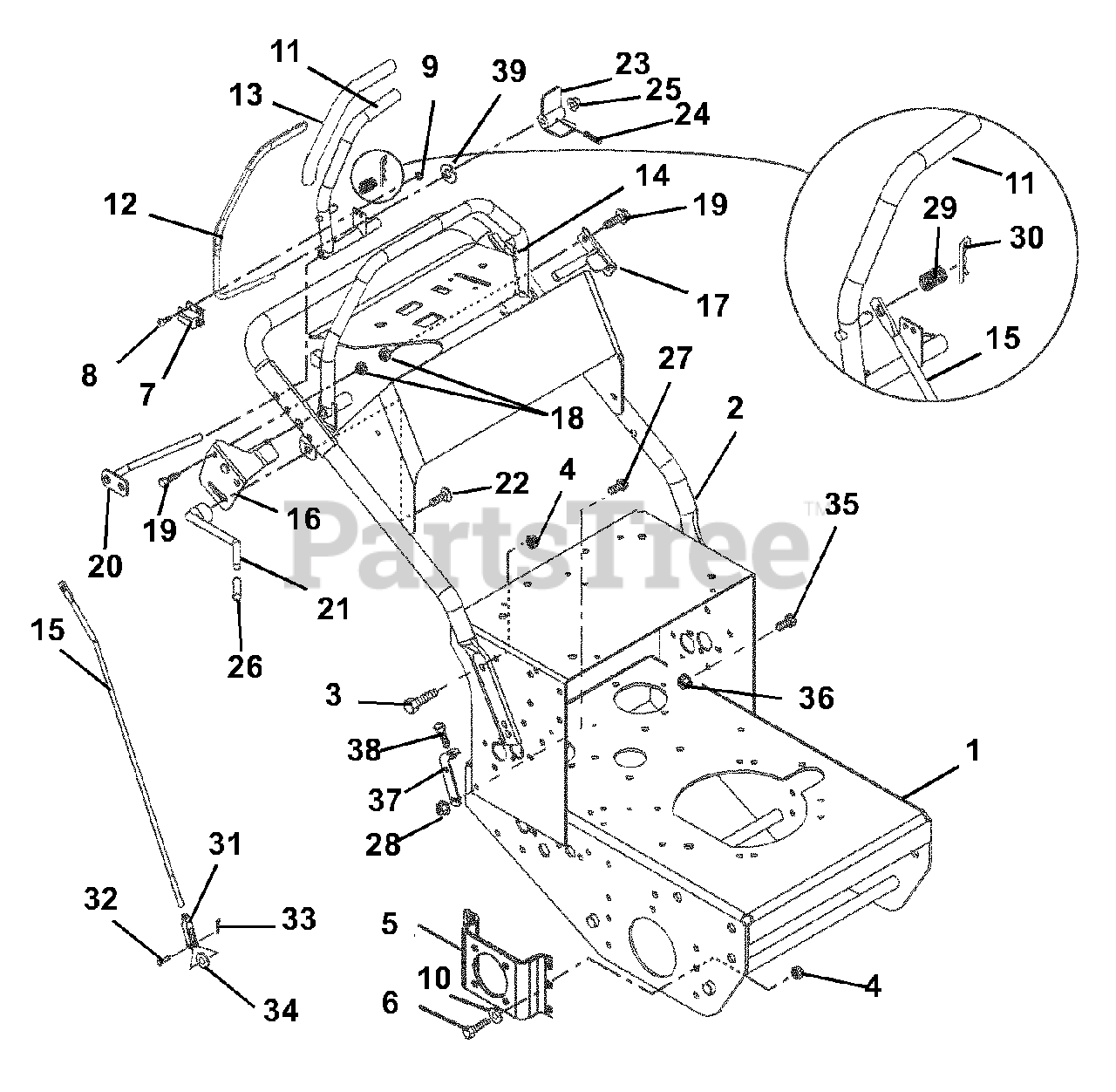

Frame And Handlebars Parts Diagram

  • Title

1

Gravely 58804200

Kit, Frame with Decals

$

$

Not available

2

Gravely 58806400

Kit, Handlebar with Decals HR15-Pro Steer

$

$

Not available

3

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06535800

Nut, Locking Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 14

0

5

Gravely 04926100

Bracket, Wheel Motor Left Hand

$

$

Not available

5

Gravely 04931300

Bracket, Wheel Motor Right Hand

$

$

Not available

6

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 03606600

Switch, Double Pole

$15.99

$

In Stock, Qty 5

0

8

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 5

0

9

Gravely 06536000

Nut, Locking Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, only 1 left!

0

10

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 04942851

Weldment, Lever-Right Hand Speed Control

$

$

Not available

11

Gravely 04942951

Weldment, Lever-Left Hand Speed Control

$

$

Not available

12

Gravely 04944100

Lever, Operator Presence

$47.99

$

Usually ships in 4-12 days

0

13

Gravely 07534500

Grip, Handlebar

$27.99

$

In Stock, only 2 left!

0

14

Gravely 04937951

Weldment, Speed Control Stop (Serial # 101-2999)
(Superseded to 04944951)

Note: (Serial # 101-2999)

$256.99

$

Usually ships in 4-12 days

0

14

Gravely 04944951

Weldment, Speed Control Stop (Serial # 3000 and up)

Note: (Serial # 3000 and up)

$256.99

$

Usually ships in 4-12 days

0

15

Gravely 04942100

Rod, Steering

$43.99

$

In Stock, only 2 left!

0

16

Gravely 04938000

Weldment, Control Stop Limiter-Right Hand (Serial # 101-2999)

Note: (Serial # 101-2999)

$41.99

$

Usually ships in 4-12 days

0

16

Gravely 04944800

Weldment, Control Stop Limiter-Right Hand (Serial # 3000 and up)

Note: (Serial # 3000 and up)

$21.99

$

Usually ships in 4-12 days

0

17

Gravely 04938300

Weldment, Control Stop Limiter-Left Hand

$

$

Not available

18

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

20

Gravely 04943200

Weldment, Speed Control Pivot- Right Hand

$

$

Not available

20

Gravely 04943300

Weldment, Speed Control Pivot- Left Hand

$

$

Not available

21

Gravely 04938600

Lever, Control Stop Lock (Serial # 101-2999)

Note: (Serial # 101-2999)

$103.99

$

Usually ships in 4-12 days

0

21

Gravely 04944700

Lever, Control Stop Lock (Serial # 3000 and up)

Note: (Serial # 3000 and up)

$34.99

$

Usually ships in 4-12 days

0

22

Gravely 06214100

Bolt, Round Head Square Neck .31-18 x .75 Grade 2 (Serial # 101-2999)
(Superseded to 06200309)

Note: (Serial # 101-2999)

$2.49

$

In Stock, Qty 9

0

22

Gravely 06223900

Bolt, Round Head Square Neck .38-16 x .75 Grade 5 (Serial # 3000 and up)
(Superseded to 06200312)

Note: (Serial # 3000 and up)

$1.49

$

In Stock, only 3 left!

0

23

Gravely 04936900

Actuator, Switch

$58.99

$

Usually ships in 4-12 days

0

24

Gravely 05803400

Pin, Roll .125 x .75

$0.99

$

In Stock, Qty 9

0

25

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 11

0

26

Gravely 07528300

Grip, Hand Clutch Lever

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

28

Gravely 06542000

Nut, Locking Flange .375-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 18

0

29

Gravely 043193

Spring, Compression .045 x .60 x .75
(Superseded to 08338800)

$6.99

$

In Stock, only 3 left!

0

30

Gravely 06713500

Pin, Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 11

0

31

Gravely 00513800

Yoke, .312-24 x 2.25

$29.99

$

Usually ships in 4-12 days

0

32

Gravely 06814000

Pin, Clevis .31 x .937

$3.99

$

In Stock, only 1 left!

0

33

Gravely 06714800

Pin, Hair, Endries
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

34

Gravely 06439100

Washer, Flat Steel .38 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 1 left!

0

35

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, only 4 left!

0

36

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

37

Gravely 04942400

Weldment, Reverse Adjustment Bracket

$

$

Not available

38

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

39

Gravely 038843

Washer, Wave
