988317 (HR 15 P) - Gravely Pro-Hydro Walk-Behind Mower Power Unit, Pro-Steer, 15hp Kawasaki (SN: 000101 & Above) Hydraulics Parts Diagram

Pro-Hydro Walk-Behind Mower Power Unit, Pro-Steer, 15hp Kawasaki

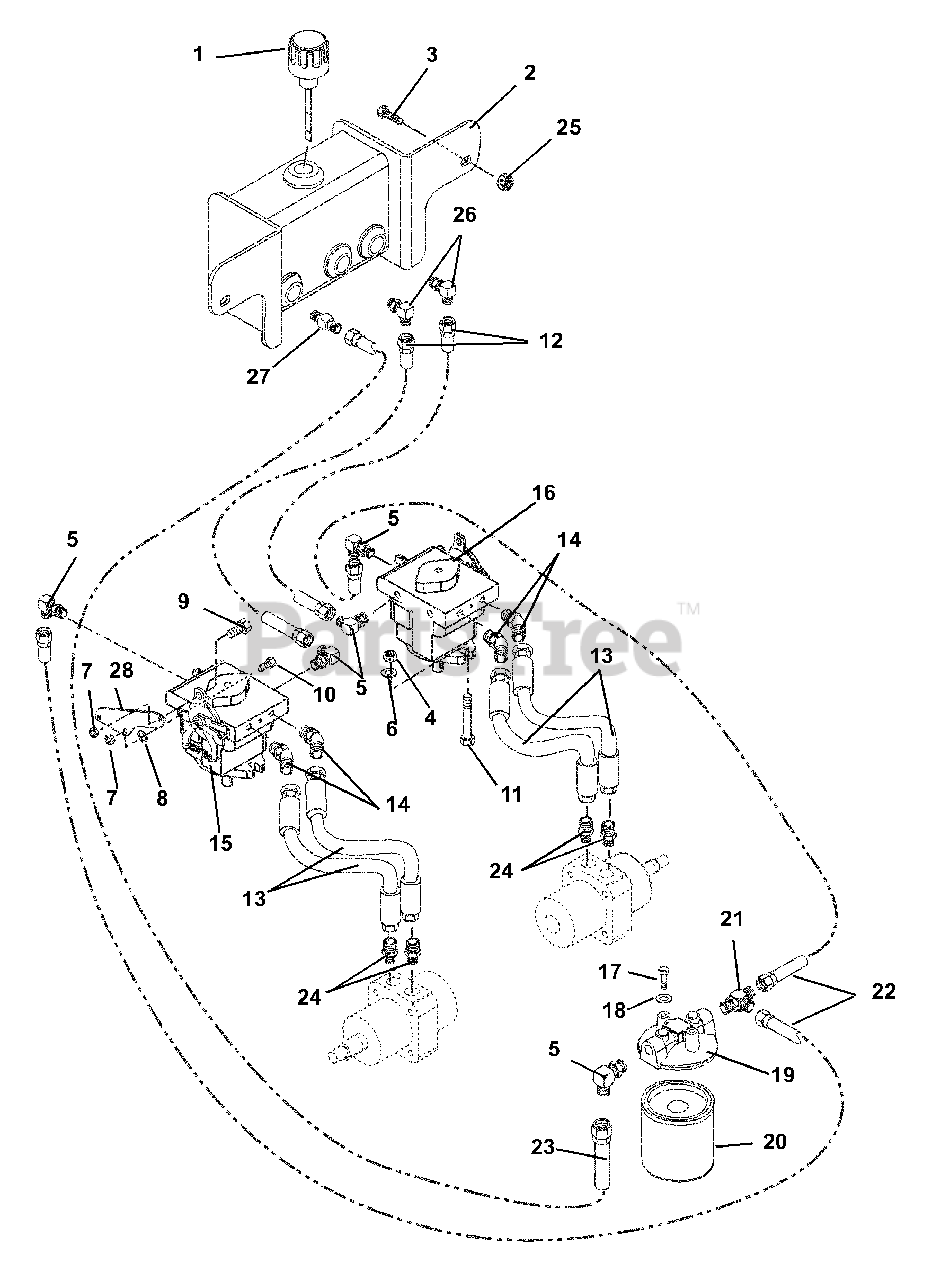

Hydraulics Parts Diagram

  • Title

1

Gravely 09273900

BREATHER, DIPSTICK

$89.99

$

In Stock, only 2 left!

0

2

Gravely 04941753

WMT - TANK - HYDRAULIC

$

$

Not available

3

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 039413

NUT-LK-NYL .44-14 YWZC
(Superseded to 06527500)

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 07063600

FITTING, HYD (6 C5OLO)

$36.99

$

Usually ships in 4-12 days

0

6

Gravely 06443800

WSHR,FL-STL.43X1.00X.160 ZC120

$4.99

$

In Stock, only 1 left!

0

7

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 05522100

BSHG-SLV .377X.624X.370

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 05947200

BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$2.49

$

In Stock, Qty 5

0

11

Gravely 05962800

BLT-HEX .44-14X1.50 GR5 YWZC
(Superseded to 05901633)

$3.99

$

In Stock, Qty 5

0

12

Gravely 04925500

HOSE HYD .37-10-0K F06F0-F06F0

$90.99

$

Usually ships in 4-12 days

0

13

Gravely 04925900

HOSE,HYD .5-22-2K F08F0-F08F0

$104.99

$

In Stock, only 3 left!

0

14

Gravely 07066200

FTG,HYD 45DEG M8F-M80

$64.99

$

Usually ships in 4-12 days

0

15

Gravely 00170400

PUMP, HYD. RH W/RTN

$779.99

$

Usually ships in 4-12 days

0

16

Gravely 00170500

PUMP, HYD. LH W/RTN

$779.99

$

Usually ships in 4-12 days

0

17

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 09072100

HEAD, FILTER

$64.99

$

In Stock, only 1 left!

0

20

Gravely 09246900

ELEMENT, FILTER BE-40-0

$29.99

$

In Stock, Qty 5

0

21

Gravely 07066100

FTG,HYD TEE M6F-M6F-M60

$

$

Not available

22

Gravely 04925600

HOSE,HYD .37-22-0K F06F0-F06F0

$

$

Not available

23

Gravely 04911500

HOSE HYD .37-13-0K F06F0-F06F9

$85.99

$

In Stock, only 1 left!

0

24

Gravely 07060000

ADPTR,FACE SEAL10X8 5/8 O-RING
(Superseded to 07062100)

$15.99

$

In Stock, only 2 left!

0

25

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.99

$

In Stock, Qty 20+

0

26

Gravely 07061600

FTG, HYD ELBOW M6F-M8O

$15.99

$

Usually ships in 4-12 days

0

27

Gravely 07061700

FTG, HYD STR M8O-M6F

$

$

Not available

28

Gravely 09282900

BRACKET, RTN/DAMPER

$8.49

$

Usually ships in 4-12 days

0
