988319 (HR1544FXPCE) - Ariens 44" Walk-Behind Mower, 15hp Kawasaki, Hydro (SN: 000101 & Above) Wheels Parts Diagram

44" Walk-Behind Mower, 15hp Kawasaki, Hydro

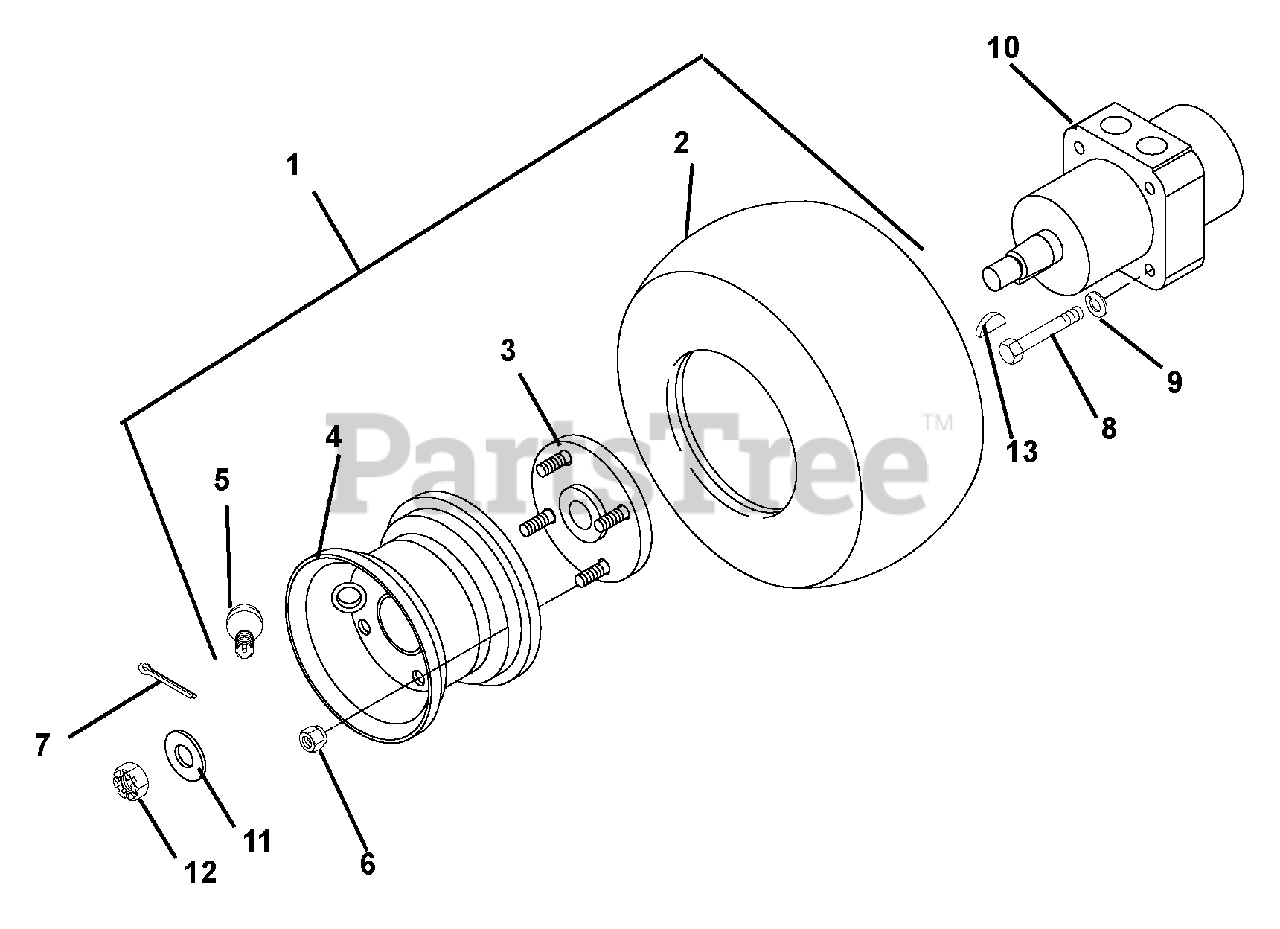

Wheels Parts Diagram

  • Title

1

Ariens 07157400

ASSY,WHL & TIRE 18X850
(Superseded to 07100301)

Note: (includes 2 through 6)

$

$

Not available

2

Ariens 07157900

TIRE, 18X850-8 4PLY
(Superseded to 07101220)

$125.99

$

Usually ships in 4-12 days

0

3

Ariens 07158000

ASSY, HUB W/STUDS
(Superseded to 07100309)

$

$

Not available

4

Ariens 07157800

ASSY, WHEEL

$116.99

$

Usually ships in 4-12 days

0

5

Ariens 07520000

VALVE STEM ASS'Y

$2.99

$

In Stock, only 4 left!

0

6

Ariens 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

7

Ariens 06712600

@PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$0.99

$

In Stock, Qty 12

0

8

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

9

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

10

Ariens 04915500

MOTOR, HYD WHEEL
(Superseded to 05015500)

$959.99

$

Usually ships in 4-12 days

0

11

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

12

Ariens 08846900

NUT,HEX 3/4-28 SLOTTED

$22.99

$

Usually ships in 4-12 days

0

13

Ariens 06608700

KEY-WDRF .19X.75 HRD #9

$1.49

$

In Stock, Qty 20+

0
