988320 (HE1748FLPCE) - Ariens 48" Walk-Behind Mower, 17hp Kawasaki, Hydro (SN: 000101 & Above) Engine, Fuel And Exhaust System Parts Diagram

48" Walk-Behind Mower, 17hp Kawasaki, Hydro

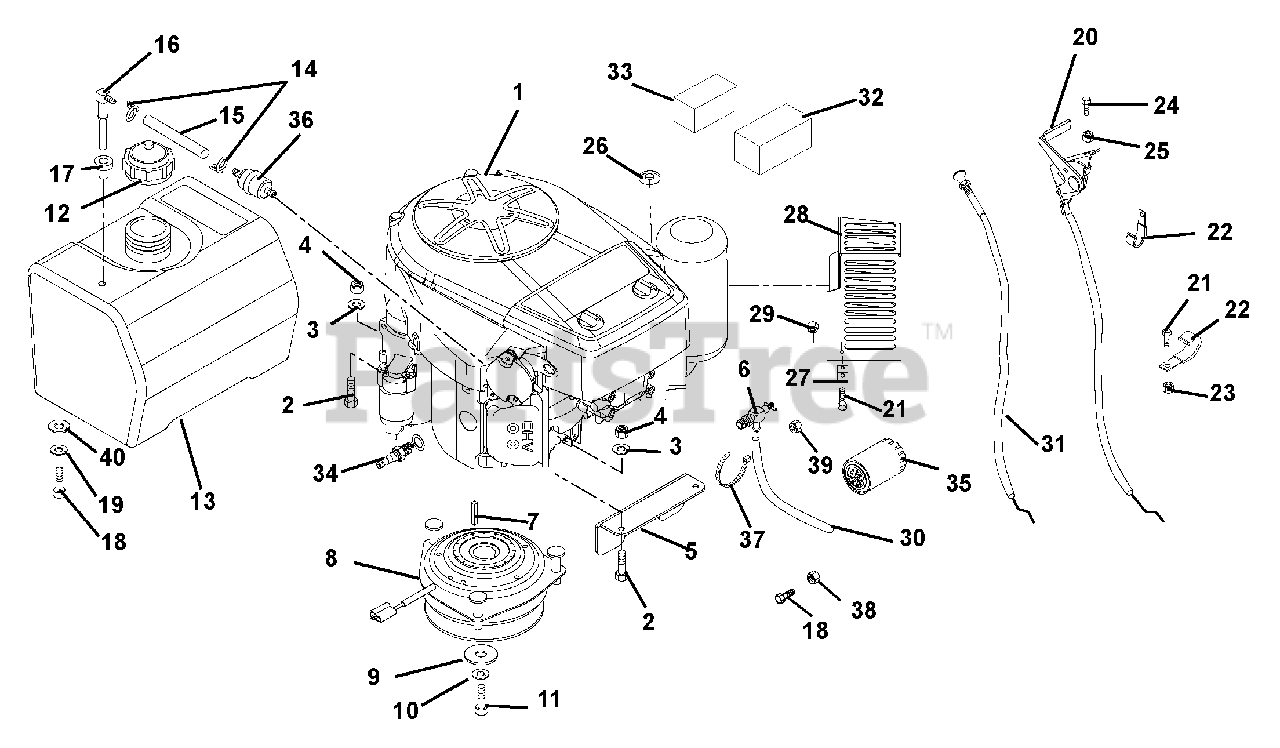

Engine, Fuel And Exhaust System Parts Diagram

  • Title

1

Ariens 08266900

ENGINE, 17 HP KAWASAKI FH500V

Note: (320)

$

$

Not available

Ariens 08266800

ENGINE, 15 HP KAWASAKI

Note: (316, 319)

$

$

Not available

Ariens 08266700

ENGINE, 13 HP KAWASAKI

Note: (315)

$

$

Not available

2

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 5

0

3

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

5

Ariens 04923551

BRACKET, CLUTCH
(Superseded to 03292451)

$32.99

$

Usually ships in 4-12 days

0

6

Ariens 04923600

VALVE, OIL DRAIN

$53.99

$

Usually ships in 4-12 days

0

7

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 7

0

8

Ariens 04915400

CLUTCH, ELECTRIC

$475.99

$

Usually ships in 4-12 days

0

9

Ariens 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

10

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

11

Ariens 05965700

BLT-HEX .44-20X3.00 GR5 YWZC
(Superseded to 05900037)

$7.49

$

In Stock, Qty 17

0

12

Ariens 00273700

CAP - FUEL
(Superseded to 03859100)

$29.99

$

In Stock, only 4 left!

0

13

Ariens 04943500

TANK - FUEL

$

$

Not available

14

Ariens 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 7

0

15

Ariens 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 09112300

FITTING, TANK
(Superseded to 03875300)

$15.99

$

In Stock, only 2 left!

0

17

Ariens 07511400

BSHG-FLG .375 X 1.062 X .625 R

Note: (Black in color. Does not replace or interchange with orange colored grommet.)

$3.99

$

In Stock, Qty 20+

0

Ariens 00387300

GROMMET, DAPCO VITON #12240

Note: (Orange in color. Does not replace or interchange with black colored bushing.)

$9.99

$

In Stock, Qty 13

0

18

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 10

0

19

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

20

Ariens 06949100

CABLE - THROTTLE W/LINER

$83.99

$

In Stock, only 3 left!

0

21

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

22

Ariens 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

23

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, only 4 left!

0

25

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, Qty 20+

0

27

Ariens 04935951

BRACKET, MUFFLER GUARD

$

$

Not available

28

Ariens 04935651

GUARD, MUFFLER

$

$

Not available

29

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

30

Ariens 01590900

TUBE, OIL DRAIN 8" CLEAR VINYL

$6.49

$

Usually ships in 4-12 days

0

31

Ariens 06924800

CONTROL,CHOKE

$

$

Not available

32

Ariens 21538000

AIR FLTR,PAPER KAWASAKI

Note: (315, 316, 319)

$18.99

$

In Stock, Qty 20+

0

Ariens 21538200

AIR FLTR,PAPER

Note: (320)

$21.99

$

In Stock, Qty 20+

0

33

Ariens 21538100

AIR FLTR,FOAM KAW

Note: (315, 316, 319)

$13.99

$

In Stock, Qty 20+

0

Ariens 21538300

FILTER, FOAM AIR PRE-

Note: (320)

$11.99

$

Usually ships in 4-12 days

0

34

Ariens 21533600

PLUG, SPARK

$4.99

$

In Stock, Qty 20+

0

35

Ariens 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

36

Ariens 21538400

FUEL FILTER - KAWASAKI
(Superseded to 21573800)

$15.99

$

Usually ships in 4-12 days

0

37

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

38

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

40

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0
