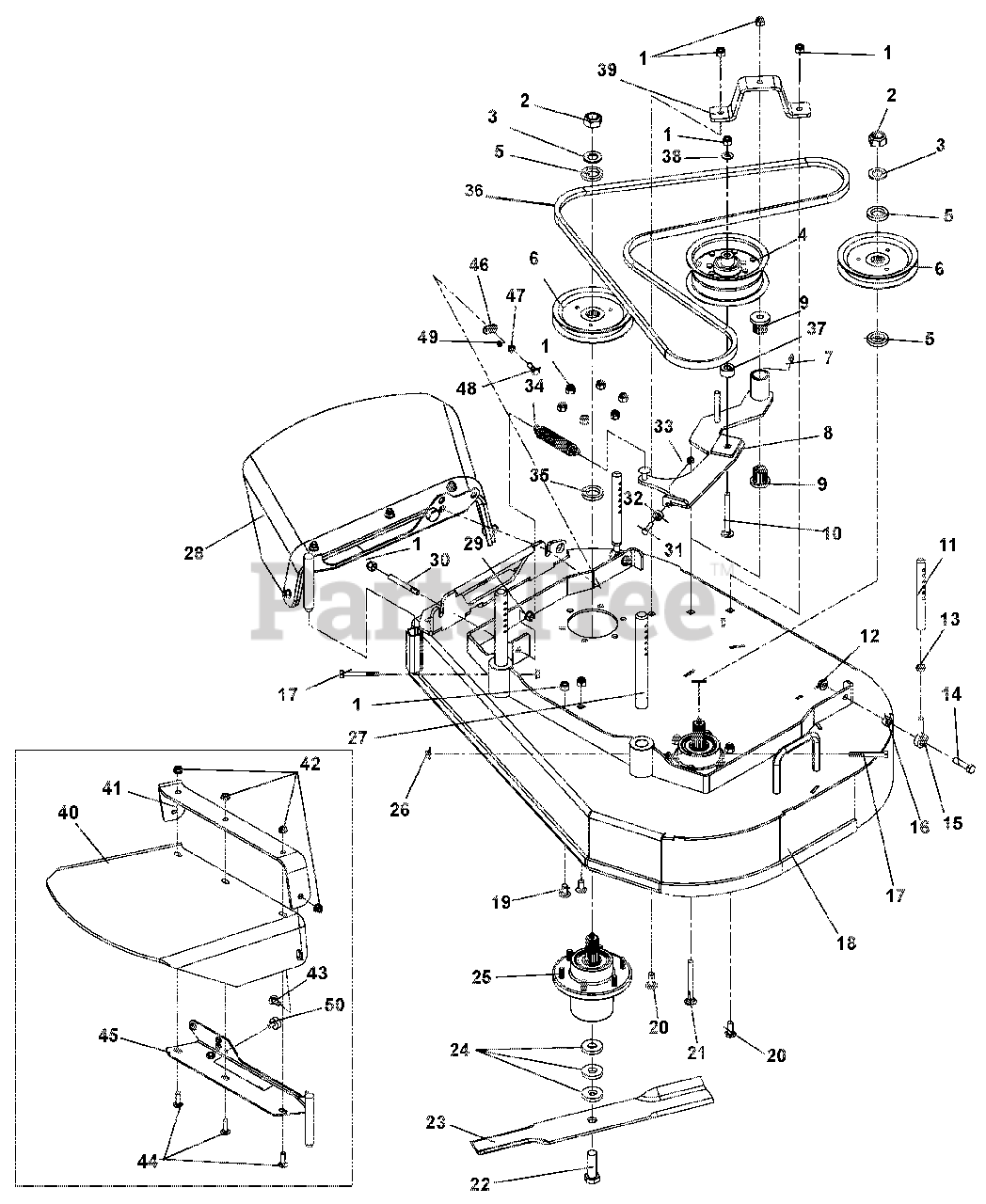

988323 (36 HR) - Gravely Pro-Hydro 36" Walk-Behind Mower, Pistol Grip, Recoil (SN: 000101 & Above) 36" Deck Assembly Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, Pistol Grip, Recoil

36" Deck Assembly Parts Diagram

  • Title

1

Gravely 06535800

NUT-LK-NYL .38-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

2

Gravely 06500709

LOCKNUT, 3/4-16 CROWN GR 5
(Superseded to 06500836)

$7.49

$

In Stock, only 1 left!

0

3

Gravely 03399703

WASHER, .75 X 1.3125 X .113
(Superseded to 06401037)

$2.49

$

In Stock, Qty 10

0

4

Gravely 07300532

PULLEY, FLAT 5.00 X 2.36 X .375

$77.99

$

In Stock, only 1 left!

0

5

Gravely 06425600

WSHR, FL-STL 1.0 X 1.5 X .25

$6.49

$

In Stock, Qty 11

0

6

Gravely 07300531

PULLEY, SPLINE SPINDLE SHFLWLK

$70.99

$

In Stock, only 4 left!

0

7

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 03929251

WLDT, IDLER ARM 36

$54.99

$

In Stock, only 1 left!

0

9

Gravely TCU14540

BRG, FLG M10 X M25 X M27 FLUTED

$18.99

$

In Stock, only 3 left!

0

10

Gravely 06222400

BOLT, RDHDSQNK .38-16X3.50 GR5Y
(Superseded to 06200302)

$9.99

$

In Stock, Qty 11

0

11

Gravely 03841021

ROD, REAR HOC

$35.99

$

Usually ships in 4-12 days

0

12

Gravely 06542000

NUT, LK TOP FLG .375-16 YWZC REV
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06534700

NUT, JAM .375-24 YWZC REV
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

14

Gravely 05957900

BOLT, HEX .38-16 X 1.50 GR5
(Superseded to 05901928)

$1.99

$

In Stock, Qty 9

0

15

Gravely 08790600

ROD, END 3/8 RH REV

$60.99

$

Usually ships in 4-12 days

0

16

Gravely 05522100

BSHG - SLV REV

$5.49

$

Usually ships in 4-12 days

0

17

Gravely 05984900

BOLT, 5/16-18X2.50 HEX 8
(Superseded to 05901717)

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 58809701

ASSY, 36" FLWLK DECK W/DECALS

$

$

Not available

19

Gravely 06200004

BOLT, RDHDSHSQNK .38-16 X .75 G5
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

20

Gravely 06223600

BOLT, RDHDSQNK .38-16X1.00 G5
(Superseded to 06200313)

$2.99

$

In Stock, only 4 left!

0

21

Gravely 06222400

BOLT, RDHDSQNK .38-16X3.50 GR5
(Superseded to 06200302)

$9.99

$

In Stock, Qty 11

0

22

Gravely 05970002

BLT-HEX .62-11X 2.00 GR8 YWZC
(Superseded to 05901725)

$6.49

$

In Stock, only 2 left!

0

23

Gravely GDU10231

BLADE, 18"

$31.99

$

In Stock, Qty 16

0

24

Gravely 06400913

WASHER, FLAT-STEEL .630 x 1.50 x .25
(Superseded to 06401033)

$7.49

$

In Stock, only 4 left!

0

25

Gravely 00200262

ASSY, SPINDLE HOUSING

$294.99

$

In Stock, only 1 left!

0

26

Gravely 06530400

NUT-SPNLK-FLG .312-18
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 04197700

PIN, HOC

$43.99

$

Usually ships in 4-12 days

0

28

Gravely 56155053

ASSY, DISCHARGE SHIELD

$203.99

$

In Stock, only 1 left!

0

29

Gravely 06534900

NUT-SPNLK-FLG .375-16
(Superseded to 06500735)

$1.99

$

In Stock, Qty 12

0

30

Gravely 00104024

ROD, THREADED ADJUSTMENT

$25.99

$

Usually ships in 4-12 days

0

31

Gravely 05947700

BOLT, HEX .25-20 X 1.00 GR5
(Superseded to 05901639)

$1.99

$

In Stock, Qty 8

0

32

Gravely 00191185

BRG, BAL .250 X .688 X .313

$10.99

$

Usually ships in 4-12 days

0

33

Gravely 06531000

NUT-LK-NYL .250-20
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

34

Gravely 00110580

SPRING, EXT .875 X .125 X 4.25 Y

$17.99

$

In Stock, only 2 left!

0

35

Gravely D13024

SPACER, 1.500 X 1.000 X .510 Y

$14.99

$

In Stock, only 2 left!

0

36

Gravely 07200518

BELT, HB 85.1 EL AMD

$80.99

$

In Stock, only 1 left!

0

37

Gravely 03846217

SPACER, .437 X 1.00 X .58 SMLS

$10.99

$

In Stock, Qty 7

0

38

Gravely 06436200

WASHER, .406 X .813 X .065 FLAT Y
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 03854451

STRAP, IDLER 36

$14.99

$

Usually ships in 4-12 days

0

40

Gravely 04044200

SHIELD, WALK RUBBER DISCHARGE

$70.99

$

Usually ships in 4-12 days

0

41

Gravely 03983853

STRAP, GRAVELY WLK RUBBER DIS

$63.99

$

Usually ships in 4-12 days

0

42

Gravely 06534900

NUT, SPNLK-FLG .375-16
(Superseded to 06500735)

$1.99

$

In Stock, Qty 12

0

43

Gravely 06223600

BOLT, RDHDSQNK .38-16 X 1.00 G5
(Superseded to 06200313)

$2.99

$

In Stock, only 4 left!

0

44

Gravely 06224100

BOLT, RDHDSQNK .38-16 X 1.25 G5
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

45

Gravely 03981953

WLDT. DISCHARGE

$90.99

$

Usually ships in 4-12 days

0

46

Gravely 04183000

KEEPER, BOLT

$7.49

$

Usually ships in 4-12 days

0

47

Gravely 06308700

WSHR-LK-EXT.391X.628X.036YWZC

$2.49

$

Usually ships in 4-12 days

0

48

Gravely 07001625

BLT,HEX.38-16X1.25 GR5 CAPTIVE

$14.99

$

Usually ships in 4-12 days

0

49

Gravely 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

50

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, only 3 left!

0
