988324 (48 HE) - Gravely Pro-Hydro 48" Walk-Behind Mower, Pistol Grip, Electric (SN: 000101 & Above) 48 & 52" Deck Assembly Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Pistol Grip, Electric

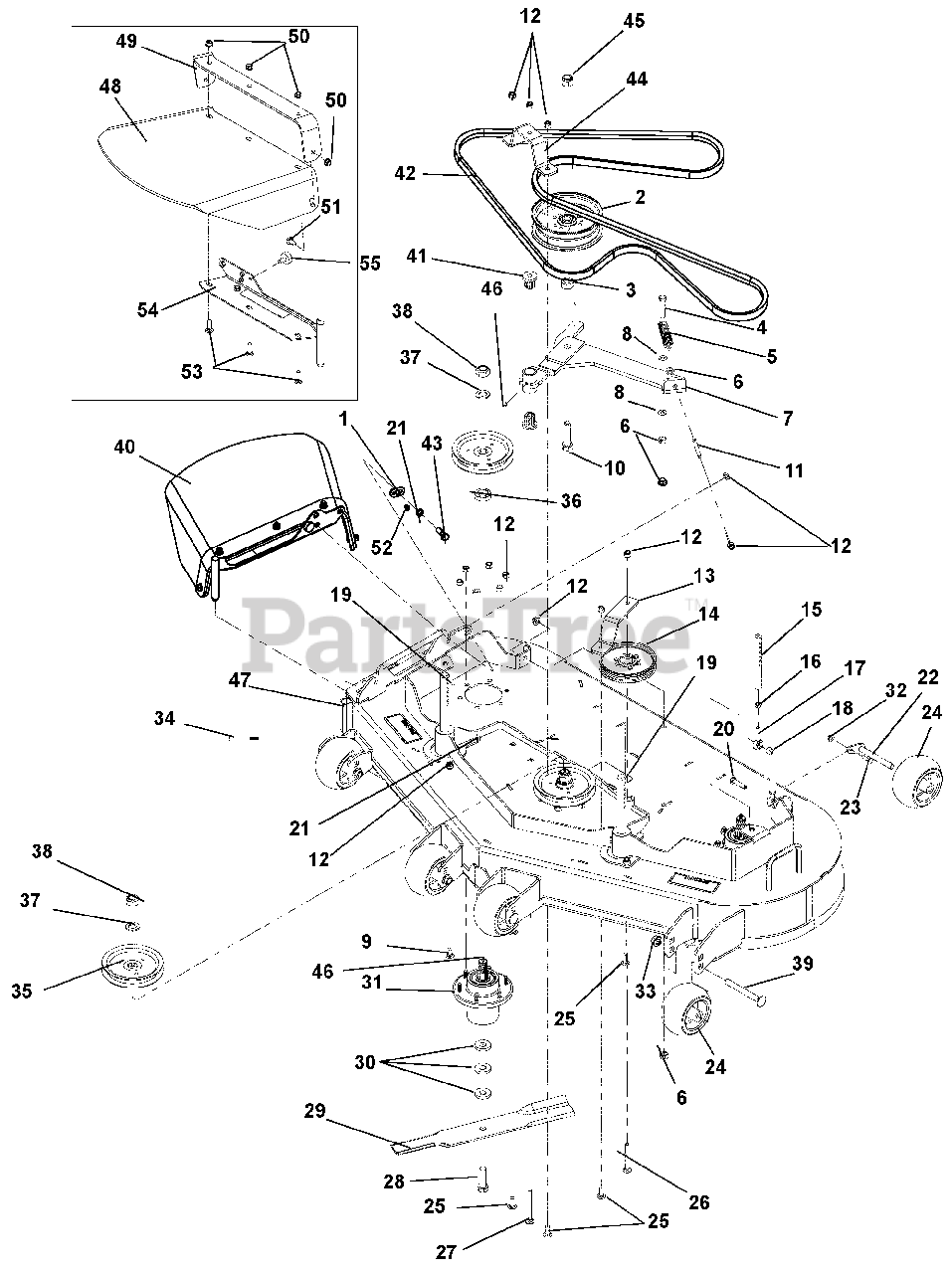

48 & 52" Deck Assembly Parts Diagram

  • Title

1

Gravely 04183000

KEEPER, BOLT

$7.49

$

Usually ships in 4-12 days

0

2

Gravely 04364653

PULLEY, FLAT 6.00 X .635 W/BRG (988325)

Note: (988325)

$

$

Not available

3

Gravely 03846235

BUSHING, .688 X 1.13 X .55 (988324)

Note: (988324)

$

$

Not available

4

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, only 3 left!

0

5

Gravely 00110580

SPRING, EXT .875 X .125 X 4.25 Y

$17.99

$

In Stock, only 2 left!

0

6

Gravely 06534900

NUT, SPNLK-FLG .375-16
(Superseded to 06500735)

$1.99

$

In Stock, Qty 17

0

7

Gravely 03860151

WLDT, IDLER ARM 48/52 FLOAT WALK

$190.99

$

Usually ships in 4-12 days

0

8

Gravely 06436200

WASHER, FL-STL .406 X .812 X .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06200004

BOLT, RDHDSHSQNK .38-16 X .75 G5
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 05969300

BOLT, HEX .62-11X2.50 GR5Y

$5.49

$

In Stock, only 2 left!

0

11

Gravely 00104024

ROD, THREADED ADJUSTMENT

$25.99

$

Usually ships in 4-12 days

0

12

Gravely 06535800

NUT-LK-NYL .38-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 03856451

STRAP, IDLER 52/48 WALK

$14.99

$

Usually ships in 4-12 days

0

14

Gravely D28050

PULLEY, FLAT 5.00X.375 W/BRG
(Superseded to 07352400)

$40.99

$

In Stock, Qty 20+

0

15

Gravely 03841021

ROD, REAR HOC

$35.99

$

Usually ships in 4-12 days

0

16

Gravely 06534700

NUT, JAM .375-24 YWZC REV
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

17

Gravely 08790600

ROD, END 3/8 RH REV

$60.99

$

Usually ships in 4-12 days

0

18

Gravely 05522100

BSHG - SLV REV

$5.49

$

Usually ships in 4-12 days

0

19

Gravely 04197700

PIN, HOC

$43.99

$

Usually ships in 4-12 days

0

20

Gravely 05957900

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 10

0

21

Gravely 06308700

WSHR-LK-EXT.391X.628X.036YWZC

$2.49

$

Usually ships in 4-12 days

0

22

Gravely GDA10103

PIVOT, RETAINER WELD

$56.99

$

In Stock, Qty 7

0

23

Gravely 06219800

BOLT, RDHDSQNK .25-20 X 1.00 G5
(Superseded to 06200402)

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

$13.99

$

In Stock, Qty 20+

0

25

Gravely 06223600

BOLT, RDHDSQNK .38-16 X 1.00 G5
(Superseded to 06200313)

$2.99

$

In Stock, only 4 left!

0

26

Gravely 06228100

BOLT, RDHD SQNK .38-16 X 3.0 GR5YZ REV
(Superseded to 06200418)

$4.99

$

In Stock, Qty 19

0

27

Gravely 06222400

BOLT, RDHDSQNK .38-16 X 3.50 GR5
(Superseded to 06200302)

$9.99

$

In Stock, Qty 11

0

28

Gravely 05970002

BOLT, .62-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$6.49

$

In Stock, only 2 left!

0

29

Gravely GDU10231

BLADE, 18.000 X .80 LIFT (988325)

Note: (988325)

$31.99

$

In Stock, Qty 16

0

29

Gravely GDU10230

BLADE, 16.500 X .80 LIFT (988324)

Note: (988324)

$29.99

$

In Stock, Qty 10

0

30

Gravely 06400913

WASHER, FL-STL .630 X 1.50 X .25
(Superseded to 06401033)

$7.49

$

In Stock, only 4 left!

0

31

Gravely 00200262

ASSY, SPINDLE S/O

$294.99

$

In Stock, only 1 left!

0

32

Gravely 06500012

NUT, LK-NYL-FLG .25-20
(Superseded to 06500813)

$1.99

$

In Stock, Qty 6

0

33

Gravely 06500010

NUT-LK-NYL-FLG .50-13
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 05984900

BOLT, 5/16-18 X 2.50 HEX 8
(Superseded to 05901717)

$3.49

$

Usually ships in 4-12 days

0

35

Gravely 07300531

PULLEY, SPLINE SPINDLE SHFLWLK

$70.99

$

In Stock, only 4 left!

0

36

Gravely D13024

SPACER, 1.500 X 1.000 X .510 Y

$14.99

$

In Stock, only 2 left!

0

37

Gravely 03399703

WASHER, .75 X 1.3125X .113
(Superseded to 06401037)

$2.49

$

In Stock, Qty 10

0

38

Gravely 06500709

LOCKNUT, 3/4-16 CROWN GR 5
(Superseded to 06500836)

$7.49

$

In Stock, only 1 left!

0

39

Gravely 06200132

BOLT, RDHDSQNK .50-13 X 4.50 G5
(Superseded to 06200505)

$

$

Not available

40

58826500

ASSY, DISCHARGE SHIELD

$

$

Not available

41

Gravely TCU14540

BRG, FLG M10 X M25 X M27 FLUTED

$18.99

$

In Stock, only 3 left!

0

42

Gravely 00181711

BELT, HB 131.0 EL AMD (988325)

Note: (988325)

$94.99

$

In Stock, only 2 left!

0

42

Gravely 07200519

BELT, HB 124.8 EL (988324)

Note: (988324)

$109.99

$

In Stock, Qty 20+

0

43

Gravely 07001625

BLT, HEX.38-16X1.25 GR5 CAPTIVE

$14.99

$

Usually ships in 4-12 days

0

44

Gravely 03854951

STRAP, IDLER 52 FLOAT WALK (988325)

Note: (988325)

$32.99

$

Usually ships in 4-12 days

0

44

Gravely 03842051

STRAP, IDLER 48 FLWLK (988324)

Note: (988324)

$28.99

$

Usually ships in 4-12 days

0

45

Gravely 06540700

NUT, LK-NYL .625-11 YWZC REV

$4.99

$

In Stock, Qty 20+

0

46

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

Usually ships in 4-12 days

0

47

Gravely 58809703

ASSY, 52" FLOAT DECK W/DECALS (988325)

Note: (988325)

$

$

Not available

47

Gravely 58809702

ASSY, 48" DECK W/ DECALS (988324)

Note: (988324)

$

$

Not available

48

Gravely 04044200

SHIELD, WALK RUBBER DISCHARGE

$70.99

$

Usually ships in 4-12 days

0

49

Gravely 03983853

STRAP, GRAVELY WLK RUBBER DIS

$63.99

$

Usually ships in 4-12 days

0

50

Gravely 06534900

NUT, SPNLK-FLG .375-16
(Superseded to 06500735)

$1.99

$

In Stock, Qty 17

0

51

Gravely 06223600

BOLT, RDHDSQNK .38-16 X 1.00 G5
(Superseded to 06200313)

$2.99

$

In Stock, only 4 left!

0

52

Gravely 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

53

Gravely 06224100

BOLT, RDHDSQNK .38-16 X 1.25 G5
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

54

Gravely 03981953

WLDT. DISCHARGE

$90.99

$

Usually ships in 4-12 days

0

55

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, only 3 left!

0
