988324 (48 HE) - Gravely Pro-Hydro 48" Walk-Behind Mower, Pistol Grip, Electric (SN: 000101 & Above) 48 & 52" Deck Assembly Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Pistol Grip, Electric

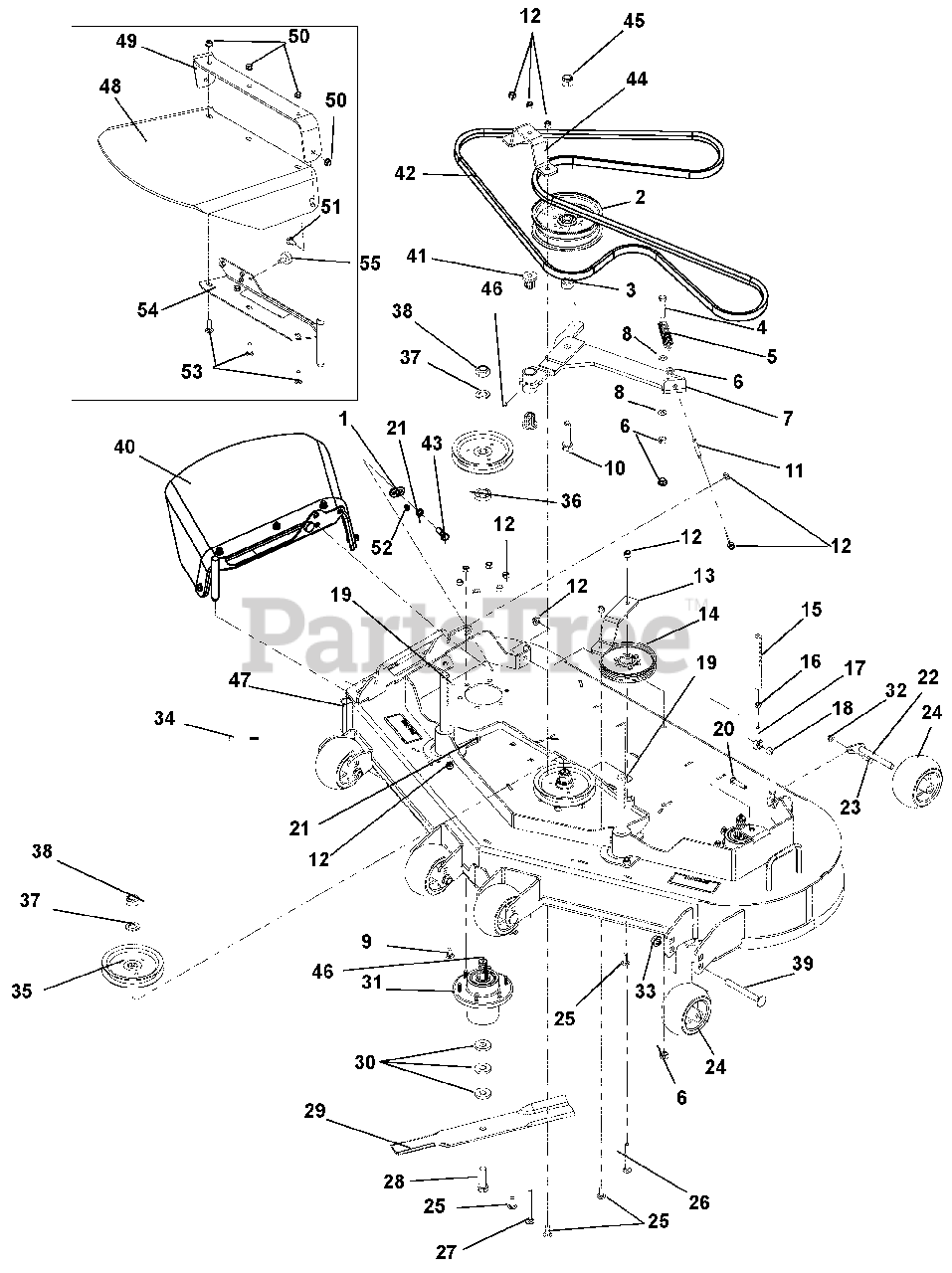

48 & 52" Deck Assembly Parts Diagram

  • Title

1

Gravely 04183000

KEEPER, BOLT

$7.49

$

Usually ships in 4-12 days

0

2

Gravely 04364653

GUARD, 48" DECK LH CE

Note: (988325)

$

$

Not available

3

Gravely 03846235

BUSHING, .688 X 1.13 X .55

Note: (988324)

$

$

Not available

4

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 00110580

SPRG, EXTENSION

$17.99

$

In Stock, only 2 left!

0

6

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 03860151

WLDT, IDLER ARM 52" FLOAT WALK

$190.99

$

Usually ships in 4-12 days

0

8

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06200004

BLT-RHDSSQNK .38-16X.75 G5YZ
(Superseded to 06200336)

$2.99

$

In Stock, Qty 15

0

10

Gravely 05969300

BLT-HEX .62-11X2.50 GR5 YWZC

$5.49

$

Usually ships in 4-12 days

0

11

Gravely 00104024

ROD, THREADED ADJUSTMENT

$25.99

$

Usually ships in 4-12 days

0

12

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 03856451

STRAP, IDLER 48/52 WALK

$14.99

$

Usually ships in 4-12 days

0

14

Gravely D28050

PULLEY, FLAT IDLER
(Superseded to 07352400)

$40.99

$

In Stock, Qty 20+

0

15

Gravely 03841021

ROD, REAR HOC

$35.99

$

Usually ships in 4-12 days

0

16

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 3 left!

0

17

Gravely 08790600

ROD END, 3/8 RH

$60.99

$

Usually ships in 4-12 days

0

18

Gravely 05522100

BSHG-SLV .377X.624X.370

$5.49

$

Usually ships in 4-12 days

0

19

Gravely 04197700

PIN, FRONT HOC

$43.99

$

Usually ships in 4-12 days

0

20

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

21

Gravely 06308700

WSHR-LK-EXT.391X.628X.036YWZC

$2.49

$

In Stock, only 2 left!

0

22

Gravely GDA10103

PIVOT, RETAINER WELD

$56.99

$

In Stock, Qty 7

0

23

Gravely 06219800

BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

24

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

$13.99

$

In Stock, Qty 20+

0

25

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

26

Gravely 06228100

BLT-RDHDSQNK .38-16X3.00 G5YZ
(Superseded to 06200418)

$4.99

$

In Stock, Qty 20+

0

27

Gravely 06222400

BLT-RDHDSQNK .38-16X3.50 G5YZ
(Superseded to 06200302)

$9.99

$

In Stock, Qty 9

0

28

Gravely 05970002

BLT-HEX .62-11X 2.00 GR8 YWZC
(Superseded to 05901725)

$6.49

$

In Stock, Qty 9

0

29

Gravely GDU10231

BLADE, 18.000 X .80 LIFT

Note: (988325)

$31.99

$

In Stock, Qty 20+

0

29

Gravely GDU10230

BLADE, 16.500 X .80 LIFT

Note: (988324)

$29.99

$

In Stock, Qty 8

0

30

Gravely 06400913

WSHR-FL-STL .630X1.50X.25 YWZC
(Superseded to 06401033)

$7.49

$

In Stock, Qty 13

0

31

Gravely 00200262

ASSY, SPINDLE S/O

$294.99

$

Usually ships in 4-12 days

0

32

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 05984900

BOLT, 5/16-18X2.50 HEX 8 YWZC
(Superseded to 05901717)

$3.49

$

Usually ships in 4-12 days

0

35

Gravely 07300531

PULLEY, SPLINE SPINDLE SHFLWLK

$70.99

$

In Stock, only 1 left!

0

36

Gravely D13024

SPACER, SPINDLE TOP-PULLEY

$14.99

$

In Stock, only 2 left!

0

37

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$2.49

$

In Stock, Qty 9

0

38

Gravely 06500709

LOCKNUT, 3/4-16 CROWN GR 5
(Superseded to 06500836)

$7.49

$

In Stock, only 1 left!

0

39

Gravely 06200132

BLT-RDHDSQNK .50-13X4.50 G5 Y
(Superseded to 06200505)

$

$

Not available

40

Gravely 68826500

ASSY,CE DISCHARGE SHIELD

$

$

Not available

41

Gravely TCU14540

BRG, FLG M10XM25XM27 FLUTED

$18.99

$

In Stock, Qty 6

0

42

Gravely 00181711

BELT, HB 131.0 EL AMD

Note: (988325)

$94.99

$

In Stock, only 2 left!

0

42

Gravely 07200519

BELT, HB

Note: (988324)

$109.99

$

In Stock, Qty 20+

0

43

Gravely 07001625

BLT,HEX.38-16X1.25 GR5 CAPTIVE

$14.99

$

Usually ships in 4-12 days

0

44

Gravely 03854951

STRAP, IDLER FLOAT WALK

Note: (988325)

$32.99

$

Usually ships in 4-12 days

0

44

Gravely 03842051

STRAP, IDLER 48 FLWLK

Note: (988324)

$28.99

$

Usually ships in 4-12 days

0

45

Gravely 06540700

NUT-LK-NYL .625-11 YWZC

$4.99

$

In Stock, Qty 20+

0

46

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

In Stock, only 2 left!

0

47

Gravely 58809703

ASSY, 52" FLWK DECK W/DECALS

Note: (988325)

$

$

Not available

47

Gravely 58809702

ASSY, 48" FLWK DECK W/DECALS

Note: (988324)

$

$

Not available

48

Gravely 04044200

SHIELD, WALK RUBBER DISCHARGE

$70.99

$

Usually ships in 4-12 days

0

49

Gravely 03983853

STRAP, GRAVELY WLK RUBBER DIS

$63.99

$

Usually ships in 4-12 days

0

50

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

51

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

52

Gravely 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, Qty 5

0

53

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

54

Gravely 03981953

WLDT. DISCHARGE

$90.99

$

Usually ships in 4-12 days

0

55

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, Qty 5

0
