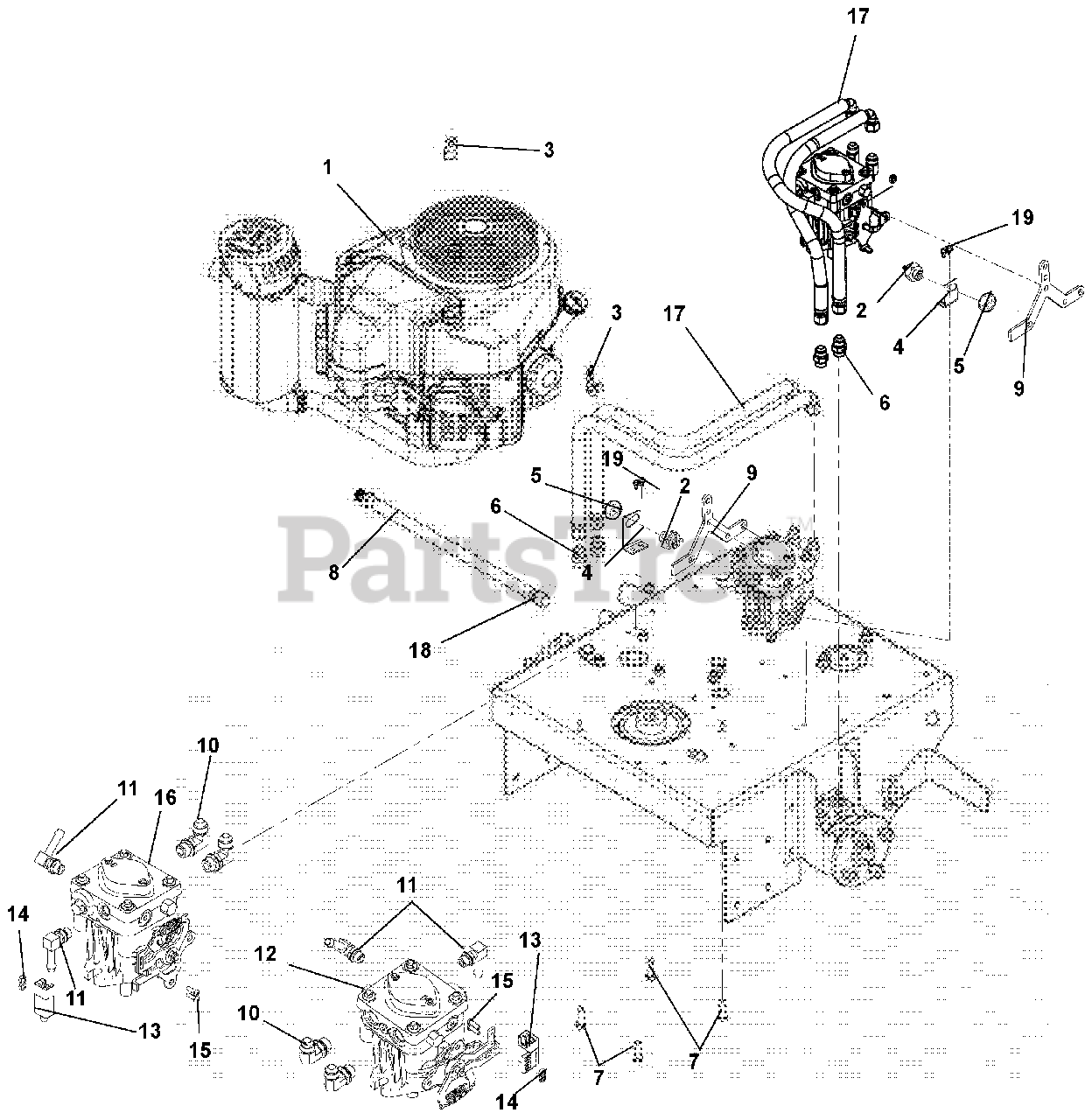

988324 (48 HE) - Gravely Pro-Hydro 48" Walk-Behind Mower, Pistol Grip, Electric (SN: 000101 & Above) Engine & Hydraulic Pumps Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Pistol Grip, Electric

Engine & Hydraulic Pumps Parts Diagram

  • Title

1

Gravely 08200613

ENGINE, KAWASAKI FS600

Note: (988324, 988325)

$

$

Not available

1

Gravely 08200612

ENGINE, KAWASAKI FS481

Note: (988323)

$

$

Not available

2

Gravely 02913100

SWITCH-NEUTRAL START N.O.

$48.99

$

In Stock, only 2 left!

0

3

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

Usually ships in 4-12 days

0

4

Gravely 04336951

BRKT, SWITCH MTG

$20.99

$

Usually ships in 4-12 days

0

5

Gravely 07015100

NUT-STAMPED .56-18

$4.99

$

Usually ships in 4-12 days

0

6

Gravely D14197

FITTING, STRAIGHT

$

$

Not available

7

Gravely 05901507

BLT-HEX.38-16X1.25FTHG5 EP80YZ

$3.49

$

In Stock, Qty 11

0

8

Gravely 04271700

DRAIN, M20 OIL

$36.99

$

Usually ships in 4-12 days

0

9

Gravely 04337051

BRKT, PUMP

$23.99

$

Usually ships in 4-12 days

0

10

Gravely D14196

FTG, 90 ADP JIC-ORB 6801-08-08

$6.99

$

Usually ships in 4-12 days

0

11

Gravely D24028

FTG, 90 9/16MOR X 3/8HOSE

$10.99

$

In Stock, Qty 6

0

12

Gravely 04269500

PUMP, LH HYD PE (10CC)

Note: (10cc)

$724.99

$

Usually ships in 4-12 days

0

13

Gravely 00191256

SWITCH, PLUNGER DP - N.O.-N.C.
(Superseded to 08828100)

$21.99

$

In Stock, only 2 left!

0

14

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.99

$

In Stock, only 4 left!

0

16

Gravely 04269600

PUMP, RH HYD PE (10CC)

Note: (10cc)

$724.99

$

Usually ships in 4-12 days

0

17

Gravely 00201091

HOSE, HYD 1/2 X 26 1/2 EZFLEX

$82.99

$

Usually ships in 4-12 days

0

18

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$14.99

$

In Stock, only 2 left!

0

19

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0
