988324 (48 HE) - Gravely Pro-Hydro 48" Walk-Behind Mower, Pistol Grip, Electric (SN: 000101 & Above) Pistol Grip Console & Controls Parts Diagram

Pro-Hydro 48" Walk-Behind Mower, Pistol Grip, Electric

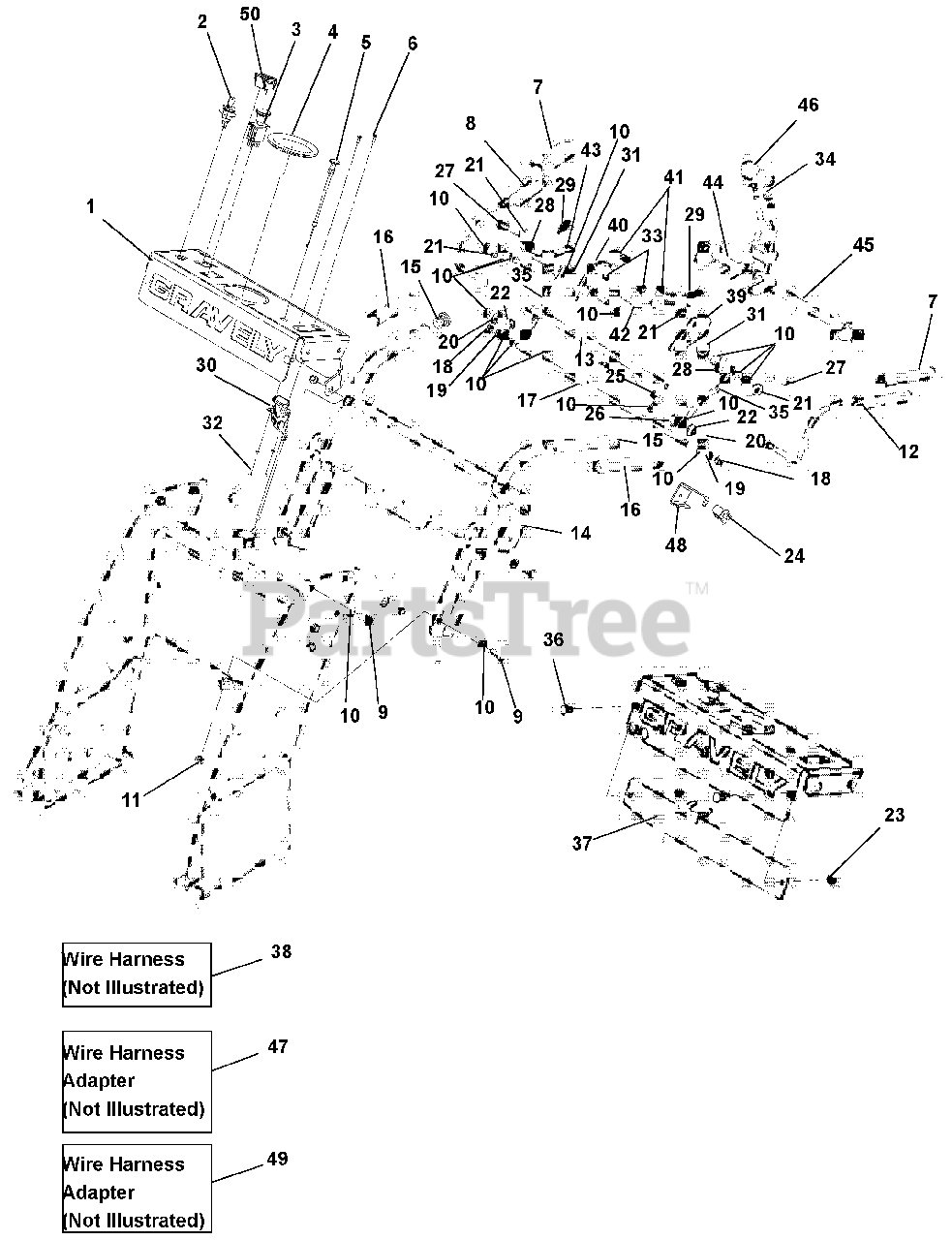

Pistol Grip Console & Controls Parts Diagram

  • Title

1

Gravely 58809704

ASSM, CE HYDRO CONSOLE

$

$

Not available

2

Gravely D18090

SWITCH, TWO POSITION KEY (988323)

Note: (988323)

$21.99

$

Usually ships in 4-12 days

0

2

Gravely 00180620

SWITCH, THREE POSITION KEY (988324, 325)

Note: (988324, 325)

$35.99

$

In Stock, only 4 left!

0

3

Gravely 04311800

SWITCH, CLUTCH w/GRAPHIC

$45.99

$

Usually ships in 4-12 days

0

4

Gravely 00170900

TRIM, RUBBER EDGE 12"

$12.24

$

Usually ships in 4-12 days

0

5

Gravely 00180273

CABLE, CHOKE 48"

$52.99

$

In Stock, only 1 left!

0

6

Gravely 06006023

SCR-PANHDSLT 8-32X.50 YWZC

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 00384500

GRIP, CLUTCH LEVER, LH AND RH

$2.49

$

In Stock, only 1 left!

0

8

Gravely 04214551

WMT-RH LEVER-OP
(Superseded to 78806400)

$206.99

$

In Stock, only 1 left!

0

9

Gravely 05948700

BOLT, HEX .38-16 X 1.00 GR5 Y
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06436200

WASHER, .406 X .813 X .065 FLAT Y
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06535800

LOCKNUT, .38-16 NYLOC Y
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

12

Gravely 04214651

WMT-LH LEVER-OP
(Superseded to 78806400)

$206.99

$

In Stock, only 1 left!

0

13

Gravely 04214451

WMT-PIVOT TUBE
(Superseded to 78806400)

$206.99

$

In Stock, only 1 left!

0

14

Gravely 58809700

CONSOLE, LOWER PG CE W/DECAL

$

$

Not available

15

Gravely 07533300

CAPLUG, HANDLEBAR

$2.49

$

In Stock, only 3 left!

0

16

Gravely 04928800

GRIP, HANDLEBAR

$9.99

$

In Stock, only 3 left!

0

17

Gravely 04926600

ROD, SPEED CONTROL

$34.99

$

Usually ships in 4-12 days

0

18

Gravely 06522900

NUT-HEX .375-24 YWZC GR2
(Superseded to 06500940)

$2.49

$

In Stock, only 1 left!

0

19

Gravely 06308800

WASHER-LOCK .38 X .094 REG
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

20

Gravely 06443300

WASHER-FLAT-NYL .52 X 1.00 X .08

$0.99

$

In Stock, Qty 19

0

21

Gravely 06444000

WASHER-FLAT-STL .406 X 1.00 X .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

22

Gravely 05501028

BUSHING-FLANG .385 X .500 X .875 X .31

$21.99

$

In Stock, only 1 left!

0

23

Gravely 06530200

NUT-LOCKING-NYLON .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

24

Gravely AM103119

SWITCH, SEAT OVER RIDE (N.O.)
(Superseded to 02754100)

Note: (N.O.)

$9.49

$

In Stock, Qty 20+

0

25

Gravely 07415800

SCREW-TAP 10-24 X .50 HWH
(Superseded to 07400130)

$2.49

$

In Stock, Qty 7

0

26

Gravely 03563100

ROD END, .38 RH

$15.99

$

In Stock, only 2 left!

0

27

Gravely 05963300

BOLT - HEX .38-16 X 2.00 GR5
(Superseded to 05901718)

$2.99

$

In Stock, Qty 14

0

28

Gravely 08338800

SPRING-COMPRESSION .045 X .600 X .750

$6.99

$

In Stock, only 4 left!

0

29

Gravely 08339300

SPRING-TENSION .041 X .500 X 1.750

$5.99

$

In Stock, only 2 left!

0

30

Gravely 00200413

CABLE, THROTTLE - 49.5
(Superseded to 06900714)

$34.99

$

In Stock, only 4 left!

0

31

Gravely 06441000

WASHER-FLAT-STEEL .50 X 1.25 X .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 16

0

32

Gravely 06531300

NUT-LK-NYL 8-32 W/INSTR YWZC

$1.99

$

Usually ships in 4-12 days

0

33

Gravely 06529600

NUT-LK-CTR .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06529400

NUT-HEX .38-16
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

35

Gravely 04926200

ROD, STEERING LINK

$41.99

$

Usually ships in 4-12 days

0

36

Gravely 06215700

BOLT-RDHDSQNK .31-18X.75 G5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

37

Gravely 04263353

BRACKET, REMOTE ROV HYDRO

$22.99

$

Usually ships in 4-12 days

0

38

Gravely 04039200

HARNESS, WIRE NON ELECTRIC PB WALK (NOT SHOWN) (988323)

Note: (NOT SHOWN) (988323)

$163.99

$

Usually ships in 4-12 days

0

38

Gravely 03983502

HARNESS, WIRE ELECTRIC START (NOT SHOWN) (988324, 325)

Note: (NOT SHOWN) (988324, 325)

$

$

Not available

39

Gravely 04220451

LATCH-LH THUMB

$15.99

$

Usually ships in 4-12 days

0

40

Gravely 04220351

LATCH-RH THUMB

$20.99

$

Usually ships in 4-12 days

0

41

Gravely 04928700

GRIP, THUMB LATCH

$3.99

$

Usually ships in 4-12 days

0

42

Gravely 04905200

LEVER, HAND CONTROL LH

$79.99

$

In Stock, only 1 left!

0

43

Gravely 09422400

LEVER, HAND CONTROL RH

$

$

Not available

44

Gravely 04926300

WELDMENT, RH LEVER

$201.99

$

Usually ships in 4-12 days

0

45

Gravely 04926400

WELDMENT, LH LEVER

$129.99

$

Usually ships in 4-12 days

0

46

Gravely 07533500

KNOB,BALL -BLACK 1.47" .375-16

$9.99

$

In Stock, only 4 left!

0

47

Gravely 04261100

ADAPTER-HARNESS-PRO WALK HYDRO (NOT SHOWN)

Note: (NOT SHOWN)

$35.99

$

Usually ships in 4-12 days

0

48

Gravely 04309051

BRKT, OPC SWITCH
(Superseded to 78806400)

$206.99

$

In Stock, only 1 left!

0

49

Gravely 04366300

HARNESS, NMIR ADAPTER CE

$53.94

$

Usually ships in 4-12 days

0

50

Gravely 04196510

METER, HOUR SMART SENSE W/O SV

$59.99

$

Usually ships in 4-12 days

0
