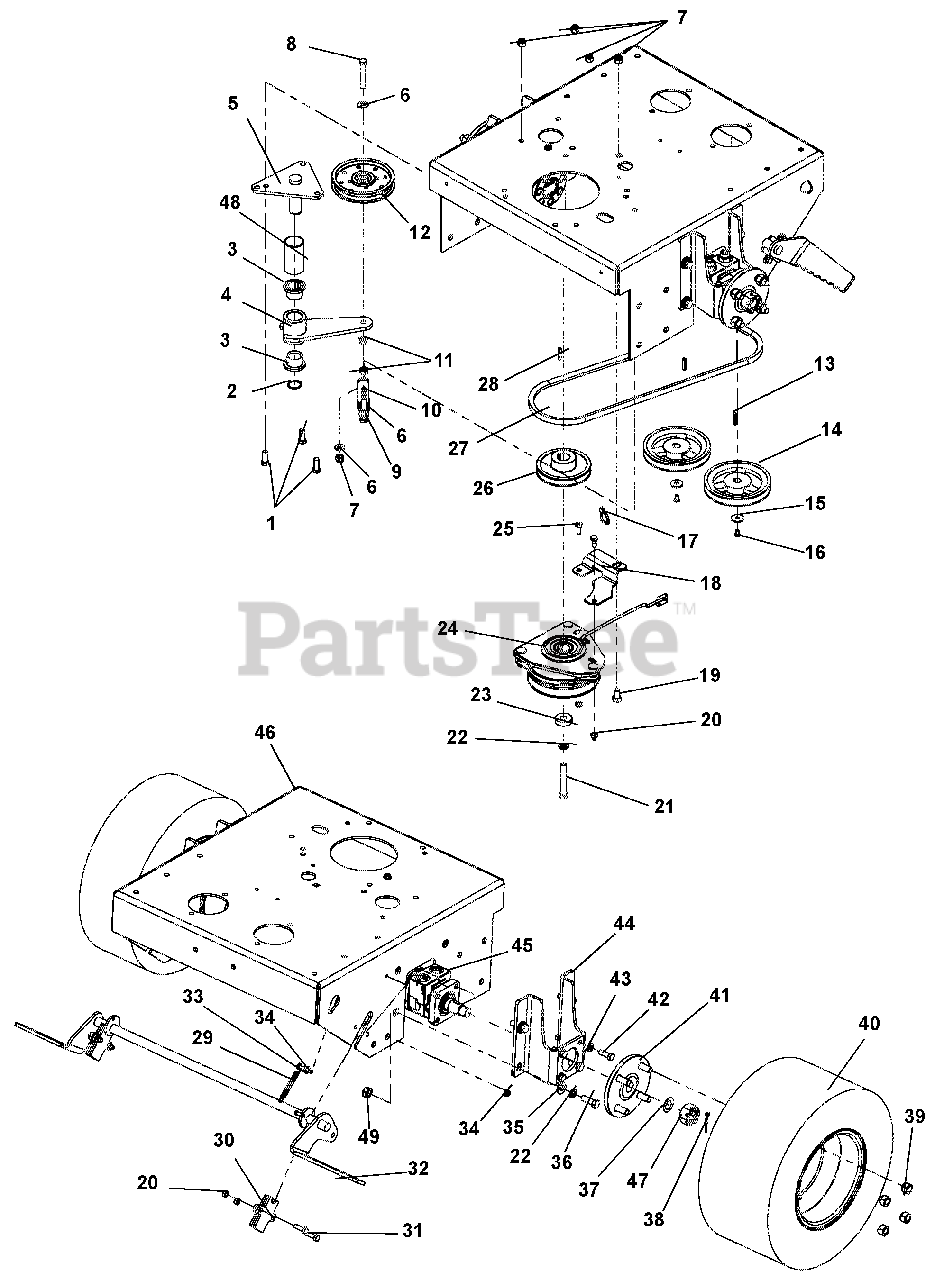

988325 (52 HE) - Gravely Pro-Hydro 52" Walk-Behind Mower, Pistol Grip, Electric (SN: 000101 & Above) PTO, Wheel Motors & Parking Brake Parts Diagram

Pro-Hydro 52" Walk-Behind Mower, Pistol Grip, Electric

PTO, Wheel Motors & Parking Brake Parts Diagram

  • Title

1

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 05700160

SNAP RING, 1.00 X .042 EXT

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 04366100

BRG, FLG 1.00 X 1.25 X 1.00

$17.99

$

In Stock, only 2 left!

0

4

Gravely D15032

WLDT, IDLER ARM

$34.99

$

Usually ships in 4-12 days

0

5

Gravely 00203918

WLDT, IDLER PIVOT MOUNT
(Superseded to 05180151)

$49.99

$

Usually ships in 4-12 days

0

6

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

8

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 05985200

BLT-HEX .38-16X3.00 HEX 8 YWZC
(Superseded to 05901816)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely D18071

SPRING, EXT .900X.135X4.50 Y

$11.99

$

Usually ships in 4-12 days

0

11

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

12

Gravely GDA10032

PULLEY, FLAT 4.50X.375 W/BRG

$44.99

$

Usually ships in 4-12 days

0

13

Gravely 00966058

KEY, M5 X M5 X M30 RD

$3.99

$

In Stock, only 1 left!

0

14

Gravely TCA15316

ASSY, PUMP PULLEY W/SET SCREW

$52.99

$

Usually ships in 4-12 days

0

15

Gravely D14160

WASHER, .250 WIDE HEAVY FLAT Y

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 00967041

BOLT, M6X1.00X10 HEX 8.8 Y

$

$

Not available

17

Gravely 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

18

Gravely 00203840

PLATE, CLUTCH DOG

$

$

Not available

19

Gravely 05900121

BLT-HEX .44-14X.75 GR5 YWZC
(Superseded to 05901920)

$2.99

$

Usually ships in 4-12 days

0

20

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

21

Gravely 05900037

BLT-HEX .44-20X3.00 G5 YZ EP80

$7.49

$

In Stock, Qty 14

0

22

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

23

Gravely D18056

SPACER, .468 X 1.38 X .375 Y

$22.99

$

Usually ships in 4-12 days

0

24

Gravely 00200665

CLUTCH ASSY, OGURA# GT1A-HU02

$284.99

$

In Stock, only 3 left!

0

25

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

26

Gravely D18085

PULLEY, V-BELT 4.45X1.00 W/KEY

$67.99

$

Usually ships in 4-12 days

0

27

Gravely D38006

BELT, HA 55.1 EL AMD OHR

$54.99

$

In Stock, only 2 left!

0

28

Gravely D18145

KEY, .250 X .250 X .995 TPR

$7.49

$

Usually ships in 4-12 days

0

29

Gravely 00135292

SPRING, EXT .375X.055X2.25 Y

$21.99

$

Usually ships in 4-12 days

0

30

Gravely 03885753

SHOE, FLWLK BRAKE SYS GRAVELY

$

$

Not available

31

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 03859951

WLDT, BRAKE SYS FLOAT HYDRO

Note: (988324, 325)

$

$

Not available

32

Gravely 03908351

WLDT, BRAKE SYS 36" FLWLK

Note: (988323)

$80.99

$

Usually ships in 4-12 days

0

33

Gravely 05947400

BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

Note: (SN 000101 - 020000)

$2.49

$

In Stock, only 2 left!

0

34

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

Note: (SN 000101 - 020000)

$1.49

$

In Stock, only 3 left!

0

35

Gravely 06400914

WSHR-FL-STL .468X1.00X.125 YZ

$

$

Not available

36

Gravely 05963800

BLT-HEX .44-14X1.25 GR5 YWZC

$2.99

$

In Stock, only 1 left!

0

37

Gravely 00150052

BUSHING, MACH .750X1.25X.048 Y

$5.49

$

Usually ships in 4-12 days

0

38

Gravely 06714300

PIN-CTR .12X1.50 EXTPRSQCT YZ

$2.49

$

Usually ships in 4-12 days

0

39

Gravely 06553000

NUT, 1/2-20 LUG, GRADE 5
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

40

Gravely 07100906

ASSM, WHL/TIRE 16X7.50-8 K500

Note: (988324, 988325)

$179.99

$

Usually ships in 4-12 days

0

40

Gravely 07100907

ASSM, WHL/TIRE 16X6.50-8 K500
(Superseded to 07101138)

Note: (988323)

$151.99

$

Usually ships in 4-12 days

0

41

Gravely 00203842

ASSY, WHEEL HUB

$189.99

$

Usually ships in 4-12 days

0

42

Gravely D14280

BOLT, 3/8-16 X 1 GR8 BLACK

$2.99

$

Usually ships in 4-12 days

0

43

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 03901553

BRKT, MOTOR MOUNT GRV FLWLK

Note: (988323, 988324)

$49.99

$

Usually ships in 4-12 days

0

45

Gravely D18311

MOTOR, HYDRAULIC WHEEL

$857.99

$

Usually ships in 4-12 days

0

46

Gravely 58809000

ASSM, 36" FRAME W/DECALS

Note: (988323)

$262.99

$

Usually ships in 4-12 days

0

46

Gravely 58809100

ASSM, 48-52" FRAME W/DECALS

Note: (988324, 988325)

$

$

Not available

47

Gravely 06538700

NUT-SL .75-16 YWZC

$6.99

$

Usually ships in 4-12 days

0

48

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$6.99

$

In Stock, Qty 20+

0

49

Gravely 06527500

NUT-LK-NYL .44-14 YWZC

$2.99

$

Usually ships in 4-12 days

0
