988400 (EHWKA1536S) - EverRide Pro Walk-Behind Mower (SN: 000101 - 000200) Fuel Tank Assembly Parts Diagram

Pro Walk-Behind Mower

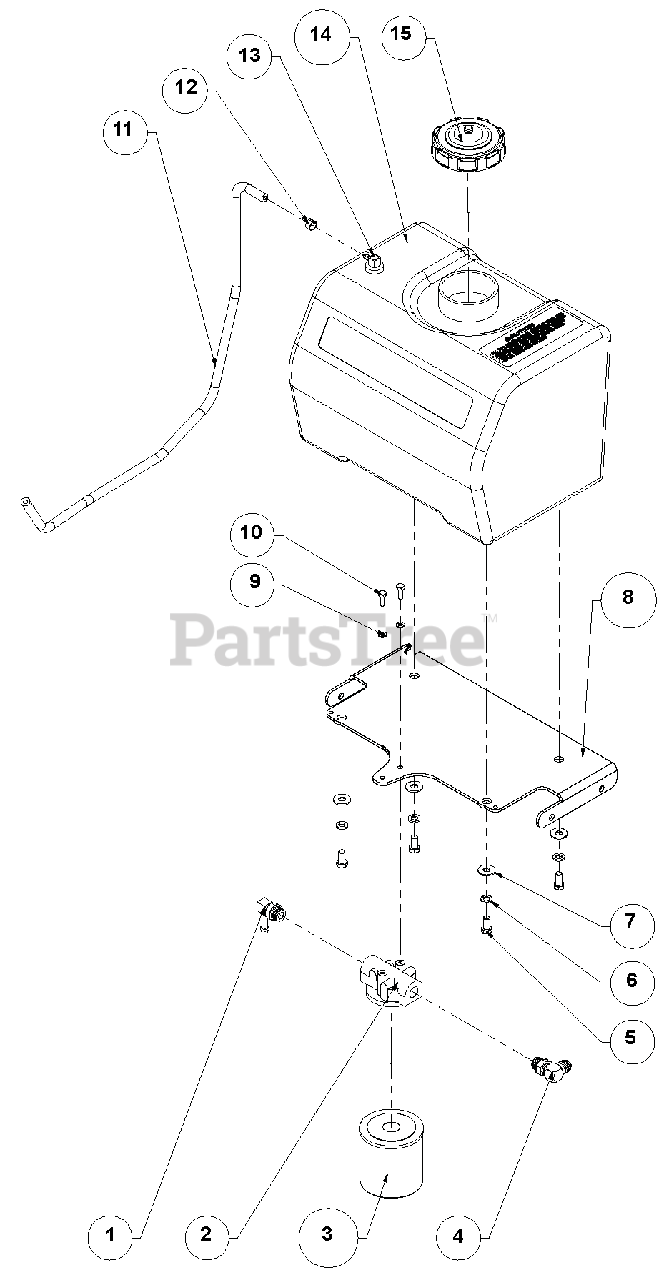

Fuel Tank Assembly Parts Diagram

  • Title

1

Gravely 00200464

FTG, 90 BRB-OR 4601-06-08

$

$

Not available

2

Gravely 00200463

HEAD, OIL FILTER

$

$

Not available

3

Gravely GDA10137

FILTER, OIL

$29.99

$

In Stock, Qty 5

0

4

Gravely 00230668

FTG, 90 3/4MORX3/4MJIC
(Superseded to D14196)

$6.49

$

Usually ships in 4-12 days

0

5

Gravely 00960045

BOLT, 3/8-16X.750 HEX 5 Y
(Superseded to 05959400)

$1.99

$

In Stock, Qty 14

0

6

Gravely 00960602

WASHER, .375 MED SPRG LOCK Y

$

$

Not available

7

Gravely 00960702

WASHER, .375 REG FLAT Y
(Superseded to 06435900)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 03756651

BRACKET, TANK SUPPORT

$

$

Not available

9

Gravely AA960600

WASHER, .250 MED SPRG LOCK Y

$

$

Not available

10

Gravely 00960001

BOLT, 1/4-20X.750 HEX 5 Y

$

$

Not available

11

Gravely 00192126

HOSE, FUEL 1/4 X 30.00

$

$

Not available

12

Gravely 00130924

CLAMP, HOSE - 1/2" SPRING
(Superseded to 03278800)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 09112300

FITTING, TANK
(Superseded to 03875300)

$15.99

$

In Stock, only 2 left!

0

14

Gravely 04943561

TANK, FUEL W/MOLDED EVR DECAL

$

$

Not available

15

Gravely 00181251

CAP, FUEL S/O

$24.99

$

In Stock, Qty 5

0
