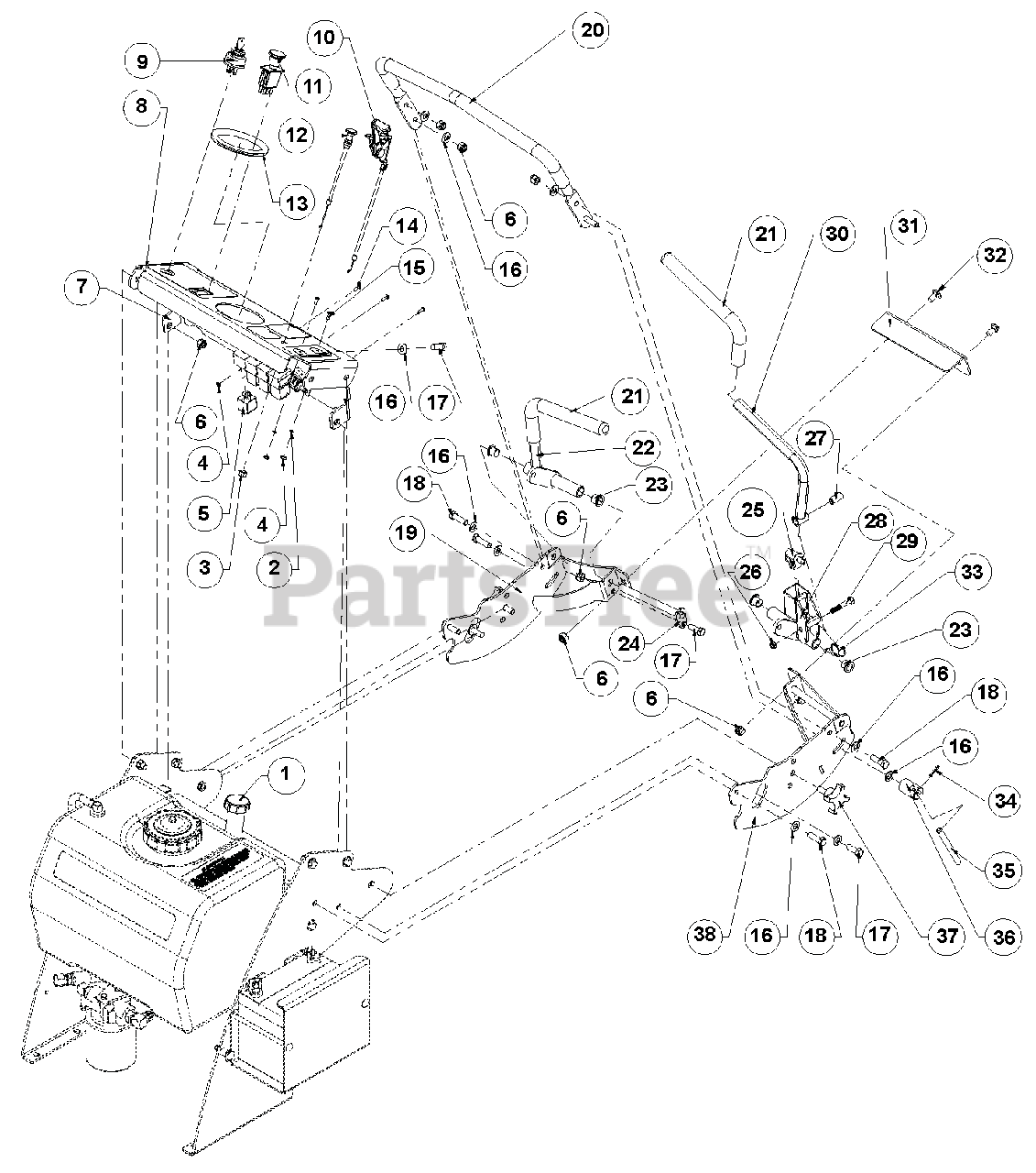

988400 (EHWKA1536S) - EverRide Pro Walk-Behind Mower (SN: 000101 - 000200) Handlebar/Console Assembly Parts Diagram

Pro Walk-Behind Mower

Handlebar/Console Assembly Parts Diagram

  • Title

1

Gravely D18333

CAP, OIL FILL BREATHER

$25.99

$

In Stock, only 1 left!

0

2

Gravely 00967038

WASHER, #8 MED SPRG LOCK Y
(Superseded to 06300112)

$

$

Not available

3

Gravely 00967054

NUT, 3/8-24 STD HEX Y
(Superseded to 06522900)

$2.99

$

In Stock, only 2 left!

0

4

Gravely 00967037

NUT, 8-32 STD HEX Y
(Superseded to 06529900)

$

$

Not available

5

Gravely 00102770

RELAY, ISO MINI ELEC.

$27.99

$

Usually ships in 4-12 days

0

6

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

7

Gravely 00200409

WLDT, HANDLE BRACE

$43.99

$

Usually ships in 4-12 days

0

8

Gravely D32054

CONSOLE, LOOP HANDLE HYDRO

$

$

Not available

9

Gravely 00180620

SWITCH, KEY - 3 POSITION

$36.99

$

In Stock, Qty 5

0

10

Gravely 00200413

CABLE, THROTLE 49.5"
(Superseded to 06900714)

$35.99

$

In Stock, Qty 5

0

11

Gravely 00136574

SWITCH, PTO ENGAGEMENT

$29.99

$

In Stock, only 4 left!

0

12

Gravely 00180273

CABLE, CHOKE 48.0"

$56.99

$

In Stock, only 2 left!

0

13

Gravely 00170900

TRIM, RUBBER EDGE 12"

$

$

Not available

14

Gravely D24020

SCREW,8-32X1/2

$

$

Not available

15

Gravely 00967036

SCREW, 8-32X.500 RD HD MACH Y
(Superseded to 06006023)

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 00964501

WASHER, .406X.813X.065 FLAT Y
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 00960046

BOLT, 3/8-16X1.00 HEX 5 Y
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 00960047

BOLT, 3/8-16X1.25 HEX 5 Y
(Superseded to 05958000)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 00203886

WLDT, RH CONTROL MOUNT

$

$

Not available

20

Gravely D38026

HANDLE, LOOP HYDRO

$128.99

$

Usually ships in 4-12 days

0

21

Gravely D18093

GRIP, CONTROL
(Superseded to 07500222)

$8.49

$

In Stock, only 1 left!

0

22

Gravely 00203897

WLDT, RH DRIVE LEVER

$

$

Not available

23

Gravely D18013

BRG, FLG .500X.625X.500 BRNZ

$7.49

$

Usually ships in 4-12 days

0

24

Gravely 00203893

WLDT, PIN AND LOCK Y

$34.99

$

Usually ships in 4-12 days

0

25

Gravely AM103119

SWITCH, SEAT OVERIDE (N.O.)
(Superseded to 02754100)

$9.99

$

In Stock, Qty 20+

0

26

Gravely 00967115

LOCKNUT, 5/16-18 NYLOC Y
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

27

Gravely D33004

SPACER, .500 X .330 X .980

$8.49

$

Usually ships in 4-12 days

0

28

Gravely 00203898

WLDT, LH HANDLE MOUNT

$

$

Not available

29

Gravely 00960026

BOLT, 5/16-18X1.75 HEX 5 Y
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

30

Gravely 00203902

WLDT, LH DRIVE LEVER

$

$

Not available

31

Gravely 00203882

DRIVE ARM BACK PLATE

$

$

Not available

32

Gravely 00963033

BOLT, 3/8-16X.750 CRG 5 LN Y

$

$

Not available

33

Gravely D38003

SPRING, TOR 1.00X.062 Y

$9.99

$

Usually ships in 4-12 days

0

34

Gravely 34H60

Pin, Spring

$

$

Not available

35

Gravely D13309

LEVER, LOCK Y

$

$

Not available

36

Gravely D13308

BASE, LOCK LEVER Y

$

$

Not available

37

Gravely D18047

KNOB, STAR 3/8-16 X 1.00

$10.99

$

Usually ships in 4-12 days

0

38

Gravely 00203885

WLDT, LH CONTROL MOUNT

$

$

Not available
