988400 (EHWKA1536S) - EverRide Pro Walk-Behind Mower (SN: 000101 - 000200) Traction Control Parts Diagram

Pro Walk-Behind Mower

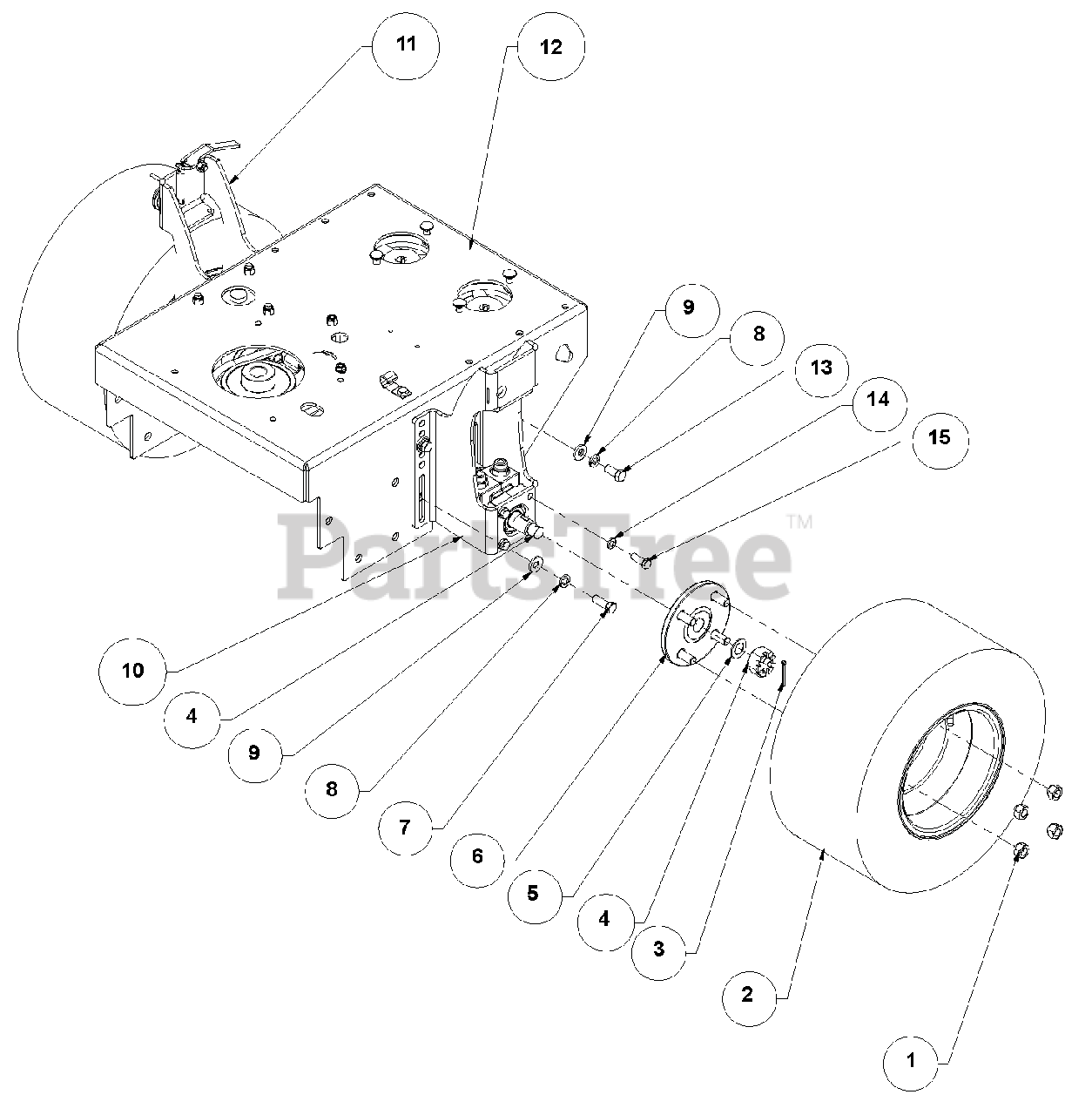

Traction Control Parts Diagram

  • Title

1

Gravely 00960526

NUT, 1/2-20 LUG C
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 00200531

ASSY, WHEEL & TIRE - 16X6.5-8

$116.99

$

Usually ships in 4-12 days

0

3

Gravely 00962019

PIN, COT .125X1.50 EXTP Y
(Superseded to 06714300)

$2.49

$

Usually ships in 4-12 days

0

4

Gravely D18311

MOTOR, HYDRAULIC WHEEL

$857.99

$

Usually ships in 4-12 days

0

5

Gravely 00150052

BUSHING, MACH .750X1.25X.048 Y

$5.49

$

Usually ships in 4-12 days

0

6

Gravely 00203842

ASSY, WHEEL HUB

$189.99

$

Usually ships in 4-12 days

0

7

Gravely 00960080

BOLT, 7/16-14X1.25 HEX 5 Y
(Superseded to 05963800)

$2.99

$

In Stock, only 1 left!

0

8

Gravely 00960603

WASHER, .438 MED SPRG LOCK Y
(Superseded to 06309300)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 00960712

WASHER, .468X1.00X.125 FLAT Y
(Superseded to 06400914)

$

$

Not available

10

Gravely 03780361

BRKT, LH COMBO WD WASP HP

Note: (402)

$

$

Not available

Gravely 03763661

BRACKET, LH COMBO EVERRIDE

Note: (400, 403)

$

$

Not available

11

Gravely 03780561

BRKT, RH COMBO WD WASP HP

Note: (402)

$

$

Not available

Gravely 03763761

BRACKET, RH COMB BRKT EVRRDE

Note: (400, 403)

$

$

Not available

12

Gravely 03754953

WLDT, ENGINE PLATE TDF GRAVELY

$

$

Not available

13

Gravely 00960079

BOLT, 7/16-14X1.00 HEX 5 Y
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

14

Gravely 00960602

WASHER, .375 MED SPRG LOCK Y

$

$

Not available

15

Gravely D14280

BOLT, 3/8-16 X 1 GR8 BLACK

$2.99

$

Usually ships in 4-12 days

0
