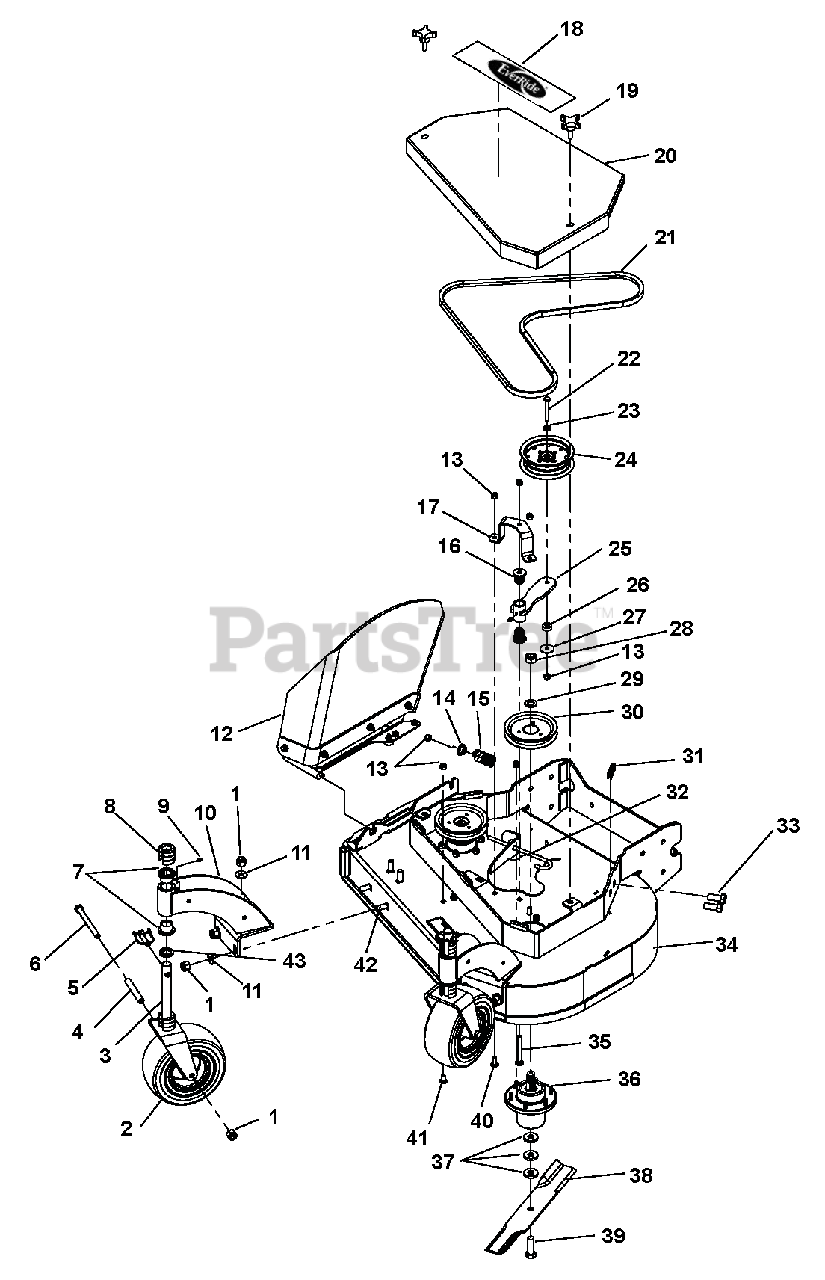

988400 (EHWKA1536S) - EverRide Pro Walk-Behind Mower (SN: 000201 & Above) 36" Deck Assembly Parts Diagram

Pro Walk-Behind Mower

36" Deck Assembly Parts Diagram

  • Title

1

Gravely 00964015

LOCKNUT, 1/2-13 NYLOC Y
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

2

Gravely 07100302

ASSY, WHEEL AND TIRE 9X3.5
(Superseded to 07100931)

$151.99

$

In Stock, only 4 left!

0

3

Gravely 00200534

WLDT, CASTER YOKE W/EVRRD PNT

$

$

Not available

4

Gravely D13003

TUBE, CASTER AXLE

$21.99

$

In Stock, only 2 left!

0

5

Gravely 00161397

PIN, KLIK .438X2.00

$9.99

$

In Stock, only 2 left!

0

6

Gravely 05964100

BLT-HEX .50-13X5.50 GR5YWZC
(Superseded to 05901632)

$7.49

$

In Stock, Qty 12

0

7

Gravely D18076

BRG, FLG 1.00X1.25X1.00

$7.49

$

In Stock, Qty 13

0

8

Gravely 00164145

C-SPACER, 1.00 X 1.77 X .500

$5.99

$

In Stock, only 2 left!

0

9

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

In Stock, only 2 left!

0

10

Gravely 03987461

WLDT, STRUT FRONT WHEEL FXWLK

$

$

Not available

11

Gravely 00960703

MANUAL, OWNERS RAPID XZ FRENCH

$

$

Not available

12

Gravely 56155061

ASSY, DISCHARGE SHIELD

$

$

Not available

13

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

14

Gravely D33062

KEEPER, SPRING

$40.99

$

Usually ships in 4-12 days

0

15

Gravely D38128

SPRING, COM 1.22X.162X2.50 Y

$18.99

$

Usually ships in 4-12 days

0

16

Gravely TCU14540

BRG, FLG M10XM25XM27 FLUTED

$18.99

$

In Stock, Qty 6

0

17

Gravely 00165662

BRACE, TENSIONER ARM

$

$

Not available

18

Gravely 00180954

DECAL, 9" EVERRIDE LOGO SM

$

$

Not available

19

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

In Stock, only 4 left!

0

20

Gravely 03997361

WLDT, BELT SHIELD 36 FXWLK G2

$

$

Not available

21

Gravely D18087

BELT, HB 77.5 EL AMD OHR

$76.99

$

Usually ships in 4-12 days

0

22

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

23

Gravely 00964501

WASHER, .406X.813X.065 FLAT Y
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

24

Gravely D18032

PULLEY, FLAT 5.00X.375 W/BRG
(Superseded to 07346700)

$82.99

$

In Stock, Qty 9

0

25

Gravely 03996351

WLDT, IDLER 36 FXWLK G2

$51.99

$

Usually ships in 4-12 days

0

26

Gravely D13023

BUSHING, .380 X 1.00 X .410 Y

$20.99

$

Usually ships in 4-12 days

0

27

Gravely 00964502

WASHER, .375X1.50X.063 FLAT Y
(Superseded to 06439300)

$3.49

$

In Stock, Qty 13

0

28

Gravely 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$3.99

$

In Stock, Qty 18

0

29

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$2.49

$

In Stock, Qty 9

0

30

Gravely 03399702

PULLEY, SPLINE SPINDLE LSE

$76.99

$

In Stock, only 2 left!

0

31

Gravely 00999538

TRIM, LOCK 1/4" EDGE

$6.49

$

Usually ships in 4-12 days

0

32

Gravely D23040

J-BOLT, 3/8-16 X 7.88 Y

$11.99

$

Usually ships in 4-12 days

0

33

Gravely 05901321

BOLT, HEX 5/8-11 1.5" GR8 YWZC
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 50521000

ASSY, DECK 36" WASP HP W/DECAL

$

$

Not available

35

Gravely 03H1836

BOLT, 3/8-16X3.50 CRG 5 Y

$

$

Not available

36

Gravely 00200262

ASSY, SPINDLE S/O

$294.99

$

Usually ships in 4-12 days

0

37

Gravely D18055

WASHER, .630X1.50X.250 FLAT Y
(Superseded to 06401033)

$7.49

$

In Stock, Qty 13

0

38

Gravely GDU10231

BLADE, 18.000 X .80 LIFT

$31.99

$

In Stock, Qty 20+

0

39

Gravely 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$6.49

$

In Stock, Qty 9

0

40

Gravely 00963019

BOLT, 3/8-16X1.00 CRG 5 SN Y

$

$

Not available

41

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

42

Gravely 06223100

BLT-RDHDSQNK .50-13X1.50 G5YZ
(Superseded to 06200421)

$5.49

$

Usually ships in 4-12 days

0

43

Gravely D13008

BUSHING, 1.03 X 1.50 X .179 Y

$10.99

$

In Stock, Qty 8

0
