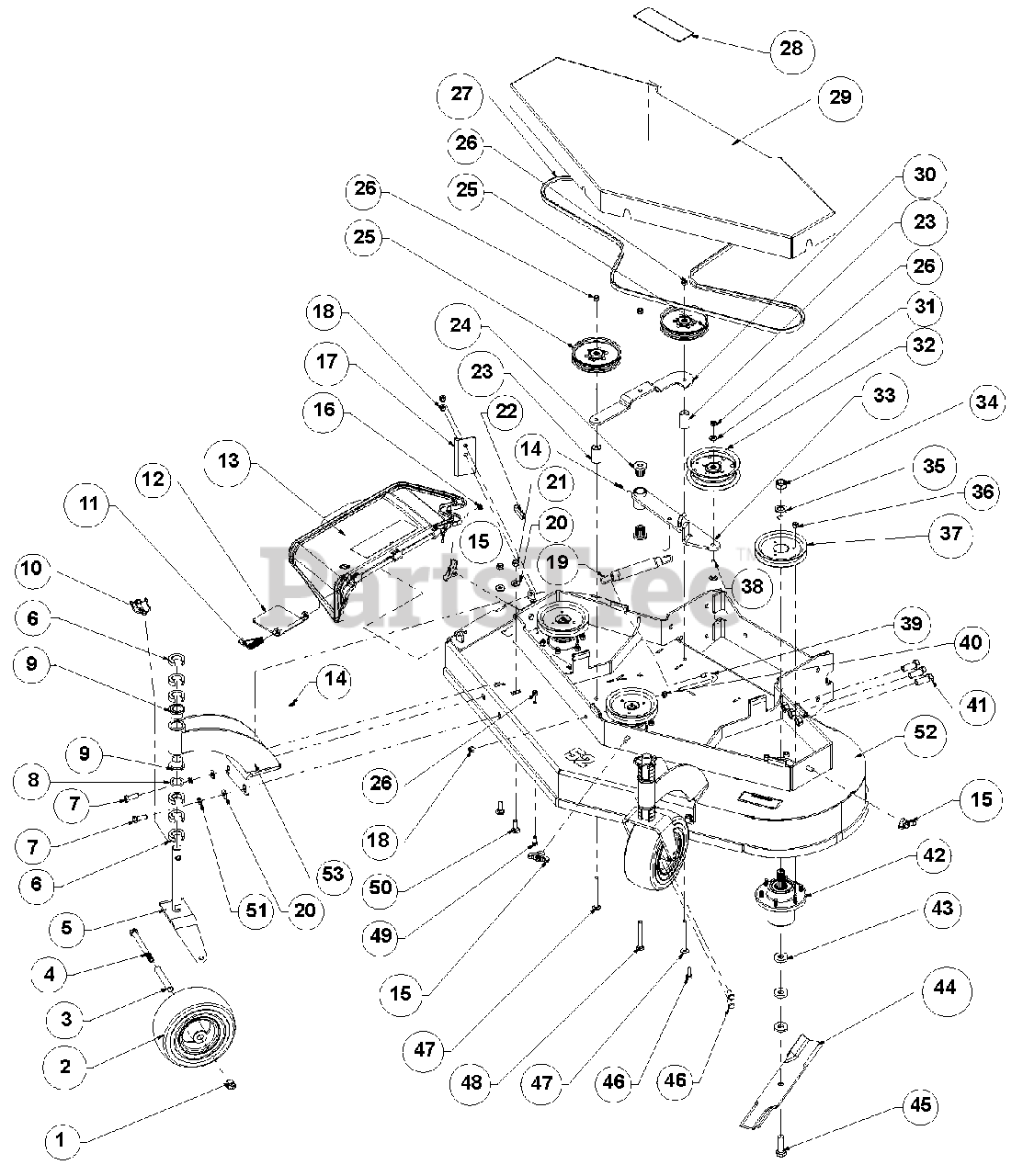

988402 (EHWKA1952S) - EverRide Pro Walk-Behind Mower (SN: 000101 - 000200) 52" Deck Assembly Parts Diagram

Pro Walk-Behind Mower

52" Deck Assembly Parts Diagram

  • Title

1

Gravely 00964015

Locknut, .50-13 Nyloc
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

2

Gravely 07100302

Assembly, Wheel and Tire 9 x 3.5
(Superseded to 07100931)

$151.99

$

In Stock, only 2 left!

0

3

Gravely D13003

Tube, Caster Axle

$21.99

$

In Stock, only 1 left!

0

4

Gravely 00960129

Bolt, .50-13 x 5.50 Hex 5
(Superseded to 05901632)

$7.49

$

In Stock, only 2 left!

0

5

Gravely 00200534

Weldment, Caster Yoke w/EverRide Paint

$

$

Not available

6

Gravely 00164145

C-Spacer, 1.00 x 1.77 x .500

$5.99

$

In Stock, Qty 20+

0

7

Gravely 00960080

Bolt, .4375-14 x 1.25 Hex 5
(Superseded to 05963800)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely D13008

Bushing, 1.03 x 1.50 x .179

$10.99

$

In Stock, Qty 12

0

9

Gravely D18076

Bearing, Flange 1.00 x 1.25 x 1.00

$7.49

$

In Stock, only 3 left!

0

10

Gravely 00161397

Pin, LNC .438 x 2.00

$9.99

$

In Stock, only 2 left!

0

11

Gravely 03393800

Spring, Discharge Chute

$6.49

$

Usually ships in 4-12 days

0

12

Gravely 00200095

Bracket, Chute Support

$25.99

$

Usually ships in 4-12 days

0

13

Gravely TCA16387

Chute, Discharge Assembly

$37.99

$

In Stock, only 2 left!

0

14

Gravely 00959995

Fitting, .25-28 Straight Grease Zerk

$3.99

$

Usually ships in 4-12 days

0

15

Gravely M119352

Knob, .38-16 Insert

$3.99

$

In Stock, only 4 left!

0

16

Gravely H141123

Retainer

$

$

Not available

17

Gravely 03754061

Plate, Extender

$

$

Not available

18

Gravely 00968087

Locknut, 3/8-16 Nyloc

$

$

Not available

19

Gravely N242189

Spring, External

$10.99

$

Usually ships in 4-12 days

0

20

Gravely 00960702

Washer, .375 Regular Flat
(Superseded to 06435900)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 00964025

Locknut, .4375-14 Crown
(Superseded to 06508200)

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 00999538

Trim, 1/4" Trim-Lok Edge

$6.49

$

Usually ships in 4-12 days

0

23

Gravely TCU18742

Spacer Assembly

$19.99

$

Usually ships in 4-12 days

0

24

Gravely TCU14540

Bearing, Flange M10 x M25 x M27 Fluted

$18.99

$

In Stock, Qty 5

0

25

Gravely D28050

Pulley, Flat Idler
(Superseded to 07352400)

$40.99

$

In Stock, Qty 20+

0

26

Gravely 00964022

Locknut, .38-16 Crown

$

$

Not available

27

Gravely TCU18848

Belt, HB 109.3 Elbow AMD

$108.99

$

In Stock, only 2 left!

0

28

Gravely 05239600

Decal, Pro-1952

$

$

Not available

29

Gravely 03724161

Weldment, 52" Belt Shield EverRide

$

$

Not available

30

Gravely 03721451

Strap, Idler Pulley Hydro Walk

$

$

Not available

31

Gravely 00964501

Washer, .406 x .813 x .065 Flat
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

32

Gravely D18032

Pulley, Flat 5.00 x .375 w/BRG
(Superseded to 07346700)

$82.99

$

In Stock, Qty 6

0

33

Gravely TCA15346

Arm, Idler

$145.99

$

In Stock, only 1 left!

0

34

Gravely 00964024

Locknut, .75-16 Crown
(Superseded to 06500031)

$3.99

$

In Stock, Qty 20+

0

35

Gravely 03399703

Washer, .75 x 1.3125 x .120
(Superseded to 06401037)

$2.49

$

In Stock, Qty 10

0

36

Gravely 00960502

Nut, .38-16 Standard Hex 5

$

$

Not available

37

Gravely 03399702

Pulley, Spline Spindle LSE

$76.99

$

In Stock, Qty 5

0

38

Gravely 03H1658

Bolt, .38-16 x 2.25 Round Head Square Neck
(Superseded to 06200301)

$4.99

$

In Stock, Qty 20+

0

39

Gravely D23058

J-Bolt, .38-16 x 4.00

$6.49

$

Usually ships in 4-12 days

0

40

Gravely 00964016

Locknut, .38-16 Whiz
(Superseded to 06534900)

$1.99

$

In Stock, Qty 20+

0

41

Gravely 05901321

Bolt, Hex .6250-11 1.5" Grade 8
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

42

Gravely 00200262

Assembly, Spindle Housing

$294.99

$

In Stock, only 1 left!

0

43

Gravely D18055

Washer, .630 x 1.50 x .250 Flat
(Superseded to 06401033)

$7.49

$

In Stock, only 4 left!

0

44

Gravely GDU10231

Blade, 18.000 x .80 Lift

$31.99

$

In Stock, Qty 20+

0

45

Gravely 00967348

Bolt, .625-11 x 2.00 Hex 8
(Superseded to 05901725)

$6.49

$

In Stock, only 2 left!

0

46

Gravely 00960046

Bolt, .38-16 x 1.00 Hex 5
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

47

Gravely 03H1809

Bolt, .3750 x 4 SHTNK Round Head Bolt

$

$

Not available

48

Gravely 03H1836

Bolt, .38-16 x 3.50 Round Head Square Neck

$

$

Not available

49

Gravely 00960045

Bolt, .38-16 x .750 Hex 5
(Superseded to 05959400)

$1.99

$

In Stock, Qty 11

0

50

Gravely 00963029

Bolt, .4375-14 x 1.25 Round Head Square Neck
(Superseded to 06200130)

$

$

Not available

51

Gravely 00960603

Washer, .438 Medium Spring Lock
(Superseded to 06309300)

$2.99

$

In Stock, Qty 6

0

52

Gravely 03758501

Assembly, 52" EverRide Deck w/Decals

$

$

Not available

53

Gravely 00203856

Weldment, Caster Support w/EverRide Paint

$

$

Not available
