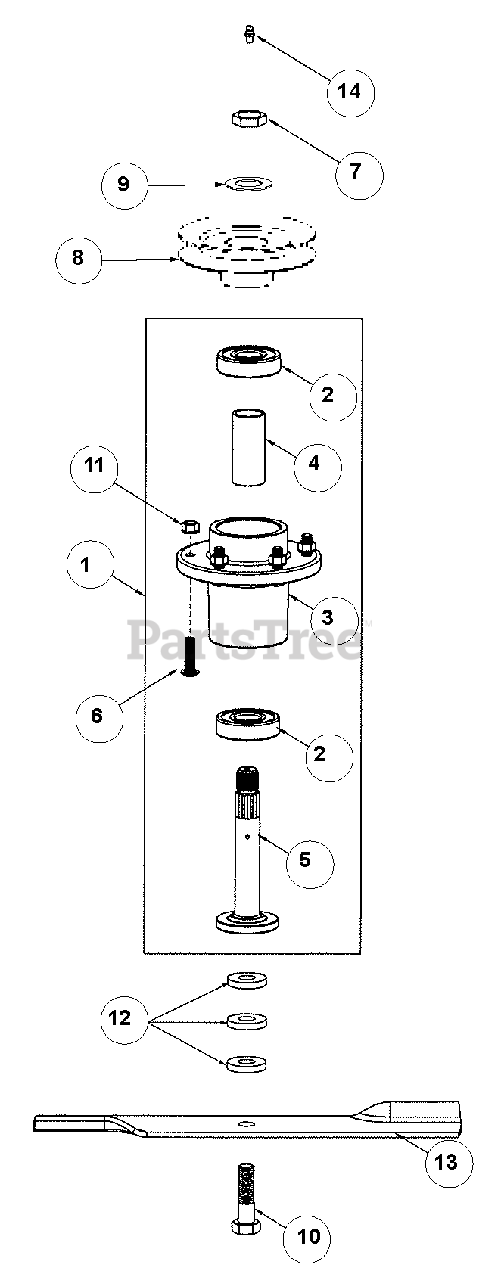

988402 (EHWKA1952S) - EverRide Pro Walk-Behind Mower (SN: 000101 - 000200) Spindle Assembly Parts Diagram

Pro Walk-Behind Mower

Spindle Assembly Parts Diagram

  • Title

1

Gravely 00200262

Spindle Assembly - Includes 2, 3, 4, 5, 6

$250.99

$

In Stock, only 1 left!

0

2

Gravely 00200046

Bearing

$26.99

$

Usually ships in 4-12 days

0

3

Gravely 00200042

Casting, Spindle w/Studs

$87.99

$

Usually ships in 4-12 days

0

4

Gravely 00200044

Spacer, 1.250 x 1.000 x 2.780 x 2.772

$29.99

$

Usually ships in 4-12 days

0

5

Gravely 00200261

Shaft, Spindle

$93.99

$

Usually ships in 4-12 days

0

6

Gravely 00200045

Bolt, .38-16 x 1.25 Rib

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 00964024

Nut, .75-16 Flange Grade 8
(Superseded to 06500031)

$3.99

$

In Stock, Qty 12

0

8

Gravely N/A

Pulley, Cutter Housing - See Mower Assembly

$

$

Currently unavailable

9

Gravely 03399703

Washer, .75 x 1.3125 x .120

$3.99

$

In Stock, Qty 11

0

10

Gravely 00967347

Bolt, Blade - .625-11 x 2.25 Grade 8

$

$

Not available

11

Gravely 00960502

Nut, .38-16 Std Hex Grade 5

$

$

Not available

12

Gravely D18055

Spacer, Blade Bolt
(Superseded to 06401033)

$6.99

$

In Stock, only 4 left!

0

13

Gravely GDU10231

18.0" Blade, 36" Deck (400)

Note: (400)

$27.99

$

In Stock, Qty 20+

0

Gravely GDU10231

18.0" Blade, 52" Deck (403)

Note: (403)

$27.99

$

In Stock, Qty 20+

0

Gravely GDU10230

16.5" Blade, 48" Deck (402)

Note: (402)

$27.99

$

In Stock, Qty 19

0

14

Gravely 00200047

Zerk, Grease

$

$

Not available
