988402 (EHWKA1952S) - EverRide Pro Walk-Behind Mower (SN: 000201 & Above) Fuel Tank And Upright Assembly Parts Diagram

Pro Walk-Behind Mower

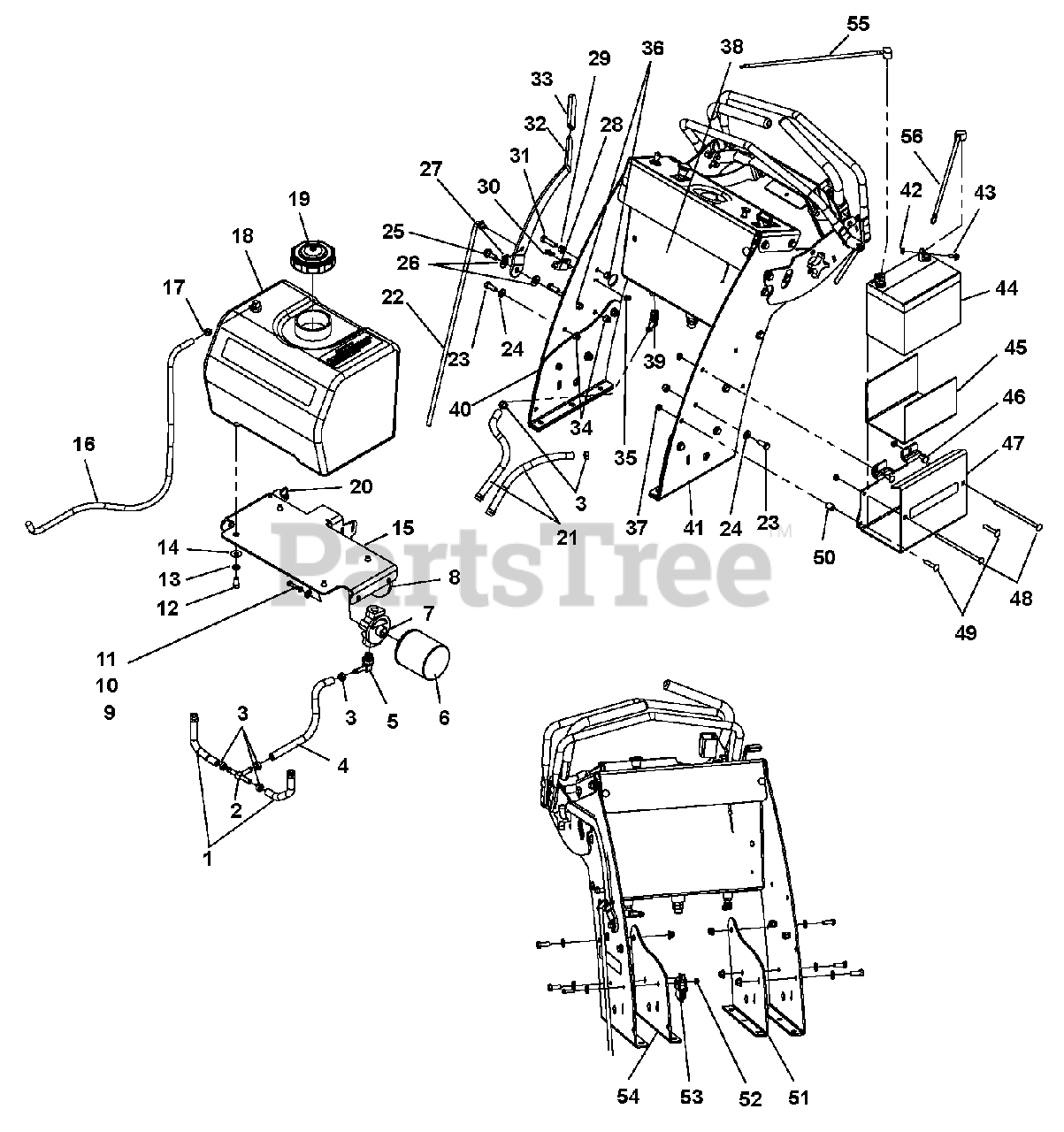

Fuel Tank And Upright Assembly Parts Diagram

  • Title

1

Gravely 00200455

Hose, Hydraulic .375 x 6.00

$

$

Not available

2

Gravely M86863

Fitting, TUN .375 Hose

$

$

Not available

3

Gravely D18379

Clamp, Hose - 1/2" Pinch

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 03832605

Hose, Hydraulic .375 x 10.5

$14.99

$

Usually ships in 4-12 days

0

5

Gravely 00200464

Fitting, 90 Deg. Barb-OR

$17.99

$

Usually ships in 4-12 days

0

6

Gravely GDA10137

Filter, Oil

$28.99

$

In Stock, Qty 5

0

7

Gravely 00200463

Head, Oil Filter

$34.99

$

Usually ships in 4-12 days

0

8

Gravely 03911551

Guard, Hydraulic Filter

$39.99

$

Usually ships in 4-12 days

0

9

Gravely 06400826

Washer, .250 Regular Flat

$

$

Not available

10

Gravely 960600

Washer, .250 Medium Spring Lock

$

$

Not available

11

Gravely 05947700

Bolt, .25-20 x 1.00 Hex Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

12

Gravely 05959400

Bolt, .38-16 x .75 Hex Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 1 left!

0

13

Gravely 00960602

Washer, .375 Medium Spring Lock

$

$

Not available

14

Gravely 00960702

Washer, .375 Regular Flat
(Superseded to 06435900)

$1.49

$

In Stock, only 4 left!

0

15

Gravely 03853751

Bracket, Fuel Tank

$

$

Not available

16

Gravely 00192126

Hose, Fuel .25 x 15.00

$

$

Not available

17

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 7

0

18

Gravely 04943500

Fuel Tank, Rev B

$

$

Not available

19

Gravely 00181251

Cap, Fuel

$23.99

$

In Stock, only 3 left!

0

20

Gravely 00111910

Cable Tie, .15 x 8.50

$

$

Not available

21

Gravely 03832604

Hose, Hyd. .375 x 11.5

$

$

Not available

22

Gravely 03858911

Rod, Drive Control

$54.99

$

Usually ships in 4-12 days

0

23

Gravely 05948700

Bolt, .38-16 x 1.00 Hex Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 00964501

Washer, .406 x .813 x .065 Flat
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 00135139

Bolt, .50 x 1.06 x .375-16 Grade 5
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 00967398

Washer, .510 x 1.00 x .068 Nylon

$

$

Not available

27

Gravely 00967353

Ring, Rue .375 x .054 x 1.254

$2.49

$

Usually ships in 4-12 days

0

28

Gravely 03606600

Switch- Double Pole N.O./N.O.

$15.99

$

Usually ships in 4-12 days

0

29

Gravely 00964016

Locknut, .375-16 WHIZ
(Superseded to 06534900)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 00967340

Screw, 10-24 x .625 Phillips Head

$2.49

$

Usually ships in 4-12 days

0

31

Gravely 05957900

Bolt .38-16 x 1.50 Hex Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 6

0

32

Gravely 03886251

Lever, Hand Brake

$50.99

$

Usually ships in 4-12 days

0

33

Gravely D18079

Grip, PVC .250 x 1.00 x 3.63

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 00968087

Locknut, .375-16 Nyloc

$

$

Not available

35

Gravely 00964013

Locknut, 10-24 Nyloc

$

$

Not available

36

Gravely 00964062

Locknut, .375-16 Center
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 00967115

Locknut, .3125-18 Nyloc
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

38

Gravely D35031

Weldment, Hydraulic Tank

$103.99

$

In Stock, only 1 left!

0

39

Gravely D24028

Fitting, 90 .5625 MOR x .375 Hose

$9.99

$

Usually ships in 4-12 days

0

40

Gravely 03982951

Weldment, RH Upright Tower 18"

$105.99

$

Usually ships in 4-12 days

0

41

Gravely 03982851

Weldment, LH Upright Tower 18"

$105.99

$

Usually ships in 4-12 days

0

42

Gravely 00964040

Locknut, .25-20 (988402, 403)

Note: (988402, 403)

$

$

Not available

43

Gravely AA963001

Bolt, .25-20 x .625 (988402, 403)

Note: (988402, 403)

$

$

Not available

44

Gravely 00191832

Battery, 12V-U1-CCA270 (988402, 403)
(Superseded to 01554800)

Note: (988402, 403)

$

$

Not available

45

Gravely D28159

Strip, Battery Insulator (988402, 403)

Note: (988402, 403)

$15.99

$

Usually ships in 4-12 days

0

46

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5 (988402, 403)
(Superseded to 06200232)

Note: (988402, 403)

$2.49

$

In Stock, Qty 20+

0

47

Gravely 00203873

Tray, Battery (988402, 403)
(Superseded to 04450951)

Note: (988402, 403)

$42.99

$

Usually ships in 4-12 days

0

48

Gravely 03H1832

Bolt, .3125-18 x 6.00 Grade 2 (988402, 403)

Note: (988402, 403)

$

$

Not available

49

Gravely 06220200

Bolt, .31-18 x 1.75 Round Head Square Neck Grade 5 (988402, 403)
(Superseded to 06200324)

Note: (988402, 403)

$2.99

$

In Stock, only 3 left!

0

50

Gravely 00203926

Bushing, .364 x .540 x .700 (988402, 403)

Note: (988402, 403)

$10.99

$

Usually ships in 4-12 days

0

51

Gravely 04083351

Plate, Double LH Upright

$25.99

$

Usually ships in 4-12 days

0

52

Gravely 986048

Locknut, .25-20 Nyloc (988400)

Note: (988400)

$

$

Not available

53

Gravely 00200410

Module, Electronic (988400)
(Superseded to 08885700)

Note: (988400)

$87.99

$

Usually ships in 4-12 days

0

54

Gravely 04083551

Plate, Double RH Upright

$31.99

$

Usually ships in 4-12 days

0

55

Gravely 03387900

Cable, Battery Ground 25" (988402, 403)

Note: (988402, 403)

$35.99

$

Usually ships in 4-12 days

0

56

Gravely 03388500

Cable, Battery Positive 25" (988402, 403)

Note: (988402, 403)

$35.99

$

Usually ships in 4-12 days

0
