988402 (EHWKA1952S) - EverRide Pro Walk-Behind Mower (SN: 000201 & Above) Transmission Parts Diagram

Pro Walk-Behind Mower

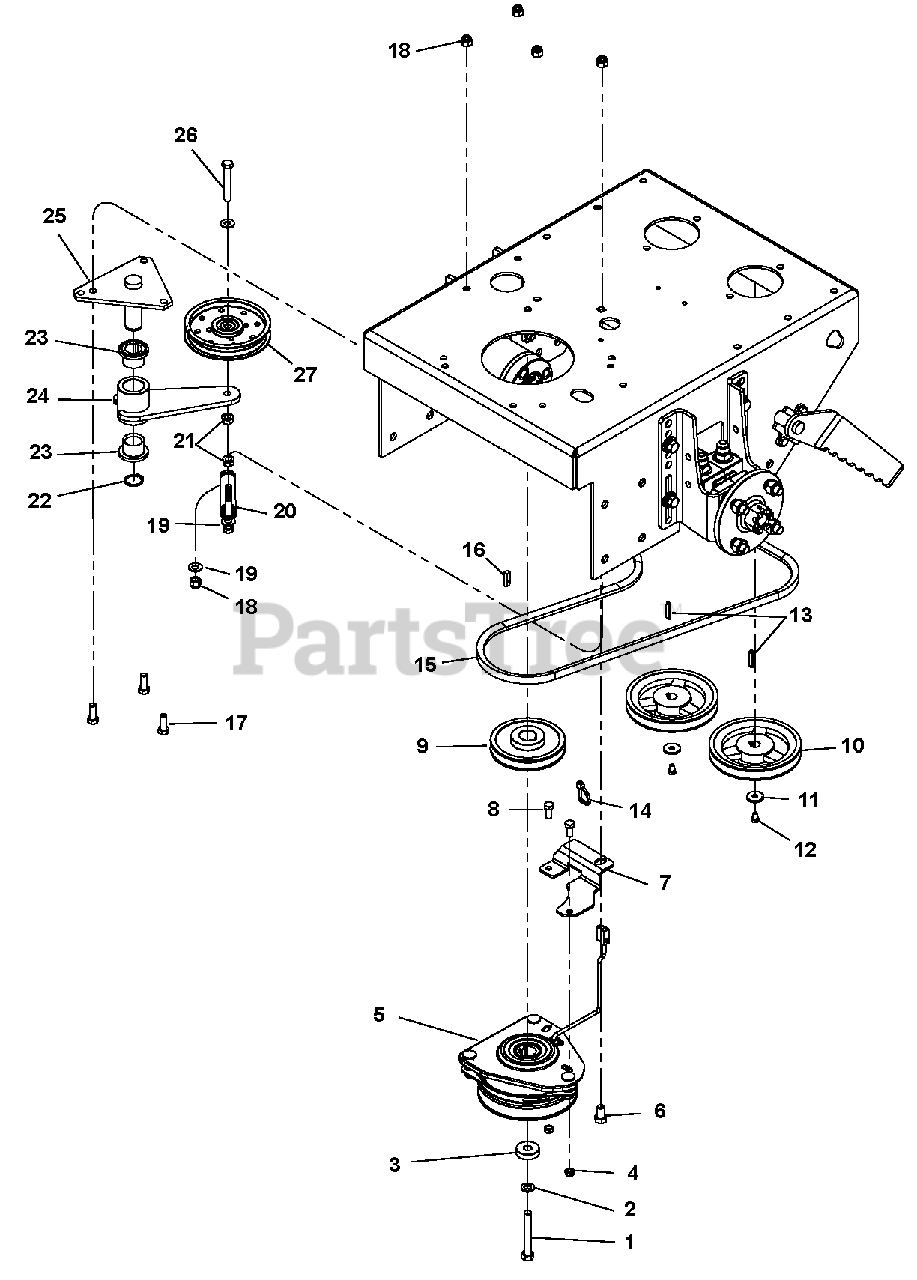

Transmission Parts Diagram

  • Title

1

Gravely 05900037

Bolt, .44-20 x 3.00 Hex Grade 5

$7.49

$

In Stock, Qty 20+

0

2

Gravely 00960603

Washer, .438 Medium Spring Lock
(Superseded to 06309300)

$2.99

$

In Stock, Qty 6

0

3

Gravely D18056

Spacer, .468 x 1.38 x .375

$22.99

$

Usually ships in 4-12 days

0

4

Gravely 00967115

Locknut, .3125-18 Nyloc
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 00200665

Clutch Assembly, OGURA

$383.99

$

In Stock, only 2 left!

0

6

Gravely 05900121

Bolt, .4400-14 x .750 Hex Grade 5

$

$

Not available

7

Gravely 00203840

Plate, Clutch Dog

$

$

Not available

8

Gravely 05947000

Bolt, .31-18 x .750 Hex Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

9

Gravely D18085

Pulley, V-Belt 4.45 x 1.00 with Key

$67.99

$

Usually ships in 4-12 days

0

10

Gravely TCA15316

Assembly, Plump Pulley w/Set Screw

$52.99

$

Usually ships in 4-12 days

0

11

Gravely D14160

Washer, .250 Wide Heavy Flat

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 00967041

Bolt, M6 x 1.00 x 10 Hex 8.8

$

$

Not available

13

Gravely 00966058

Key, M5 x M5 x M30 RD

$3.99

$

In Stock, only 1 left!

0

14

Gravely 00111910

Cable Tie, .15 x 8.50

$

$

Not available

15

Gravely D38006

Belt, HA 55.1 Elbow AMD OHR

$54.99

$

In Stock, only 2 left!

0

16

Gravely D18145

Key, .250 x .250 x .995 TPR

$7.49

$

Usually ships in 4-12 days

0

17

Gravely 05948700

Bolt, .38-16 x 1.00 Hex Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 00968087

Locknut, .38-16 Nyloc

$

$

Not available

19

Gravely 00964501

Washer, .406 x .813 x .065 Flat
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

20

Gravely D18071

Spring, External .900 x .135 x 4.50

$11.99

$

Usually ships in 4-12 days

0

21

Gravely 00964016

Locknut, .38-16 WHIZ
(Superseded to 06534900)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 00424390

Snap Ring, 1.00 x .042 External
(Superseded to 05700160)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely D18076

Bearing, Flange 1.00 x 1.25 x 1.00

$7.49

$

In Stock, only 3 left!

0

24

Gravely D15032

Weldment, Idler Arm

$34.99

$

Usually ships in 4-12 days

0

25

Gravely 00203918

Weldment, Idler Pivot Mount
(Superseded to 05180151)

$49.99

$

Usually ships in 4-12 days

0

26

Gravely 05958400

Bolt, .38-16 x 2.50 Hex Grade 5
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

27

Gravely GDA10032

Pulley, Flat 4.50 x .375 W/BRG

$44.99

$

Usually ships in 4-12 days

0
