988403 (EHWKA1948S) - EverRide Pro Walk-Behind Mower (SN: 000101 - 000200) Traction Control Parts Diagram

Pro Walk-Behind Mower

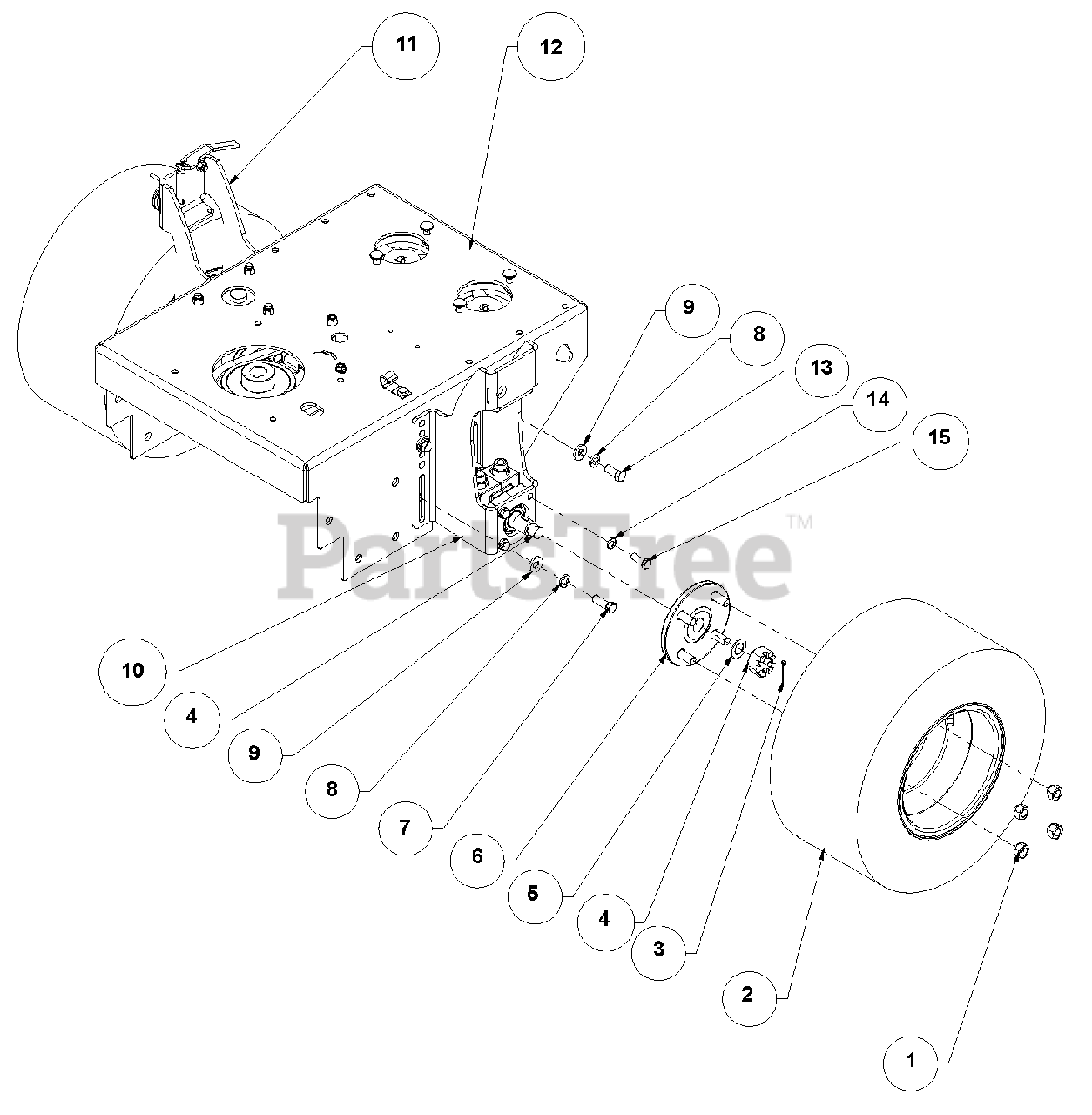

Traction Control Parts Diagram

  • Title

1

Gravely 00960526

Nut, .50-20 Lug
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 00200531

Assembly, Wheel and Tire- 16 x 6.5-8

$116.99

$

Usually ships in 4-12 days

0

3

Gravely 00962019

Pin, Cotter .125 x 1.50 EXTP
(Superseded to 06714300)

$2.49

$

Usually ships in 4-12 days

0

4

Gravely D18311

Motor, Hydraulic Wheel

$857.99

$

Usually ships in 4-12 days

0

5

Gravely 00150052

Bushing, Machine .750 x 1.25 x .048

$5.49

$

Usually ships in 4-12 days

0

6

Gravely 00203842

Assembly, Wheel Hub

$189.99

$

Usually ships in 4-12 days

0

7

Gravely 00960080

Bolt, .4375-14 x 1.25 Hex 5
(Superseded to 05963800)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 00960603

Washer, .438 Medium Spring Lock
(Superseded to 06309300)

$2.99

$

In Stock, Qty 5

0

9

Gravely 00960712

Washer, .468 x 1.00 x .125 Flat
(Superseded to 06400914)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 03780361

Bracket, Left Hand Combo WD EverRide (402)

Note: (402)

$

$

Not available

Gravely 03763661

Bracket, Left Hand Comb EverRide (400, 403)

Note: (400, 403)

$

$

Not available

11

Gravely 03780561

Bracket, Right Hand Combo WDEverRide (402)

Note: (402)

$

$

Not available

Gravely 03763761

Bracket, Right Hand Comb EverRide (400, 403)

Note: (400, 403)

$

$

Not available

12

Gravely 03754953

Weldment, Engine Plate TDF EverRide

$

$

Not available

13

Gravely 00960079

Bolt, .4375-14 x 1.00 Hex 5
(Superseded to 05901913)

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 00960602

Washer, .375 Medium Spring Lock

$

$

Not available

15

Gravely D14280

Bolt, .38-16 x 1 Grade 8 Black

$2.99

$

Usually ships in 4-12 days

0
