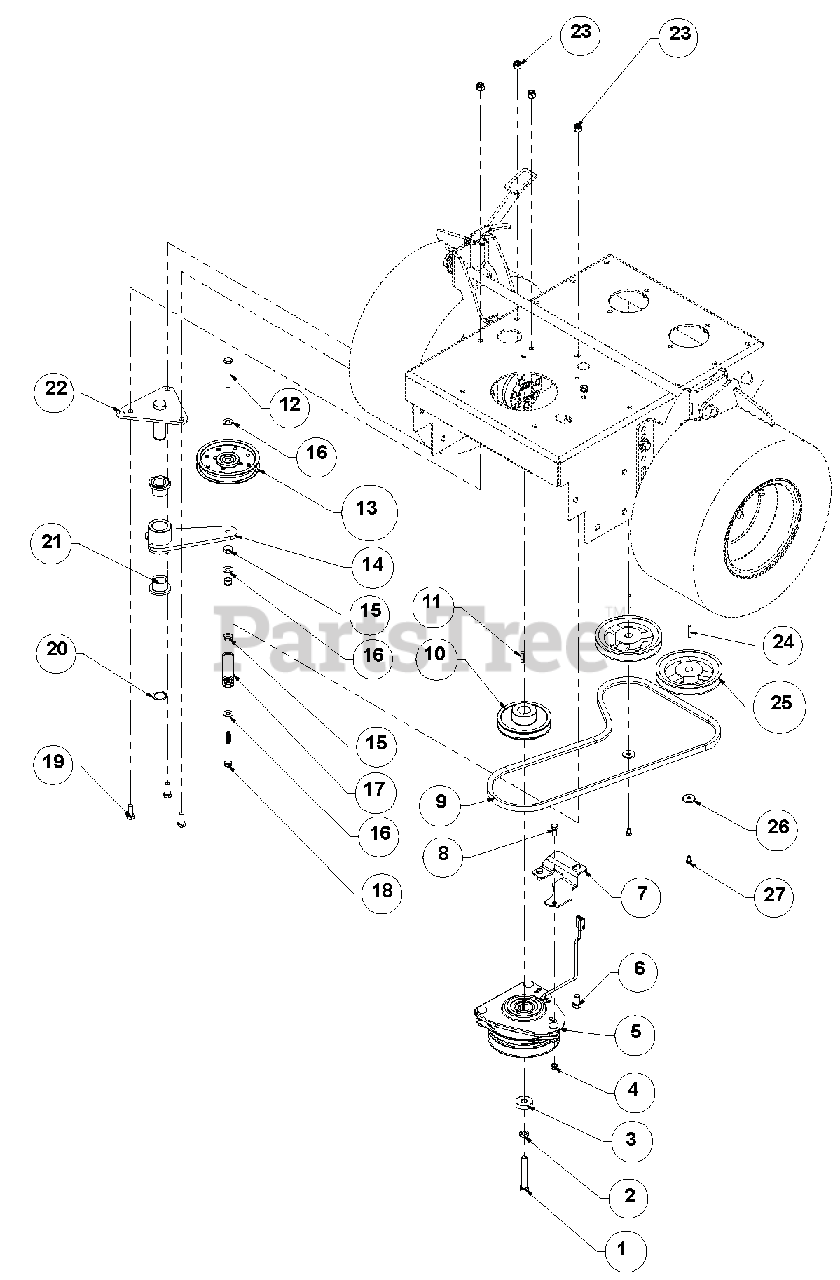

988403 (EHWKA1948S) - EverRide Pro Walk-Behind Mower (SN: 000101 - 000200) Transmission Parts Diagram

Pro Walk-Behind Mower

Transmission Parts Diagram

  • Title

1

Gravely D14252

BOLT, 7/16-20X3.00 HEX 5 Y
(Superseded to 05900037)

$7.49

$

In Stock, Qty 14

0

2

Gravely 00960603

WASHER, .438 MED SPRG LOCK Y
(Superseded to 06309300)

$2.99

$

In Stock, Qty 20+

0

3

Gravely D18056

SPACER, .468 X 1.38 X .375 Y

$22.99

$

Usually ships in 4-12 days

0

4

Gravely 00967115

LOCKNUT, 5/16-18 NYLOC Y
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

5

Gravely 00200665

CLUTCH ASSY, OGURA# GT1A-HU02

$284.99

$

In Stock, only 3 left!

0

6

Gravely 00960078

BOLT, 7/16-14X.750 HEX 5 Y

$

$

Not available

7

Gravely 00203840

PLATE, CLUTCH DOG

$

$

Not available

8

Gravely 00960022

BOLT, 5/16-18X.750 HEX 5 Y

$

$

Not available

9

Gravely D38006

BELT, HA 55.1 EL AMD OHR

$54.99

$

In Stock, only 2 left!

0

10

Gravely D18085

PULLEY, V-BELT 4.45X1.00 W/KEY

$67.99

$

Usually ships in 4-12 days

0

11

Gravely D18145

KEY, .250 X .250 X .995 TPR

$7.49

$

Usually ships in 4-12 days

0

12

Gravely 00960052

BOLT, 3/8-16X2.50 HEX 5 Y

$

$

Not available

13

Gravely GDA10032

PULLEY, FLAT 4.50X.375 W/BRG

$44.99

$

Usually ships in 4-12 days

0

14

Gravely D15032

WLDT, IDLER ARM

$34.99

$

Usually ships in 4-12 days

0

15

Gravely 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 00964501

WASHER, .406X.813X.065 FLAT Y
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

17

Gravely D18071

SPRING, EXT .900X.135X4.50 Y

$11.99

$

Usually ships in 4-12 days

0

18

Gravely 00967112

BOLT, 3/8-16X3.00 HEX 8 Y
(Superseded to 05901816)

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 00960046

BOLT, 3/8-16X1.00 HEX 5 Y
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 00424390

SNAP RING, 1.00 X .042 EXT
(Superseded to 05700160)

$3.99

$

Usually ships in 4-12 days

0

21

Gravely D18076

BRG, FLG 1.00X1.25X1.00

$7.49

$

In Stock, Qty 13

0

22

Gravely 00203918

WLDT, IDLER PIVOT MOUNT
(Superseded to 05180151)

$49.99

$

Usually ships in 4-12 days

0

23

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

24

Gravely 00966058

KEY, M5 X M5 X M30 RD

$3.99

$

In Stock, only 1 left!

0

25

Gravely TCA15316

ASSY, PUMP PULLEY W/SET SCREW

$52.99

$

Usually ships in 4-12 days

0

26

Gravely D14160

WASHER, .250 WIDE HEAVY FLAT Y

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 00967041

BOLT, M6X1.00X10 HEX 8.8 Y

$

$

Not available
