988403 (EHWKA1948S) - EverRide Pro Walk-Behind Mower (SN: 000201 & Above) 48" Deck Assembly Parts Diagram

Pro Walk-Behind Mower

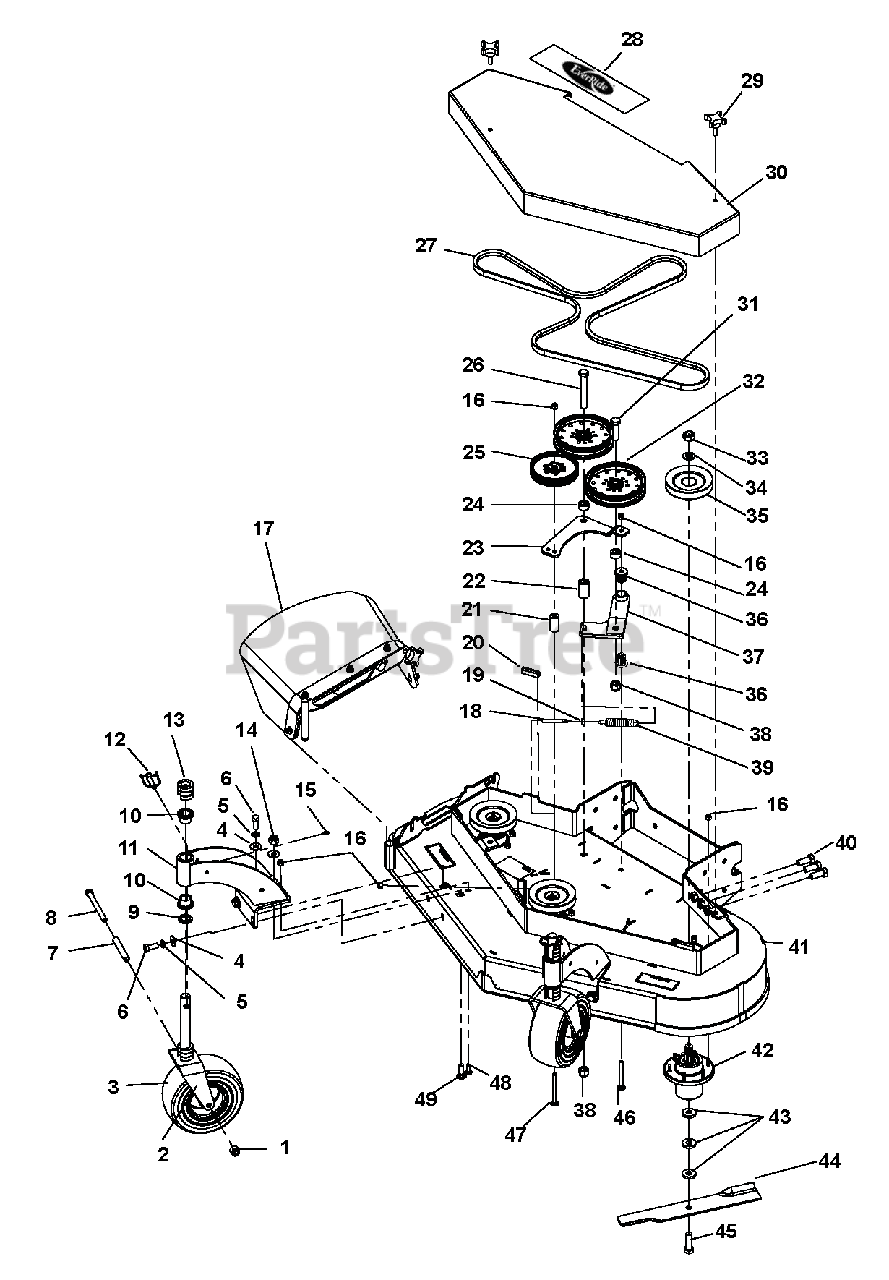

48" Deck Assembly Parts Diagram

  • Title

1

Gravely 00964015

LOCKNUT, 1/2-13 NYLOC Y
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

2

Gravely 00200534

WLDT, CASTER YOKE W/EVRRD PNT

$

$

Not available

3

Gravely 07100302

ASSY, WHEEL AND TIRE 9X3.5
(Superseded to 07100931)

$151.99

$

In Stock, only 4 left!

0

4

Gravely 00960703

MANUAL, OWNERS RAPID XZ FRENCH

$

$

Not available

5

Gravely 00960604

WASHER, .500 MED SPRG LOCK Y

$

$

Not available

6

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

7

Gravely D13003

TUBE, CASTER AXLE

$21.99

$

In Stock, only 2 left!

0

8

Gravely 05964100

BLT-HEX .50-13X5.50 GR5YWZC
(Superseded to 05901632)

$7.49

$

In Stock, Qty 12

0

9

Gravely D13008

BUSHING, 1.03 X 1.50 X .179 Y

$10.99

$

In Stock, Qty 8

0

10

Gravely D18076

BRG, FLG 1.00X1.25X1.00

$7.49

$

In Stock, Qty 13

0

11

Gravely 03987461

WLDT, STRUT FRONT WHEEL FXWLK

$

$

Not available

12

Gravely 00161397

PIN, KLIK .438X2.00

$9.99

$

In Stock, only 2 left!

0

13

Gravely 00164145

C-SPACER, 1.00 X 1.77 X .500

$5.99

$

In Stock, only 2 left!

0

14

Gravely 00964015

LOCKNUT, 1/2-13 NYLOC Y
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

In Stock, only 2 left!

0

16

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

17

Gravely 56155061

ASSY, DISCHARGE SHIELD

$

$

Not available

18

Gravely 00104024

ROD, THREADED ADJUSTMENT

$25.99

$

Usually ships in 4-12 days

0

19

Gravely 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 00999538

TRIM, LOCK 1/4" EDGE

$6.49

$

Usually ships in 4-12 days

0

21

Gravely TCU18742

SPACER

$19.99

$

Usually ships in 4-12 days

0

22

Gravely 03984702

BUSHING, .688X1.13X1.89

$

$

Not available

23

Gravely 03985751

STRAP, IDLER 52 FXWLK G2

$

$

Not available

24

Gravely 03846235

BUSHING, .688 X 1.13 X .55

$

$

Not available

25

Gravely D28050

PULLEY, FLAT IDLER
(Superseded to 07352400)

$40.99

$

In Stock, Qty 20+

0

26

Gravely 05983100

BLT-HEX .62-11X4.50 GR5 YWZC

$7.49

$

In Stock, only 3 left!

0

27

Gravely 00181715

BELT, HB 114.9 EL AMD

$87.99

$

In Stock, Qty 20+

0

28

Gravely 00180954

DECAL, 9" EVERRIDE LOGO SM

$

$

Not available

29

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

In Stock, only 4 left!

0

30

Gravely 03994461

WLDT, BELT SHIELD 48 FXWLK G2

$

$

Not available

31

Gravely 05982600

BLT-HEX .62-11X2.25 GR5 YWZC

$

$

Not available

32

Gravely 00140280

PULLEY, FLAT 6.00X.635 W/BRG

$70.99

$

In Stock, only 3 left!

0

33

Gravely 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$3.99

$

In Stock, Qty 18

0

34

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$2.49

$

In Stock, Qty 9

0

35

Gravely 03828700

PULLEY, SPLINE SPINDLE LSE

$

$

Not available

36

Gravely TCU14540

BRG, FLG M10XM25XM27 FLUTED

$18.99

$

In Stock, Qty 6

0

37

Gravely 03986951

WLDT, IDLER ARM 52 FXWLK G2

$

$

Not available

38

Gravely 06540700

NUT-LK-NYL .625-11 YWZC

$4.99

$

In Stock, Qty 20+

0

39

Gravely 00110580

SPRG, EXTENSION

$17.99

$

In Stock, only 2 left!

0

40

Gravely 05901321

BOLT, HEX 5/8-11 1.5" GR8 YWZC
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

41

Gravely 50521001

ASSY, DECK 48 WASP HP W/DECALS

$

$

Not available

42

Gravely 00200262

ASSY, SPINDLE S/O

$294.99

$

Usually ships in 4-12 days

0

43

Gravely D18055

WASHER, .630X1.50X.250 FLAT Y
(Superseded to 06401033)

$7.49

$

In Stock, Qty 13

0

44

Gravely GDU10230

BLADE, 16.500 X .80 LIFT

$29.99

$

In Stock, Qty 8

0

45

Gravely 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$6.49

$

In Stock, Qty 9

0

46

Gravely 03H1836

BOLT, 3/8-16X3.50 CRG 5 Y

$

$

Not available

47

Gravely 03H1809

BOLT, 3/8X4 SHTNK RDHD BOLT A1

$

$

Not available

48

Gravely 00963019

BOLT, 3/8-16X1.00 CRG 5 SN Y

$

$

Not available

49

Gravely 06223100

BLT-RDHDSQNK .50-13X1.50 G5YZ
(Superseded to 06200421)

$5.49

$

Usually ships in 4-12 days

0
