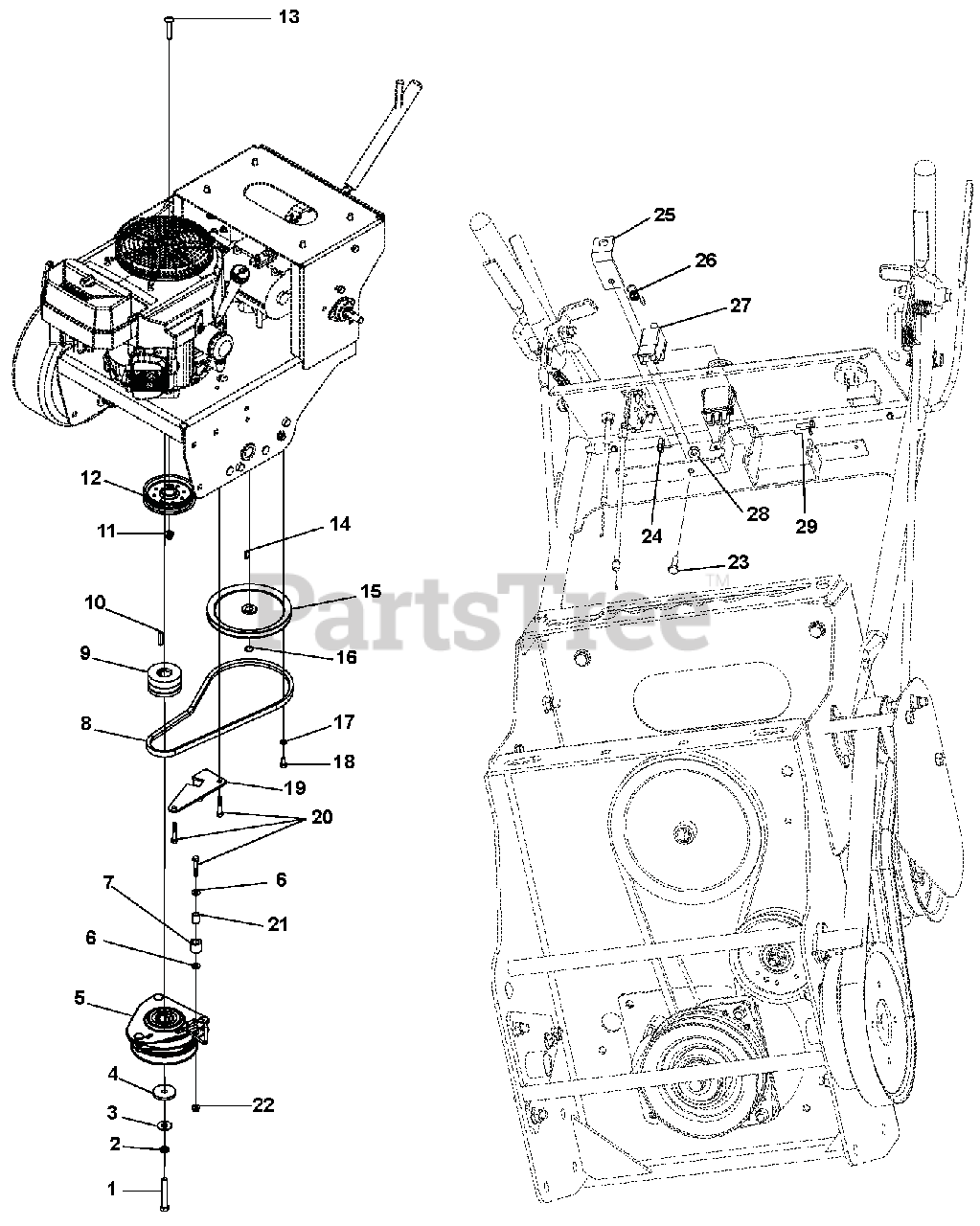

988411 (EGWKA1336S) - EverRide Pro Walk-Behind Mower (SN: 000101 - 000400) Transmission & Console Parts Diagram

Pro Walk-Behind Mower

Transmission & Console Parts Diagram

  • Title

1

Gravely D14252

BOLT, 7/16-20X3.00 HEX 5 Y
(Superseded to 05900037)

$6.99

$

In Stock, only 3 left!

0

2

Gravely 00960603

WASHER, .438 MED SPRG LOCK Y
(Superseded to 06309300)

$2.99

$

In Stock, only 2 left!

0

3

Gravely 06441000

@WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$2.99

$

In Stock, Qty 13

0

4

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, Qty 20+

0

5

Gravely 00200665

CLUTCH ASSY, OGURA# GT1A-HU02

$387.99

$

In Stock, only 1 left!

0

6

Gravely 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 8

0

7

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$5.99

$

In Stock, Qty 8

0

8

Gravely 07225500

V-BELT, HA-RAW EDGE

$38.99

$

In Stock, Qty 13

0

9

Gravely 07300501

SHEAVE,ENGINE 1.002IDX3.222PIN

$131.99

$

In Stock, only 1 left!

0

10

Gravely 06606900

KEY-SQ .248X1.25X.248

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

12

Gravely D18314

PULLEY, V-BELT4.00X.379 W/BRG
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

13

Gravely 06203200

BLT-RDHDSQNK .38-16X2.00 SHTYW
(Superseded to 06200323)

$2.99

$

In Stock, Qty 17

0

14

Gravely 06608700

KEY-WDRF .19X.75 HRD #9

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07328600

PLY-V 7.50 X .626

$68.99

$

In Stock, only 1 left!

0

16

Gravely 05711900

RG-RTNG-EXT .579X.035

$0.99

$

In Stock, Qty 16

0

17

Gravely AA960601

WASHER, .313 MED SPRG LOCK Y
(Superseded to 06308600)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 00960022

BOLT, 5/16-18X.750 HEX 5 Y

$

$

Not available

19

Gravely 03371051

WMT, CLUTCH STOP

$

$

Not available

20

Gravely 00960026

BOLT, 5/16-18X1.75 HEX 5 Y
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

21

Gravely 08905500

BUSH.,S.407X.625X.813 ST

$13.99

$

In Stock, only 1 left!

0

22

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 15

0

23

Gravely 00960001

BOLT, 1/4-20X.750 HEX 5 Y

$

$

Not available

24

Gravely 00964013

LOCKNUT, 10-24 NYLOC Y

$

$

Not available

25

Gravely 04928951

BRACKET, BRAKE LINK
(Superseded to 78806400)

$206.99

$

In Stock, only 1 left!

0

26

Gravely 08337000

SPRING-EXT .047X.438X1.45

$5.99

$

In Stock, only 2 left!

0

27

Gravely 08828100

SWITCH,INTERLOCK

$20.99

$

Usually ships in 4-12 days

0

28

Gravely 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

29

Gravely 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

Usually ships in 4-12 days

0

30

Gravely 03298700

HARNESS- GEAR

Note: (not shown)

$158.99

$

Usually ships in 4-12 days

0
