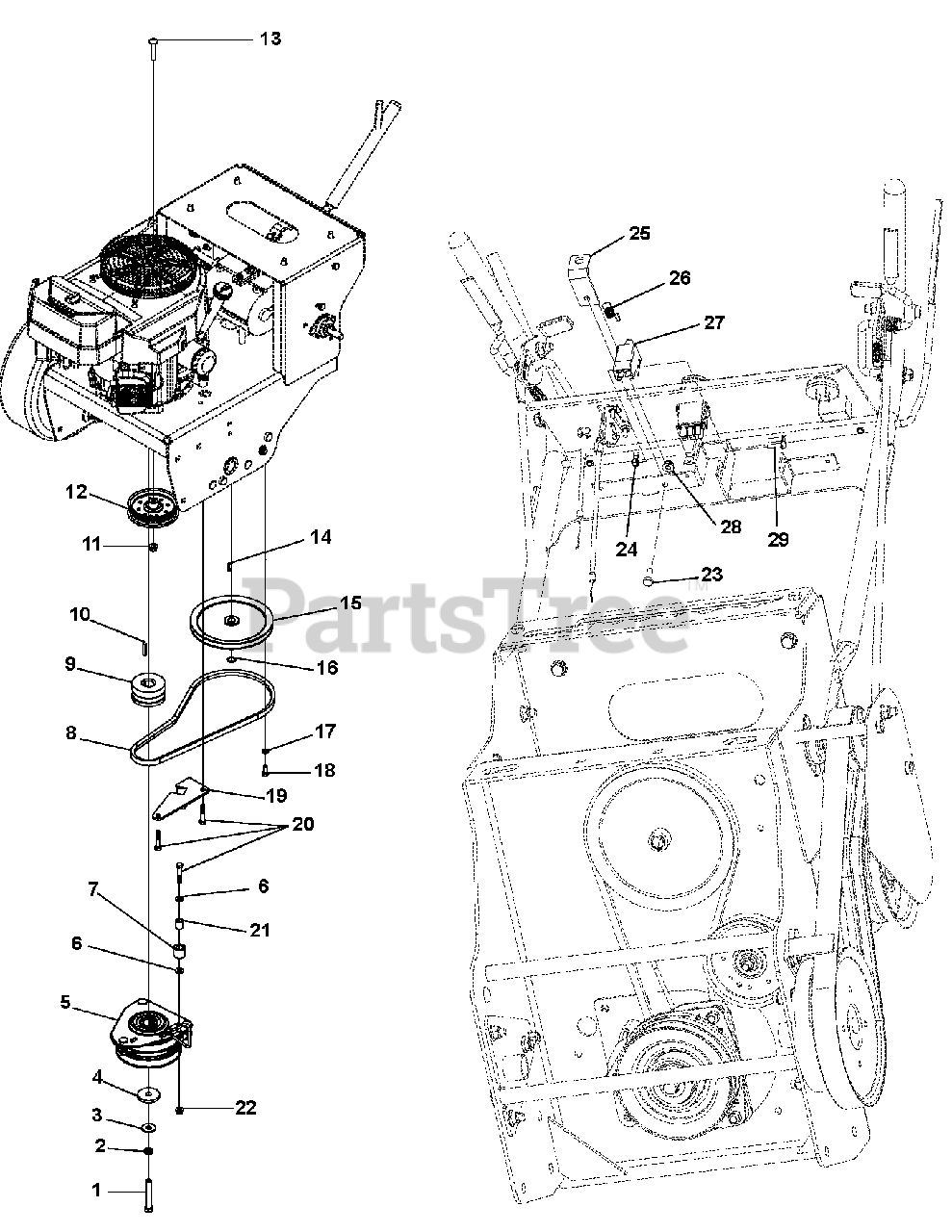

988411 (EGWKA1336S) - EverRide Pro Walk-Behind Mower (SN: 000401 & Above) Transmission and Console Parts Diagram

Pro Walk-Behind Mower

Transmission and Console Parts Diagram

  • Title

1

Gravely D14252

Bolt, .4375-20 x 3.00 Hex 5
(Superseded to 05900037)

$7.49

$

In Stock, Qty 19

0

2

Gravely 00960603

Washer, .438 Medium Spring Lock
(Superseded to 06309300)

$2.99

$

In Stock, Qty 5

0

3

Gravely 06441000

Washer, Flat-Steel .50 x 1.25 x .083
(Superseded to 06401202)

$3.49

$

In Stock, only 4 left!

0

4

Gravely 06443600

Washer, Flat-Steel .469 x 2.00 x .25
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

5

Gravely 00200665

Clutch Assembly, OGURA

$383.99

$

In Stock, only 2 left!

0

6

Gravely 06435800

Washer, Flat-Steel.312 x .734 x .065
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07500007

Bumper, Rubber .62 x 1.0 x .88 LG

$6.49

$

In Stock, Qty 8

0

8

Gravely 07225500

Belt, HA 40.60 Raw Laminated

$40.99

$

In Stock, only 2 left!

0

9

Gravely 07300501

Sheave,1.002ID x 3.222PIN

$149.99

$

In Stock, only 1 left!

0

10

Gravely 06606900

Key, Square .248 x 1.25 x .248

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 07300039

Assembly, Idler 4"
(Superseded to 07350100)

$50.99

$

In Stock, Qty 20+

0

13

Gravely 06203200

Bolt, Round Head Square Neck .38-16 x 2.00 SHTPL
(Superseded to 06200323)

$2.99

$

In Stock, Qty 18

0

14

Gravely 06608700

Key, Woodruff .19 x .75 HRD#9

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07328600

Pulley, V 7.50 x .626

$71.99

$

In Stock, Qty 8

0

16

Gravely 05711900

Ring, Retaining-External .579 x .035

$1.49

$

In Stock, Qty 20+

0

17

Gravely AA960601

Washer, .313 Medium Spring Lock
(Superseded to 06308600)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 00960022

Bolt, .3125-18 x .750 Hex 5

$

$

Not available

19

Gravely 04061951

Weldment, Clutch Stop

$19.99

$

Usually ships in 4-12 days

0

20

Gravely 00960026

Bolt, .3125-18 x 1.75 Hex 5
(Superseded to 05901804)

$3.49

$

In Stock, Qty 5

0

21

Gravely 08905500

Bushing, S .407 x .625 x .813 ST

$14.99

$

In Stock, only 2 left!

0

22

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 00960001

Bolt, .25-20 x .750 Hex 5

$

$

Not available

24

Gravely 00964013

Locknut, 10-24 Nyloc

$

$

Not available

25

Gravely 04928951

Bracket, Brake Link
(Superseded to 78806400)

$237.99

$

Usually ships in 4-12 days

0

26

Gravely 08337000

Spring, Tension .047 x .438 x 1.45

$6.49

$

In Stock, Qty 10

0

27

Gravely 08828100

Switch, Interlock

$21.99

$

In Stock, Qty 6

0

28

Gravely 06500012

Nut, .25-20 Nyloc Flange
(Superseded to 06500813)

$1.99

$

Usually ships in 4-12 days

0

29

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 6

0

30

Gravely 03298700

Harness, Wire Pro Gear

$183.99

$

Usually ships in 4-12 days

0
