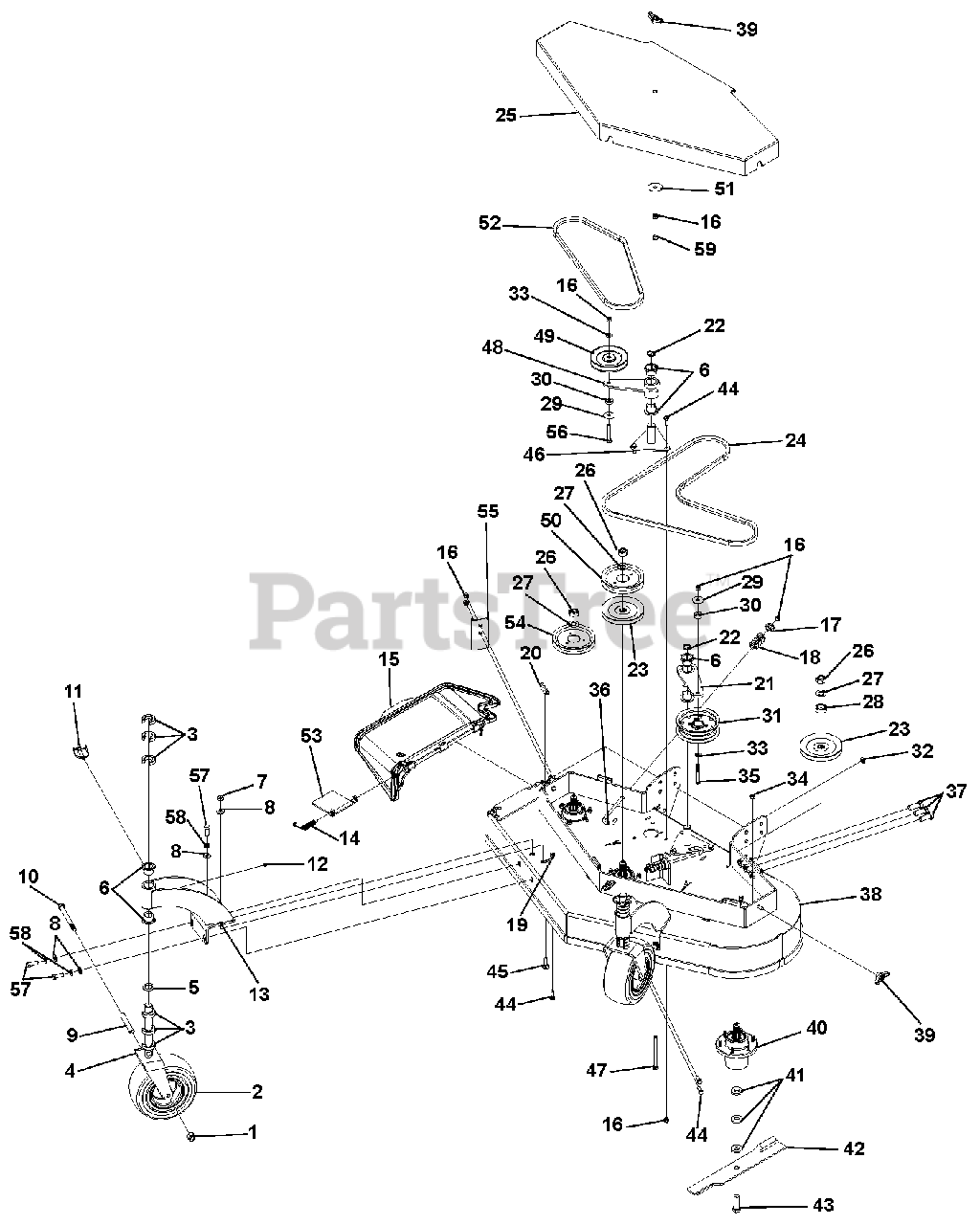

988412 (EGWKA1548S) - EverRide Pro Walk-Behind Mower (SN: 000101 - 000400) Deck Assembly - 48" Parts Diagram

Pro Walk-Behind Mower

Deck Assembly - 48" Parts Diagram

  • Title

1

Gravely 00964015

Locknut, .50-13 Nyloc
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

2

Gravely 07100302

Assembly, Wheel and Tire 9 x 3.5
(Superseded to 07100931)

$151.99

$

In Stock, only 2 left!

0

3

Gravely 00164145

C-Spacer, 1.00 x 1.77 x .500

$5.99

$

In Stock, Qty 20+

0

4

Gravely 00200534

Weldment, Caster Yoke w/EverRide Paint

$

$

Not available

5

Gravely D13008

Bushing, 1.03 x 1.50 x .179

$10.99

$

In Stock, Qty 12

0

6

Gravely D18076

Bearing, Flange 1.00 x 1.25 x 1.00

$7.49

$

In Stock, only 3 left!

0

7

Gravely 00964025

Locknut, .4375-14 Crown
(Superseded to 06508200)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 00960702

Washer, .375 Regular Flat
(Superseded to 06435900)

$1.99

$

In Stock, Qty 20+

0

9

Gravely D13003

Tube, Caster Axle

$21.99

$

In Stock, only 1 left!

0

10

Gravely 00960129

Bolt, .50-13 x 5.50 Hex 5
(Superseded to 05901632)

$7.49

$

In Stock, only 2 left!

0

11

Gravely 00161397

Pin, LNC .438 x 2.00

$9.99

$

In Stock, only 2 left!

0

12

Gravely 00959995

Fitting, .25-28 STRGT Grease Zerk

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 00203856

Weldment, Caster Support w/EverRide Paint

$

$

Not available

14

Gravely 03393800

Spring, Torsion .460 x .138

$6.49

$

Usually ships in 4-12 days

0

15

Gravely TCA16387

Chute Discharge Assembly

$37.99

$

In Stock, only 2 left!

0

16

Gravely 00968087

Locknut, .38-16 Nyloc

$

$

Not available

17

Gravely D33062

Keeper, Spring

$40.99

$

Usually ships in 4-12 days

0

18

Gravely D38128

Spring, COM 1.22 x .162 x 2.50

$18.99

$

Usually ships in 4-12 days

0

19

Gravely 00964022

Locknut, .38-16 Crown

$

$

Not available

20

Gravely 00999538

Trim, 1/4" Trim-LOK

$6.49

$

Usually ships in 4-12 days

0

21

Gravely 03371951

Weldment, Idler Arm

$

$

Not available

22

Gravely 00424390

Snap Ring, 1.00 x .042 External
(Superseded to 05700160)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely D18083

Pulley, Narrow Spline
(Superseded to 07329567)

$93.99

$

In Stock, only 2 left!

0

24

Gravely 07200504

Belt, HB Wrapped CARLISLE

$70.99

$

In Stock, only 4 left!

0

25

Gravely 03398461

Weldment, 48" Belt Shield EverRide

$

$

Not available

26

Gravely 00964024

Locknut, .75-16 Crown
(Superseded to 06500031)

$3.99

$

In Stock, Qty 20+

0

27

Gravely 03399703

Washer, .75 x 1.3125 x .120
(Superseded to 06401037)

$2.49

$

In Stock, Qty 10

0

28

Gravely D13024

Spacer, Spindle Top-Pulley

$14.99

$

In Stock, only 2 left!

0

29

Gravely 00964502

Washer, Flat .375 x 1.50 x .063
(Superseded to 06439300)

$3.49

$

In Stock, Qty 20+

0

30

Gravely D13023

Bushing, .380 x 1.00 x .410

$20.99

$

Usually ships in 4-12 days

0

31

Gravely D18032

Pulley, Flat 5.00 x .375 w/BRG
(Superseded to 07346700)

$82.99

$

In Stock, Qty 6

0

32

Gravely H141123

Retainer

$

$

Not available

33

Gravely 00964501

Washer, .406 x .813 x .065 Flat
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 00960502

Nut, .38-16 Standard Hex Grade 5

$

$

Not available

35

Gravely 00960053

Bolt, .38-16 x 2.75 Hex 5
(Superseded to 05961400)

$4.99

$

In Stock, Qty 20+

0

36

Gravely D23040

J-Bolt, .38-16 x 7.88

$11.99

$

Usually ships in 4-12 days

0

37

Gravely 05901321

Bolt, Hex .625-11 1.5 Grade 8
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

38

Gravely 68823001

48" Wasp Gear Deck with Decals

$

$

Not available

39

Gravely M119352

Knob, .38-16 Insert

$3.99

$

In Stock, only 4 left!

0

40

Gravely 00200262

Assembly, Spindle Housing

$294.99

$

In Stock, only 1 left!

0

41

Gravely D18055

Washer, .630 x 1.50 x .250 Flat
(Superseded to 06401033)

$7.49

$

In Stock, only 4 left!

0

42

Gravely GDU10230

Blade, 16.500 x .80 Lift

$29.99

$

In Stock, Qty 10

0

43

Gravely 00967348

Bolt, .625-11 x 2.00 Hex 8
(Superseded to 05901725)

$6.49

$

In Stock, only 2 left!

0

44

Gravely 00960046

Bolt, .38-16 x 1.00 Hex 5
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

45

Gravely 00963029

Bolt, .4375-14 x 1.25 CRG 5
(Superseded to 06200130)

$

$

Not available

46

Gravely 00203918

Weldment, Idler Pivot Mount
(Superseded to 05180151)

$49.99

$

Usually ships in 4-12 days

0

47

Gravely D14237

Bolt, .38-16 x 5.00 Tapping
(Superseded to 05901506)

$4.99

$

Usually ships in 4-12 days

0

48

Gravely D15032

Weldment, Idler Arm

$34.99

$

Usually ships in 4-12 days

0

49

Gravely D18031

Pulley, Idler 5.0 V-GROOVE

$40.99

$

In Stock, Qty 5

0

50

Gravely D18084

Spline, Spindle Pulley Offset
(Superseded to 07329667)

$98.99

$

In Stock, only 2 left!

0

51

Gravely D24019

Washer, .402 x 2.00 x .055

$

$

Not available

52

Gravely D38019

Belt, HB 51.4 Elbow AMD

$34.99

$

Usually ships in 4-12 days

0

53

Gravely 00200095

Bracket, Chute Support

$25.99

$

Usually ships in 4-12 days

0

54

Gravely 03399702

Pulley, Spline Spindle LSE

$76.99

$

In Stock, Qty 5

0

55

Gravely 03754061

Plate, Extender

$

$

Not available

56

Gravely 00960052

Bolt, .38-16 x 2.50 Hex 5

$

$

Not available

57

Gravely 00960080

Bolt, .4375-14 x 1.25 Hex 5
(Superseded to 05963800)

$2.99

$

Usually ships in 4-12 days

0

58

Gravely 00960603

Washer, .438 Medium Spring Lock
(Superseded to 06309300)

$2.99

$

In Stock, Qty 6

0

59

Gravely 00964016

Locknut, .38-16 Whiz
(Superseded to 06534900)

$1.99

$

In Stock, Qty 20+

0
