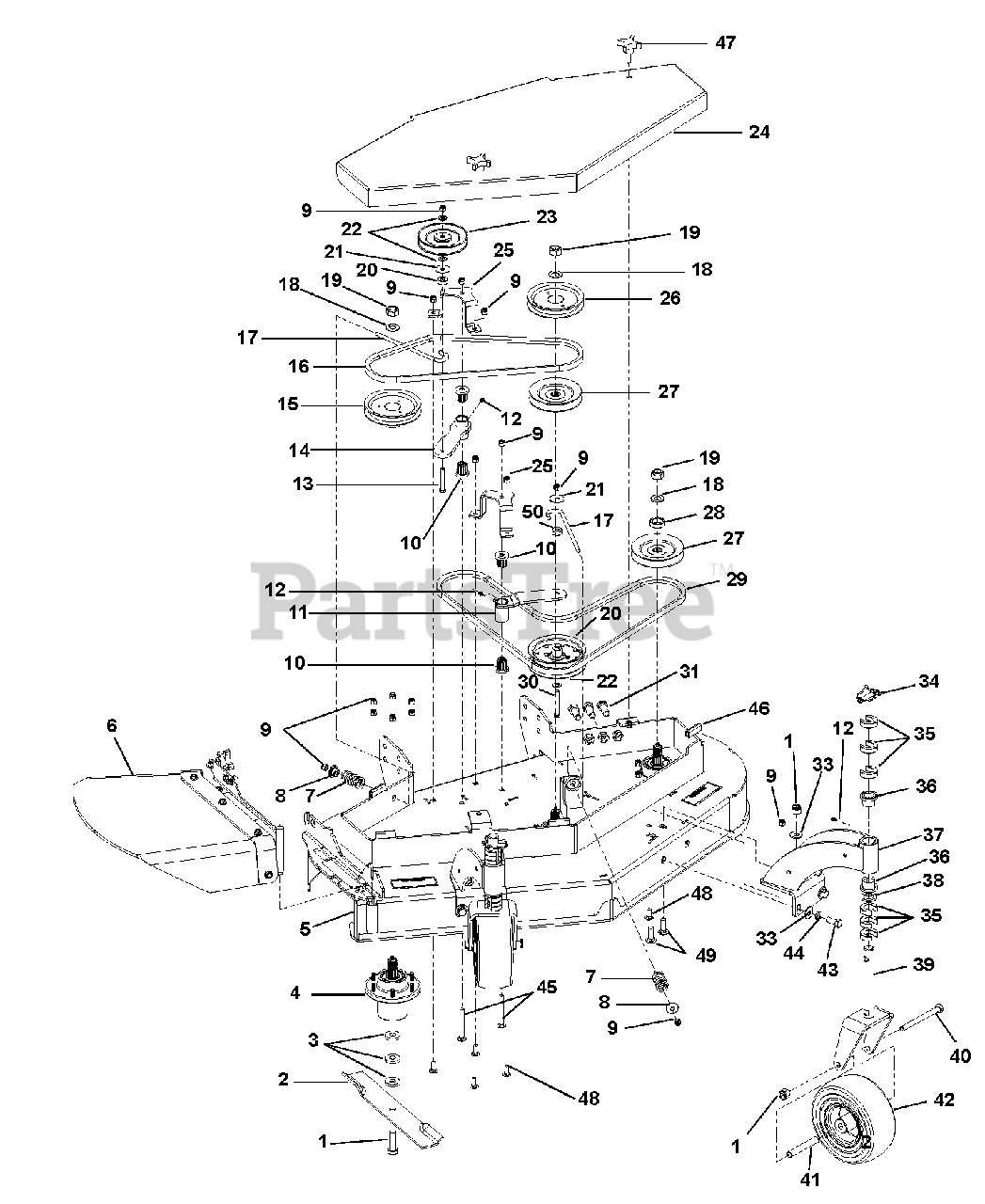

988412 (EGWKA1548S) - EverRide Pro Walk-Behind Mower (SN: 000401 & Above) Deck Assembly 48" Parts Diagram

Pro Walk-Behind Mower

Deck Assembly 48" Parts Diagram

  • Title

1

Gravely 00967348

Bolt, .625-11 x 2.00 Hex 8
(Superseded to 05901725)

$5.99

$

In Stock, Qty 12

0

2

Gravely GDU10230

Blade, 16.500 Lo-Lift

$27.99

$

In Stock, Qty 20+

0

3

Gravely D18055

Washer, Blade
(Superseded to 06401033)

$6.99

$

In Stock, only 4 left!

0

4

Gravely 00200262

Assembly, Spindle Housing

$250.99

$

In Stock, only 1 left!

0

5

Gravely 50522009

48" EverRide Gear Deck with Decals

$

$

Not available

6

Gravely 56155061

Discharge Shield Assembly

$

$

Not available

7

Gravely D38128

Spring, COM 1.22 x .162 x 2.50

$18.99

$

Usually ships in 4-12 days

0

8

Gravely D33062

Keeper, Spring

$38.99

$

Usually ships in 4-12 days

0

9

Gravely 00968087

Locknut, .38-16 Nyloc

$

$

Not available

10

Gravely TCU14540

Bearing, Flange M10 x M25 x M27 Fluted

$14.99

$

In Stock, only 2 left!

0

11

Gravely 04056251

Weldment, Idler Arm w/Offset

$68.99

$

Usually ships in 4-12 days

0

12

Gravely 00959995

Fitting, .25-28 STRGT Grease Zerk

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 05958400

Bolt, .38-16 x 2.50 Hex Grade 5
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

14

Gravely 03996351

Weldment, Idler

$

$

Not available

15

Gravely 03399702

Pulley, Spline Spindle Offset

$75.99

$

Usually ships in 4-12 days

0

16

Gravely D38019

Belt, HB 51.4 Elbow AMD

$28.99

$

Usually ships in 4-12 days

0

17

Gravely D23040

J-Bolt, .375-16 x 7.88

$11.99

$

Usually ships in 4-12 days

0

18

Gravely 03399703

Washer, .75 x 1.313 x .113

$3.99

$

In Stock, Qty 11

0

19

Gravely 00964024

Locknut, .75-16 Crown
(Superseded to 06500031)

$3.99

$

In Stock, Qty 12

0

20

Gravely D18032

Pulley, Flat 5.00 x .375 w/BRG
(Superseded to 07346700)

$79.99

$

In Stock, only 3 left!

0

21

Gravely 00964502

Washer, Flat .375 x 1.50 x .063
(Superseded to 06439300)

$3.49

$

In Stock, Qty 12

0

22

Gravely 00964501

Washer, .406 x .813 x .065 Flat
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

23

Gravely D18031

Pulley, V-Belt 5.0

$39.99

$

In Stock, Qty 6

0

24

Gravely 04058661

Weldment, 48" Belt Shield EverRide

$

$

Not available

25

Gravely 04054951

Bracket, Idler

$

$

Not available

26

Gravely D18084

Pulley, Spline Spindle Offset
(Superseded to 07329667)

$90.99

$

In Stock, only 1 left!

0

27

Gravely 03854502

Pulley, Spline Spindle SH

$60.99

$

Usually ships in 4-12 days

0

28

Gravely D13024

Spacer, 1.500 x 1.000 x .510

$10.99

$

In Stock, only 2 left!

0

29

Gravely 07200533

Belt, HB Wrapped 83.2

$71.99

$

Usually ships in 4-12 days

0

30

Gravely 05961400

Bolt, .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$3.99

$

In Stock, Qty 20+

0

31

Gravely 05901321

Bolt, Hex .625-11 1.5 Grade 8
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

32

Gravely 00964015

Locknut, .50-13 Nyloc
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

33

Gravely 00960703

Washer, .438 Regular Flat

$

$

Not available

34

Gravely 00161397

Pin, LNC .438 x 2.00

$9.49

$

In Stock, only 2 left!

0

35

Gravely 00164145

C-Spacer, 1.00 x 1.77 x .500

$3.99

$

In Stock, Qty 7

0

36

Gravely D18076

Bearing, Flange 1.00 x 1.25 x 1.00

$5.99

$

In Stock, only 3 left!

0

37

Gravely 03987461

Weldment, Strut Front FXWLK w/ EverRide Paint

$

$

Not available

38

Gravely D13008

Bushing, 1.03 x 1.50 x .179

$9.99

$

Usually ships in 4-12 days

0

39

Gravely 00200534

Weldment, Caster Yoke w/ EverRide Paint

$

$

Not available

40

Gravely 05964100

Bolt, .50-13 x 5.50 Hex Grade 5
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

41

Gravely D13003

Tube, Caster Axle

$20.99

$

In Stock, only 2 left!

0

42

Gravely 07100302

Assembly, Wheel and Tire 9 x 3.5
(Superseded to 07100931)

$136.99

$

In Stock, only 4 left!

0

43

Gravely 05958900

Bolt, .50-13 x 1.25 Hex 5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

44

Gravely 00960604

Washer, .500 Medium Spring Lock

$

$

Not available

45

Gravely 03H1836

Bolt, .375-16 x 3.50 Round Head Square Neck Grade 5

$

$

Not available

46

Gravely 00999538

Trim, 1/4" Trim-LOK

$5.99

$

Usually ships in 4-12 days

0

47

Gravely 03820400

Knob, .375 x 1.25-4 Prong

$10.99

$

In Stock, only 3 left!

0

48

Gravely 06223600

Bolt, .38-16 x 1.00 Round Head Square Neck Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 20+

0

49

Gravely 06223100

Bolt, .50-13 x 1.50 Round Head Square Neck Grade 5
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

50

Gravely D13023

Bushing, .380 x 1.00 x .410

$19.99

$

Usually ships in 4-12 days

0
