988641 (GHWKA1948S) - Great Dane Scamper 48" Walk-Behind Mower, 19hp Kawasaki, Hydro (SN: 000101 & Above) Frame and Engine Assembly Parts Diagram

Scamper 48" Walk-Behind Mower, 19hp Kawasaki, Hydro

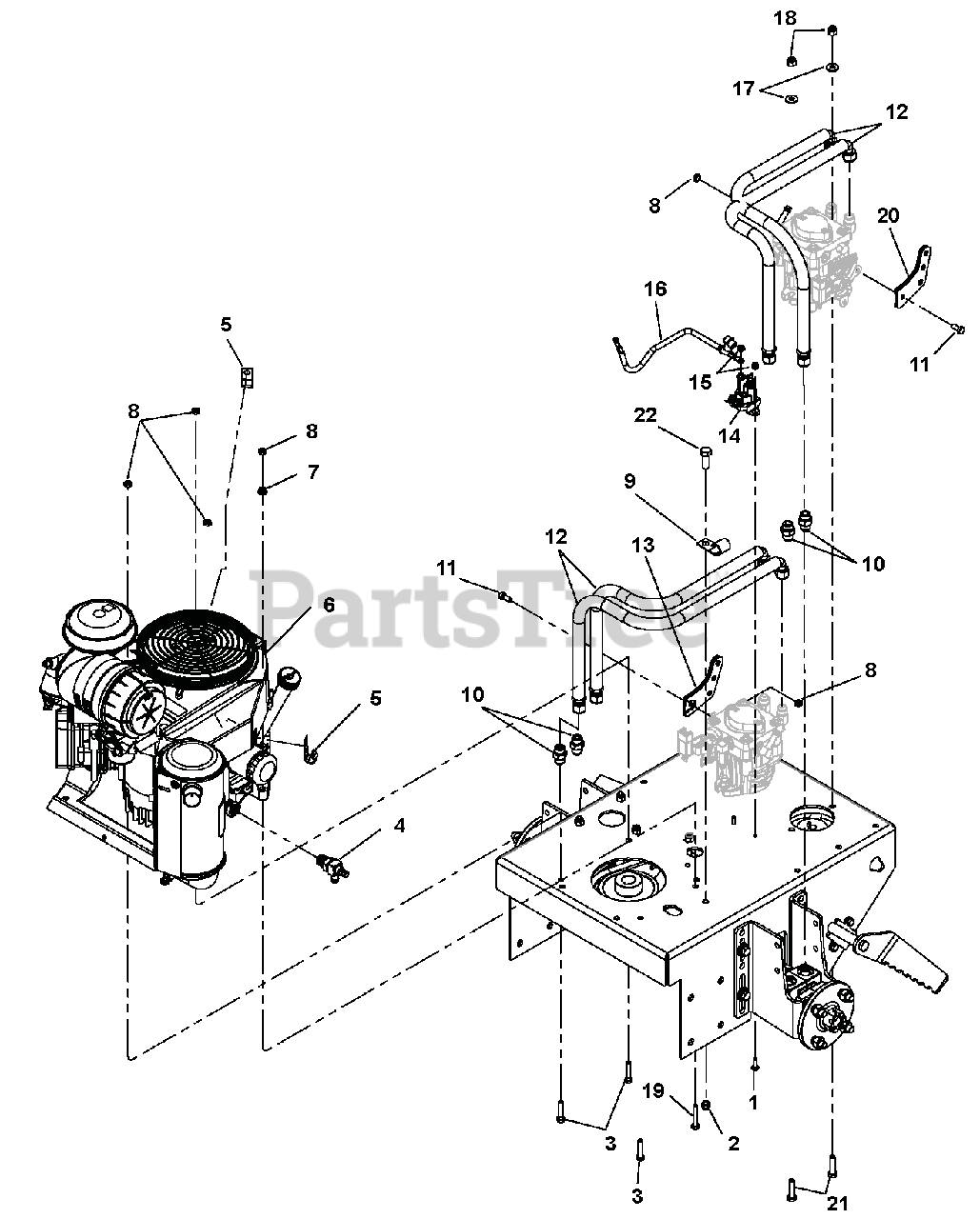

Frame and Engine Assembly Parts Diagram

  • Title

1

Ariens 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 13

0

2

Ariens 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

3

Ariens 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 6

0

4

Ariens TCA16240

FITTING, OIL DRAIN #

$

$

Not available

5

Ariens AH89557

P-CLIP, .500 INSULATED

$5.49

$

In Stock, only 1 left!

0

6

Ariens 00200675

ENGINE, KAWASAKI 19HP FH580V

Note: (988641)

$

$

Not available

Ariens 00200342

ENGINE, KAWASAKI 15HP VERT

Note: (988640)

$

$

Not available

7

Ariens 00964019

LOCKNUT, 5/16-18 WHIZ Y
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

8

Ariens 00967115

LOCKNUT, 5/16-18 NYLOC Y
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

9

Ariens AH89557

P-CLIP, .500 INSULATED

$5.49

$

In Stock, only 1 left!

0

10

Ariens D14197

FITTING, STRAIGHT

$

$

Not available

11

Ariens 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

12

Ariens 00201091

HOSE, HYD 1/2 X 26 1/2 EZFLEX

$78.99

$

Usually ships in 4-12 days

0

13

Ariens 03732751

WLDT, CSWS HYDRO PUMP ARM

$

$

Not available

14

Ariens 03551000

SOLENOID

$43.99

$

In Stock, Qty 9

0

15

Ariens 00964048

LOCKNUT, 1/4-20 NYLOC Y

$

$

Not available

16

Ariens 00180842

CABLE, 12" STARTER

$15.99

$

Usually ships in 4-12 days

0

17

Ariens 00960701

WASHER, .313 REG FLAT Y
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

18

Ariens 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

19

Ariens 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 7

0

20

Ariens 03754851

WLDT, CSWS LH HYDRO PUMP ARM

$

$

Not available

21

Ariens 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 10

0

22

Ariens 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0
