988811 (PWKA1636S0) - Ariens Professional 36" Walk-Behind Mower, 16hp Kawasaki, Gear (SN: 000101 & Above)

Professional 36" Walk-Behind Mower, 16hp Kawasaki, Gear

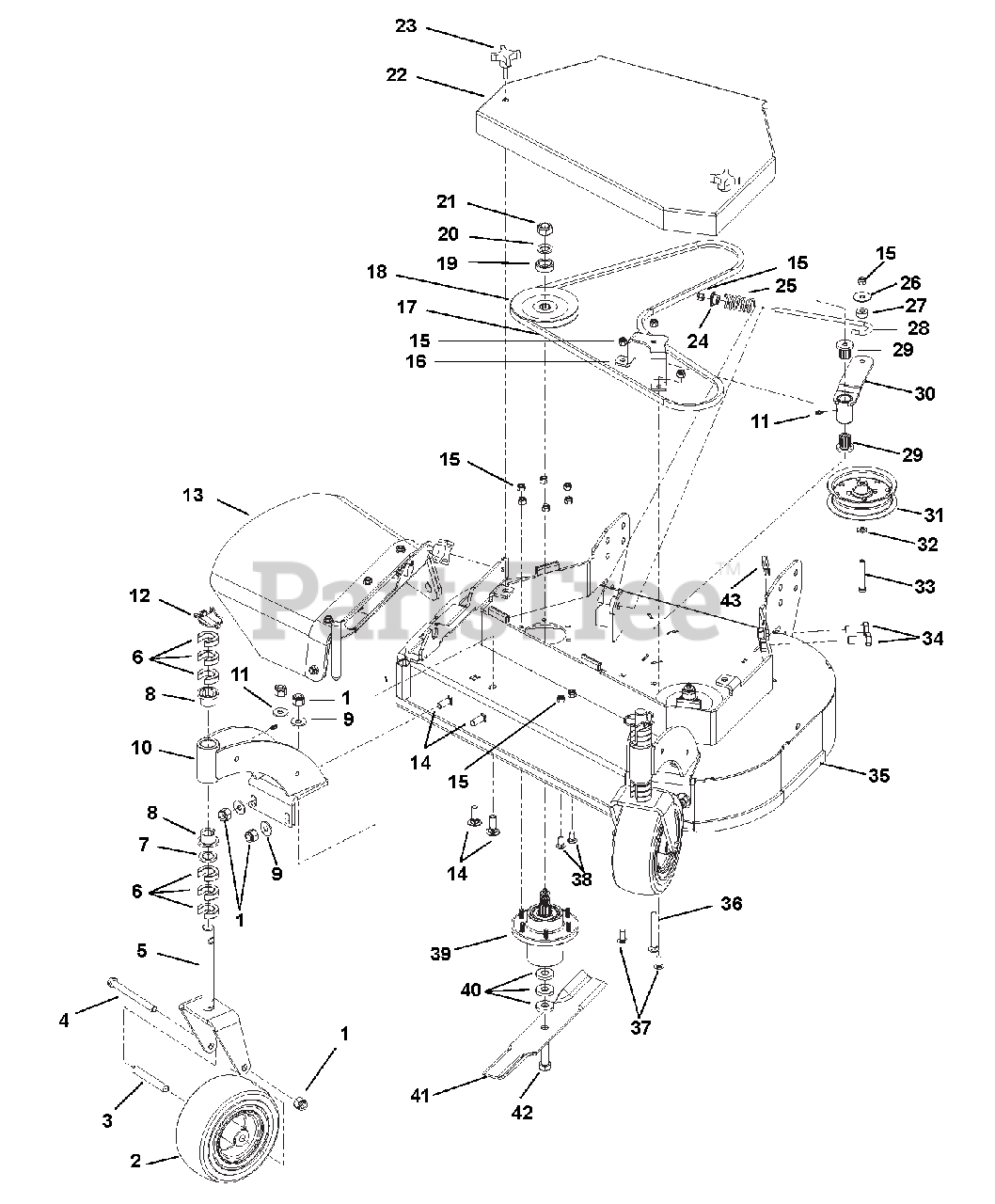

988811 (PWKA1636S0) - Ariens Professional 36" Walk-Behind Mower, 16hp Kawasaki, Gear (SN: 000101 & Above) > Parts Diagrams (10) > Deck Assembly 36 inch

  • Title
00964015

1

LOCKNUT, 1/2-13 NYLOC Y

Part# 00964015 (Superseded to 06540600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

07100302

2

ASSY, WHEEL AND TIRE 9X3.5

Part# 07100302 (Superseded to 07100931)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $111.74

D13003

3

TUBE, CASTER AXLE

Part# D13003

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.71

05964100

4

@BLT-HEX .50-13X5.50 GR5YWZC

Part# 05964100

OEM Warranty Repair Part for Ariens

Not available

00203959

5

WLDT, CASTER YOKE ARIENS

Part# 00203959

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $110.63

00164145

6

C-SPACER, 1.00 X 1.77 X .500

Part# 00164145

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

D13008

7

BUSHING, 1.03 X 1.50 X .179 Y

Part# D13008

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

D18076

8

BRG, FLG 1.00X1.25X1.00

Part# D18076

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

00960703

9

MANUAL, OWNERS RAPID XZ FRENCH

Part# 00960703

OEM Warranty Repair Part for Ariens

Not available

03987459

10

WLDT, STRUT FRONT WHEEL ARIENS

Part# 03987459

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $128.51

00959995

11

FTG, 1/4-28 STRGT GREASE ZERK

Part# 00959995

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

00161397

12

PIN, KLIK .438X2.00

Part# 00161397

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

56155059

13

ASSY, DISCHARGE SHIELD ARIENS

Part# 56155059

OEM Warranty Repair Part for Ariens

Not available

06223100

14

@BLT-RDHDSQNK .50-13X1.50 G5YZ

Part# 06223100

OEM Warranty Repair Part for Ariens

Not available

00968087

15

LOCKNUT, 3/8-16 NYLOC Y

Part# 00968087

OEM Warranty Repair Part for Ariens

Not available

04054951

16

BRACKET, IDLER

Part# 04054951

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

00201010

17

BELT, HB 80.3 EL AMD OHR

Part# 00201010

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $63.78

D18083

18

PULLEY, NARROW SPLINE

Part# D18083 (Superseded to 07329567)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $55.29

D13024

19

SPACER, SPINDLE TOP-PULLEY

Part# D13024

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

03399703

20

WASHER, .75X1.3125X.120

Part# 03399703

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06500031

21

LOCKNUT, 3/4-16 CROWN GR 8 Y

Part# 06500031

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

04057959

22

WLDT, BELT SHIELD 36"GRWLK ARI

Part# 04057959

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $55.34

03820400

23

KNOB, 3/8 X 1.25 - 4 PRONG

Part# 03820400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

D33062

24

KEEPER, SPRING

Part# D33062

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

D38128

25

SPRING, COM 1.22X.162X2.50 Y

Part# D38128

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

00964502

26

WASHER, .375X1.50X.063 FLAT Y

Part# 00964502 (Superseded to 06439300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

D13023

27

BUSHING, .380 X 1.00 X .410 Y

Part# D13023

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

D23040

28

J-BOLT, 3/8-16 X 7.88 Y

Part# D23040

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.59

TCU14540

29

BRG, FLG M10XM25XM27 FLUTED

Part# TCU14540

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

04056251

30

WLDT, IDLER ARM WITH OFFSET

Part# 04056251

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.07

D18032

31

PULLEY, FLAT 5.00X.375 W/BRG

Part# D18032 (Superseded to 07346700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $39.07

00964501

32

WASHER, .406X.813X.065 FLAT Y

Part# 00964501

OEM Warranty Repair Part for Ariens

Not available

05961400

33

@BLT-HEX .38-16X2.75 GR5 YWZC

Part# 05961400 (Superseded to 05901611)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05901321

34

BOLT, HEX 5/8-11 1.5" GR8 YWZC

Part# 05901321

OEM Warranty Repair Part for Ariens

Not available

50568000

35

ASSY, 36" DECK W/DECALS ARIENS

Part# 50568000

OEM Warranty Repair Part for Ariens

Not available

03H1836

36

BOLT, 3/8-16X3.50 CRG 5 Y

Part# 03H1836

OEM Warranty Repair Part for Ariens

Not available

00963019

37

BOLT, 3/8-16X1.00 CRG 5 SN Y

Part# 00963019

OEM Warranty Repair Part for Ariens

Not available

06200004

38

@BLT-RHDSSQNK .38-16X.75 G5YZ

Part# 06200004

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.98

00200262

39

ASSY, SPINDLE S/O

Part# 00200262

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $212.36

D18055

40

WASHER, .630X1.50X.250 FLAT Y

Part# D18055 (Superseded to 06400913)

OEM Warranty Repair Part for Ariens

Not available

GDU10231

41

BLADE, 18.000 X .80 LIFT

Part# GDU10231

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

00967348

42

BOLT, 5/8-11 X 2.00 HEX 8 Y

Part# 00967348 (Superseded to 05970002)

OEM Warranty Repair Part for Ariens

Not available

00999538

43

TRIM, LOCK 1/4" EDGE

Part# 00999538

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53
