988812 (PWKA1648S) - Ariens Professional 48" Walk-Behind Mower, 16hp Kawasaki, Gear (SN: 000101 & Above) Deck Assembly 48 inch Parts Diagram

Professional 48" Walk-Behind Mower, 16hp Kawasaki, Gear

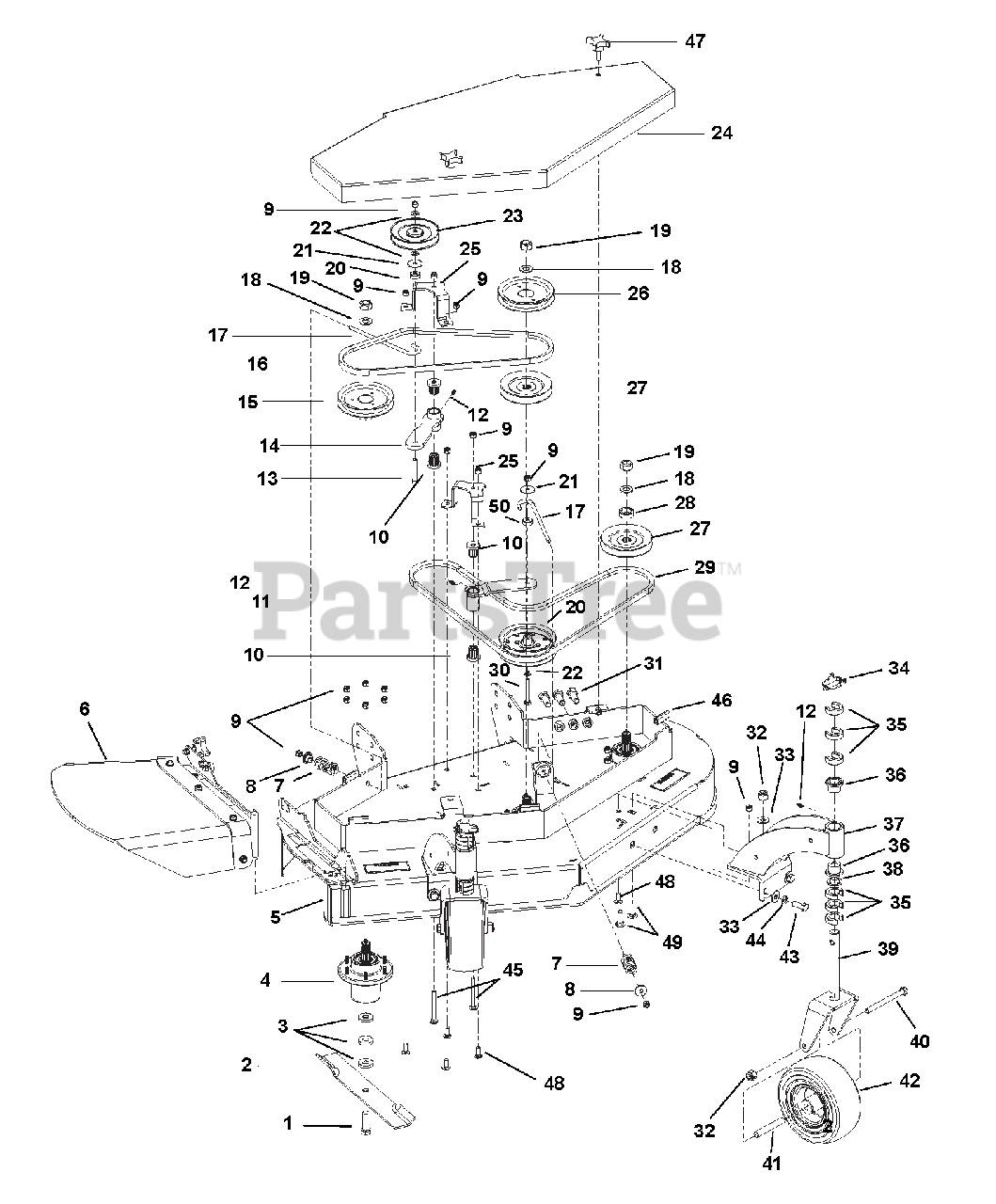

Deck Assembly 48 inch Parts Diagram

  • Title

1

Ariens 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$6.99

$

In Stock, Qty 7

0

2

Ariens GDU10230

BLADE, 16.500 X .80 LIFT

$30.99

$

In Stock, Qty 5

0

3

Ariens D18055

WASHER, .630X1.50X.250 FLAT Y
(Superseded to 06401033)

$7.99

$

In Stock, only 3 left!

0

4

Ariens 00200262

ASSY, SPINDLE S/O

$307.99

$

Usually ships in 4-12 days

0

5

Ariens 50568001

DECK W/DECALS 48 ARIENS GRWLK

$

$

Not available

6

Ariens 56155059

ASSY, DISCHARGE SHIELD ARIENS

$

$

Not available

7

Ariens D38128

SPRING, COM 1.22X.162X2.50 Y

$19.99

$

Usually ships in 4-12 days

0

8

Ariens D33062

KEEPER, SPRING

$42.99

$

Usually ships in 4-12 days

0

9

Ariens 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

10

Ariens TCU14540

BRG, FLG M10XM25XM27 FLUTED

$19.99

$

In Stock, only 4 left!

0

11

Ariens 04056251

WLDT, IDLER ARM WITH OFFSET

$73.99

$

Usually ships in 4-12 days

0

12

Ariens 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$4.99

$

In Stock, only 2 left!

0

13

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$3.49

$

In Stock, Qty 20+

0

14

Ariens 03996351

WLDT, IDLER 36 FXWLK G2

$54.99

$

Usually ships in 4-12 days

0

15

Ariens 03399702

PULLEY, SPLINE SPINDLE LSE

$79.99

$

In Stock, only 2 left!

0

16

Ariens D38019

BELT, HB 51.4 EL AMD

$36.99

$

Usually ships in 4-12 days

0

17

Ariens D23040

J-BOLT, 3/8-16 X 7.88 Y

$12.99

$

Usually ships in 4-12 days

0

18

Ariens 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$2.99

$

In Stock, Qty 8

0

19

Ariens 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$4.99

$

In Stock, Qty 16

0

20

Ariens D18032

PULLEY, FLAT 5.00X.375 W/BRG
(Superseded to 07346700)

$86.99

$

In Stock, Qty 9

0

21

Ariens 00964502

WASHER, .375X1.50X.063 FLAT Y
(Superseded to 06439300)

$3.99

$

In Stock, Qty 19

0

22

Ariens 00964501

WASHER, .406X.813X.065 FLAT Y
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

23

Ariens D18031

PULLEY, IDLER 5.0 V-GROOVE

$43.99

$

In Stock, only 4 left!

0

24

Ariens 04058659

WLDT, BELT SHIELD 48 ARIENS

$

$

Not available

25

Ariens 04054951

BRACKET, IDLER

$

$

Not available

26

Ariens D18084

SPLINE, SPINDLE PULLEY OFFSET
(Superseded to 07329667)

$103.99

$

Usually ships in 4-12 days

0

27

Ariens 03854502

PULLEY, SPLINE SPINDLE SH

$64.99

$

Usually ships in 4-12 days

0

28

Ariens D13024

SPACER, SPINDLE TOP-PULLEY

$15.99

$

In Stock, only 2 left!

0

29

Ariens 07200533

BELT, HB WRAPPED

$74.99

$

Usually ships in 4-12 days

0

30

Ariens 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$5.49

$

In Stock, Qty 20+

0

31

Ariens 05901321

BOLT, HEX 5/8-11 1.5" GR8 YWZC
(Superseded to 05901723)

$4.99

$

Usually ships in 4-12 days

0

32

Ariens 00964015

LOCKNUT, 1/2-13 NYLOC Y
(Superseded to 06500830)

$3.49

$

In Stock, Qty 20+

0

33

Ariens 00960703

MANUAL, OWNERS RAPID XZ FRENCH

$

$

Not available

34

Ariens 00161397

PIN, KLIK .438X2.00

$10.99

$

In Stock, only 2 left!

0

35

Ariens 00164145

C-SPACER, 1.00 X 1.77 X .500

$5.99

$

In Stock, only 2 left!

0

36

Ariens D18076

BRG, FLG 1.00X1.25X1.00

$7.99

$

In Stock, Qty 7

0

37

Ariens 03987459

WLDT, STRUT FRONT WHEEL ARIENS

$

$

Not available

38

Ariens D13008

BUSHING, 1.03 X 1.50 X .179 Y

$10.99

$

In Stock, Qty 8

0

39

Ariens 00203959

WLDT, CASTER YOKE ARIENS

$201.99

$

Usually ships in 4-12 days

0

40

Ariens 05964100

@BLT-HEX .50-13X5.50 GR5YWZC
(Superseded to 05901632)

$7.99

$

In Stock, Qty 12

0

41

Ariens D13003

TUBE, CASTER AXLE

$22.99

$

Usually ships in 4-12 days

0

42

Ariens 07100302

ASSY, WHEEL AND TIRE 9X3.5
(Superseded to 07100931)

$158.99

$

In Stock, only 3 left!

0

43

Ariens 05958900

@BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.99

$

In Stock, only 2 left!

0

44

Ariens 00960604

WASHER, .500 MED SPRG LOCK Y

$

$

Not available

45

Ariens 03H1836

BOLT, 3/8-16X3.50 CRG 5 Y

$

$

Not available

46

Ariens 00999538

TRIM, LOCK 1/4" EDGE

$6.99

$

Usually ships in 4-12 days

0

47

Ariens 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$11.99

$

In Stock, only 4 left!

0

48

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$3.49

$

In Stock, Qty 20+

0

49

Ariens 06223100

@BLT-RDHDSQNK .50-13X1.50 G5YZ
(Superseded to 06200421)

$5.99

$

Usually ships in 4-12 days

0

50

Ariens D13023

BUSHING, .380 X 1.00 X .410 Y

$21.99

$

Usually ships in 4-12 days

0
