988812 (PWKA1648S) - Ariens Professional 48" Walk-Behind Mower, 16hp Kawasaki, Gear (SN: 000101 & Above) Handle Bar and Frame Assembly Parts Diagram

Professional 48" Walk-Behind Mower, 16hp Kawasaki, Gear

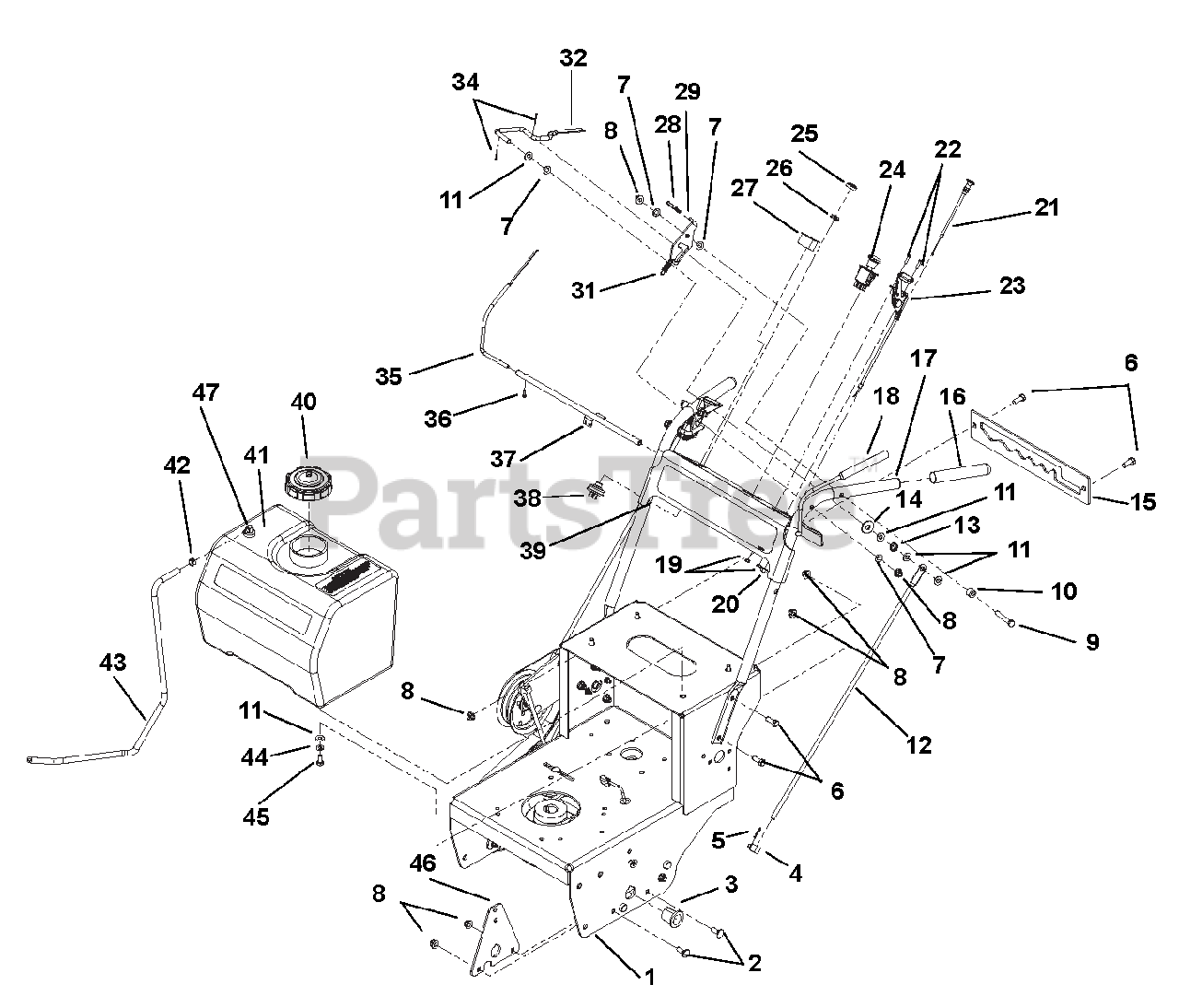

Handle Bar and Frame Assembly Parts Diagram

  • Title

1

Ariens 50568002

ARIENS GRWLK FRAME W/DECALS

$

$

Not available

2

Ariens 00963020

BOLT, 3/8-16X1.00 CRG 5 Y
(Superseded to 06223600)

$2.99

$

In Stock, only 1 left!

0

3

Ariens 05517900

BSHG-FLG 1.010X1.38X1.4X1.65

$6.49

$

In Stock, Qty 12

0

4

Ariens D33002

SWIVEL, 3/8-24

$12.99

$

Usually ships in 4-12 days

0

5

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 5

0

6

Ariens 00960046

BOLT, 3/8-16X1.00 HEX 5 Y
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

7

Ariens 06433600

WSHR-FL-NY .375X.75X.060

$0.99

$

In Stock, Qty 10

0

8

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

9

Ariens 00960052

BOLT, 3/8-16X2.50 HEX 5 Y

$

$

Not available

10

Ariens 08553700

BSHG-SLV .391X.688X.52 PM

$6.49

$

In Stock, Qty 20+

0

11

Ariens 00964501

WASHER, .406X.813X.065 FLAT Y
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 03371700

ROD, STEERING

$17.99

$

Usually ships in 4-12 days

0

13

Ariens 08338800

SG-COMP .045X.600X.750 WLD7.5

$7.49

$

In Stock, only 2 left!

0

14

Ariens 06441000

@WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$3.49

$

In Stock, only 4 left!

0

15

Ariens 04950459

PLATE, SHIFT LEVER DETENT ARIE

$

$

Not available

16

Ariens 04928800

GRIP, HANDLEBAR

$10.99

$

In Stock, Qty 12

0

17

Ariens 07533300

CAPLUG, HANDLEBAR

$2.99

$

In Stock, only 3 left!

0

18

Ariens 04924200

LEVER, LH-OP
(Superseded to 78806400)

$237.99

$

Usually ships in 4-12 days

0

19

Ariens 00964013

LOCKNUT, 10-24 NYLOC Y

$

$

Not available

20

Ariens 00967054

NUT, 3/8-24 STD HEX Y
(Superseded to 06522900)

$2.99

$

In Stock, only 2 left!

0

21

Ariens 06944700

CABLE, CHOKE

$60.99

$

Usually ships in 4-12 days

0

22

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 6

0

23

Ariens 06949100

CABLE - THROTTLE W/LINER

$83.99

$

In Stock, only 3 left!

0

24

Ariens 04311800

SWITCH, CLUTCH (WITH GRAPHIC)

Note: (with Graphic)

$46.99

$

In Stock, Qty 6

0

25

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

In Stock, Qty 19

0

26

Ariens 06517400

NUT- PANEL .562-24 GRECO

$21.99

$

In Stock, Qty 7

0

27

Ariens 04196515

METER, HOUR INDCTV RECOIL ENG

$58.99

$

Usually ships in 4-12 days

0

28

Ariens 04928700

GRIP, THUMB LATCH

$3.99

$

Usually ships in 4-12 days

0

29

Ariens 04922600

LATCH, LH THUMB

$17.99

$

Usually ships in 4-12 days

0

30

Ariens 04922700

LATCH, RH THUMB

$18.99

$

Usually ships in 4-12 days

0

31

Ariens 08339300

SG-TENS .041X.500X1.750

$6.49

$

In Stock, Qty 12

0

32

Ariens 04905200

LEVER, HAND CONTROL LH

$81.99

$

In Stock, only 3 left!

0

33

Ariens 04922400

LEVER, HAND CONTROL RH

$73.99

$

In Stock, only 4 left!

0

34

Ariens 00962008

PIN, COT .094X.750 EXTP Y
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

35

Ariens 04924100

LEVER, RH-OP
(Superseded to 78806400)

$237.99

$

Usually ships in 4-12 days

0

36

Ariens 07415600

@SCR-TAP 8-32X.50 HWH TR YWZC

$2.49

$

Usually ships in 4-12 days

0

37

Ariens 04924000

WELDMENT, PIVOT TUBE
(Superseded to 78806400)

$237.99

$

Usually ships in 4-12 days

0

38

Ariens 03602300

KEY SWITCH

$26.99

$

In Stock, Qty 20+

0

39

Ariens 50568003

ARIENS GRWLK HANDLEBAR W/DECAL

$

$

Not available

40

Ariens 04952005

CAP, FUEL NONVENT, AUTOLOCK

$48.99

$

Usually ships in 4-12 days

0

41

Ariens 04953200

ASSY, FUEL TANK FF CLPE WALK

$258.99

$

Usually ships in 4-12 days

0

Ariens 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$18.99

$

In Stock, Qty 14

0

Ariens 04082700

GROMMET, REMOTE VENT NITRILE

$3.99

$

In Stock, Qty 20+

0

42

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

43

Ariens 03832612

HOSE, FUEL 1/4 X 18.00

$

$

Not available

44

Ariens 00960602

WASHER, .375 MED SPRG LOCK Y

$

$

Not available

45

Ariens 00960045

BOLT, 3/8-16X.750 HEX 5 Y
(Superseded to 05959400)

$1.99

$

In Stock, Qty 11

0

46

Ariens 03384151

PLATE, AXLE/BEARING MOUNTING

$15.99

$

Usually ships in 4-12 days

0

47

Ariens 09112300

FITTING, TANK
(Superseded to 03875300)

$15.99

$

In Stock, only 2 left!

0
