988812 (PWKA1648S) - Ariens Professional 48" Walk-Behind Mower, 16hp Kawasaki, Gear (SN: 000101 & Above) Transmission and Console Parts Diagram

Professional 48" Walk-Behind Mower, 16hp Kawasaki, Gear

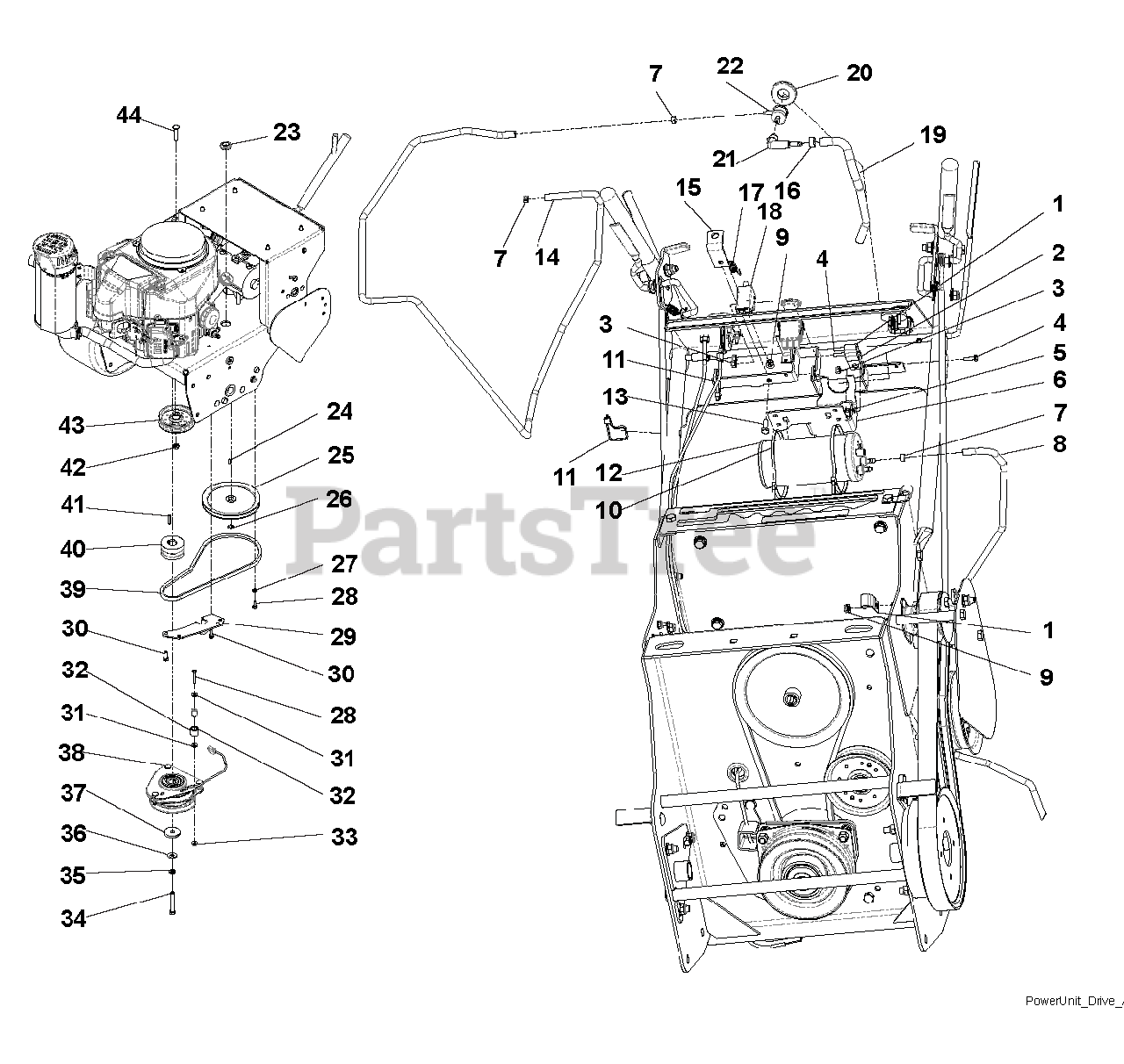

Transmission and Console Parts Diagram

  • Title

1

Ariens AH89557

P-CLIP, .500 INSULATED

$5.49

$

In Stock, only 1 left!

0

2

Ariens 06542300

NUT-LK-FLG M8-1.25 YWZC
(Superseded to 06500725)

$3.49

$

Usually ships in 4-12 days

0

3

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

4

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, only 1 left!

0

5

Ariens 05970001

@BLT-HEX M8 X 1.25X14 YWZC
(Superseded to 05902018)

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 04265351

BRACKET, ROV & CC GEAR WALK

$19.99

$

Usually ships in 4-12 days

0

7

Ariens 04097715

CLAMP, DBL PINCH 5/16"-7/16"

$3.49

$

Usually ships in 4-12 days

0

8

Ariens 03832617

HOSE, PURGE LINE 3/16 GRWLK

$

$

Not available

9

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

10

Ariens 00967006

CABLE TIE, .19 X 14.4

$

$

Not available

11

Ariens 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

12

Ariens 04058210

400 CC CARBON CANISTER 3/16 PT

$96.99

$

Usually ships in 4-12 days

0

13

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

14

Ariens 03832619

HOSE, 3/16 REMOTE ROV-CANISTER

$

$

Not available

15

Ariens 04928951

BRACKET, BRAKE LINK
(Superseded to 78806400)

$206.99

$

In Stock, only 1 left!

0

16

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 7

0

17

Ariens 08337000

SPRING-EXT .047X.438X1.45

$5.99

$

In Stock, only 2 left!

0

18

Ariens 08828100

SWITCH,INTERLOCK

$20.99

$

In Stock, only 1 left!

0

19

Ariens 03832618

HOSE, 1/4" TANK-REMOTE ROV GRW

$

$

Not available

20

Ariens 04068925

GROMMET, REMOTE ROV

$11.99

$

In Stock, only 2 left!

0

21

Ariens 07001632

ELBOW FITTING, 1/4 X 1/4 ASSY

$35.99

$

Usually ships in 4-12 days

0

22

Ariens 04068920

VALVE, REMOTE ROLL OVER

$21.99

$

In Stock, only 1 left!

0

23

Ariens 03384007

GROMMET:RUB:.88IDX1.38ODX.14GR

$3.49

$

Usually ships in 4-12 days

0

24

Ariens 06608700

KEY-WDRF .19X.75 HRD #9

$1.49

$

In Stock, Qty 20+

0

25

Ariens 07328600

PLY-V 7.50 X .626

$68.99

$

In Stock, only 3 left!

0

26

Ariens 05711900

RG-RTNG-EXT .579X.035

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

29

Ariens 04061951

WLDT, CLUTCH STOP G2

$19.99

$

Usually ships in 4-12 days

0

30

Ariens 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

31

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

32

Ariens 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$5.99

$

In Stock, Qty 8

0

33

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 05900037

BLT-HEX .44-20X3.00 G5 YZ EP80

$6.99

$

In Stock, Qty 6

0

35

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

36

Ariens 06441000

@WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$2.99

$

In Stock, Qty 16

0

37

Ariens 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, Qty 20+

0

38

Ariens 00200665

CLUTCH ASSY, OGURA# GT1A-HU02

$387.99

$

In Stock, only 1 left!

0

39

Ariens 07225500

V-BELT, HA-RAW EDGE

$38.99

$

In Stock, Qty 14

0

40

Ariens 07300501

SHEAVE,ENGINE 1.002IDX3.222PIN

$131.99

$

In Stock, only 1 left!

0

41

Ariens 06606900

KEY-SQ .248X1.25X.248

$2.99

$

Usually ships in 4-12 days

0

42

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

43

Ariens 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

44

Ariens 06203200

BLT-RDHDSQNK .38-16X2.00 SHTYW
(Superseded to 06200323)

$2.99

$

In Stock, Qty 18

0
