989003 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 22hp Yanmar (SN: 000101 & Above) WHEELS Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Yanmar

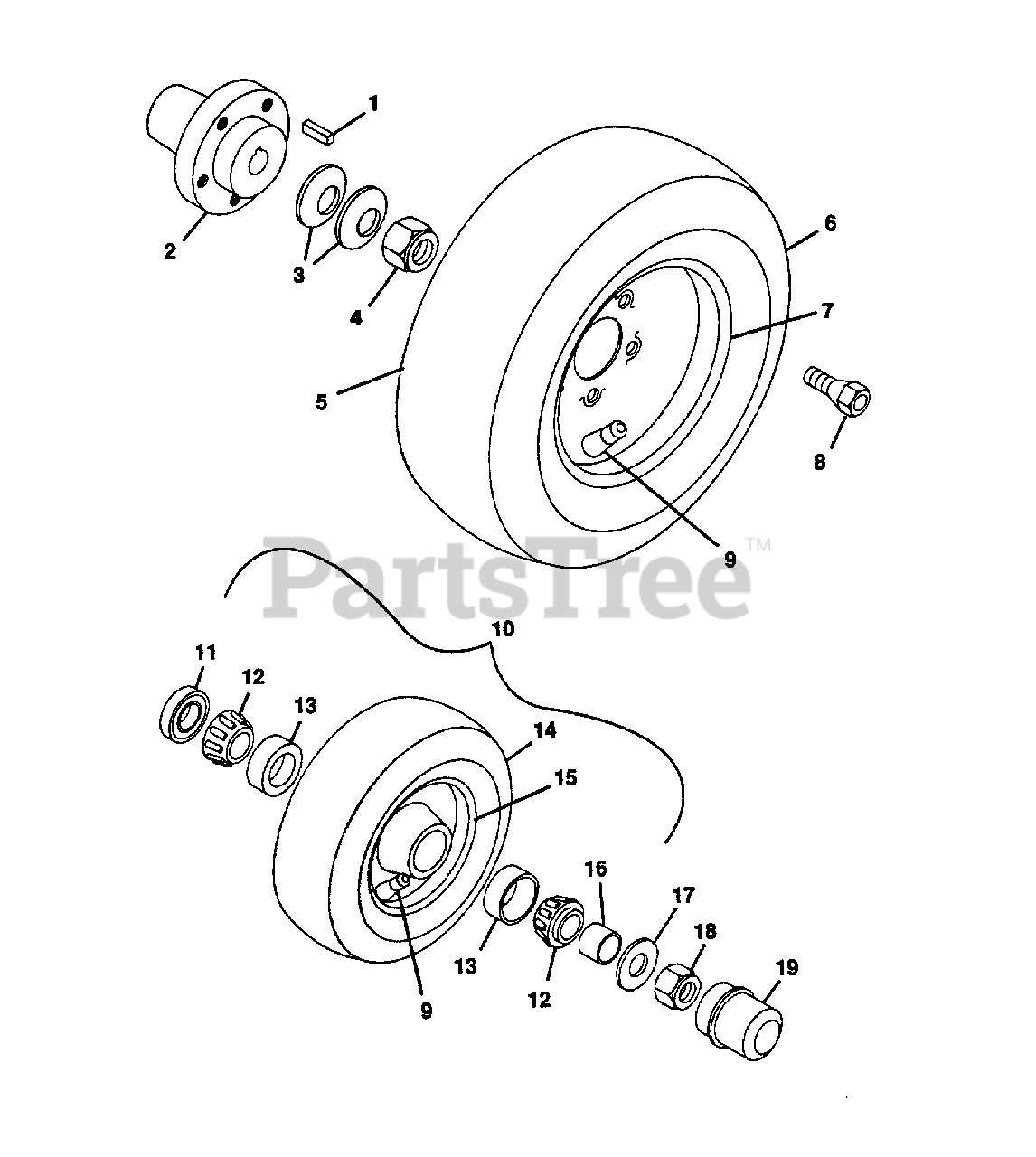

WHEELS Parts Diagram

  • Title

1

Gravely 044386

Key, Square .312x2.25
(Superseded to 06607200)

$6.49

$

Usually ships in 4-12 days

0

2

Gravely 044364

Hub, Wheel
(Superseded to 08968200)

$

$

Not available

3

Gravely 051726

Spring, Belleville
(Superseded to 08346300)

$

$

Not available

4

Gravely 013619

Nut, Lock 1-14
(Superseded to 00181818)

$10.99

$

Usually ships in 4-12 days

0

5

Gravely 052994

Assembly, Wheel 23x8.50-12
(Superseded to 20928200)

$156.99

$

Usually ships in 4-12 days

0

6

Gravely 048920

Tire, Rear 23x8.50-12
(Superseded to 20928000)

$

$

Not available

7

Gravely 048922

Weldment, Rim Rear
(Superseded to 20928200)

$156.99

$

Usually ships in 4-12 days

0

8

Gravely 012744

Bolt, Hub 7/16-20x.75 Special
(Superseded to 07051400)

$10.99

$

Usually ships in 4-12 days

0

9

Gravely 011191

Assembly, Valve Stem
(Superseded to 07520000)

$2.99

$

In Stock, only 4 left!

0

10

Gravely 018442

Assembly, Front Wheel 16x6.50-8
(Superseded to 21119100)

$319.99

$

Usually ships in 4-12 days

0

11

Gravely 018447

Seal, Oil
(Superseded to 05613200)

$17.99

$

In Stock, only 4 left!

0

12

Gravely 018446

Bearing, Cone LM 11949
(Superseded to 05404500)

$29.99

$

In Stock, only 3 left!

0

13

Gravely 018445

Bearing, Cup LM 11910
(Superseded to 05404400)

$11.99

$

In Stock, Qty 20+

0

14

Gravely 048923

Tire, Front 16x6.50-8
(Superseded to 07122000)

$87.99

$

Usually ships in 4-12 days

0

15

Gravely 048925

Weldment, Rim Front
(Superseded to 07119600)

$221.99

$

Usually ships in 4-12 days

0

16

Gravely 018448

Spacer
(Superseded to 03495900)

$16.99

$

In Stock, only 1 left!

0

17

Gravely 131016

Washer, Flat .656x1.312x.095
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 414075

Nut, Lock 5/8-11
(Superseded to 06535300)

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 018449

Cap, Dust
(Superseded to 03496000)

$15.99

$

In Stock, Qty 6

0
