989005 (PM 50) - Gravely Pro-Master Zero-Turn Mower, 16hp Magnum (SN: 000101 & Above) RANGE CONTROL Parts Diagram

Pro-Master Zero-Turn Mower, 16hp Magnum

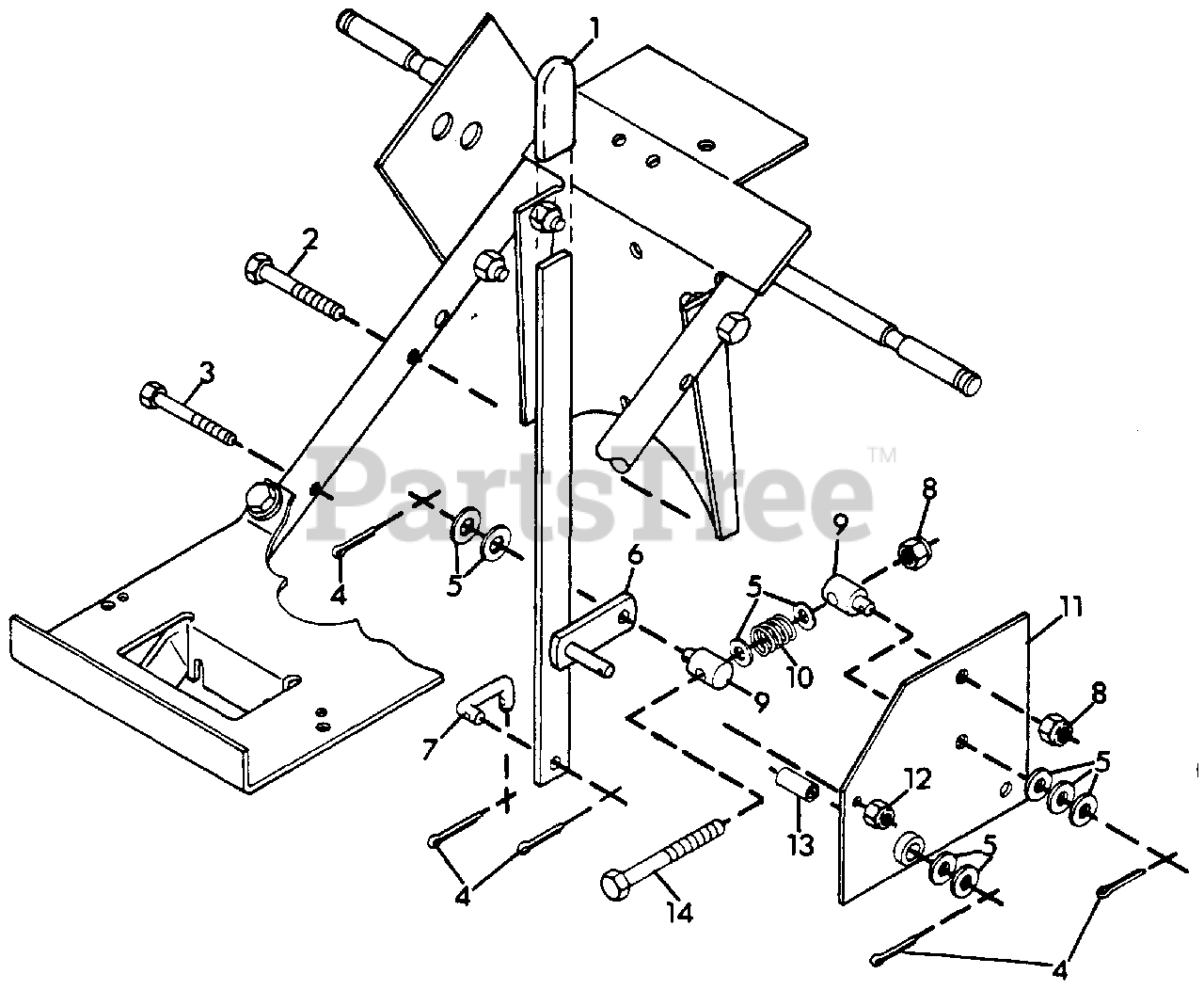

RANGE CONTROL Parts Diagram

  • Title

1

Gravely 027158

GRIP, HANDLE
(Superseded to 07522100)

$

$

Not available

2

Gravely 180130

BOLT, HEX 3/8-16X2.00
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

3

Gravely 180044

BOLT, HEX 1/4-20X2.00
(Superseded to 05901740)

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 121224

PIN, COTTER .09X1.00

$0.99

$

In Stock, Qty 9

0

5

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 041746

LEVER, HI-LO
(Superseded to 08937500)

$

$

Not available

7

Gravely 034457

ROD, HI-LO
(Superseded to 09026900)

$

$

Not available

8

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

9

Gravely 040225

PIVOT, BRAKE
(Superseded to 08934200)

$

$

Not available

10

Gravely 011779

SPRING, COMP. 1X.78
(Superseded to 08327000)

$16.99

$

In Stock, only 4 left!

0

11

Gravely 041740

WELDMENT, PLATE HI-LO
(Superseded to 08937200)

$

$

Not available

12

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

13

Gravely 006724

BUSHING, NYLON .375X.503X.875
(Superseded to 05518100)

$6.49

$

Usually ships in 4-12 days

0

14

Gravely 189304

BOLT, HEX 3/8-16X3.25
(Superseded to 05901817)

$4.99

$

In Stock, Qty 15

0
