989005 (PM 50) - Gravely Pro-Master Zero-Turn Mower, 16hp Magnum (SN: 000101 & Above) TRANSMISSION FRAME Parts Diagram

Pro-Master Zero-Turn Mower, 16hp Magnum

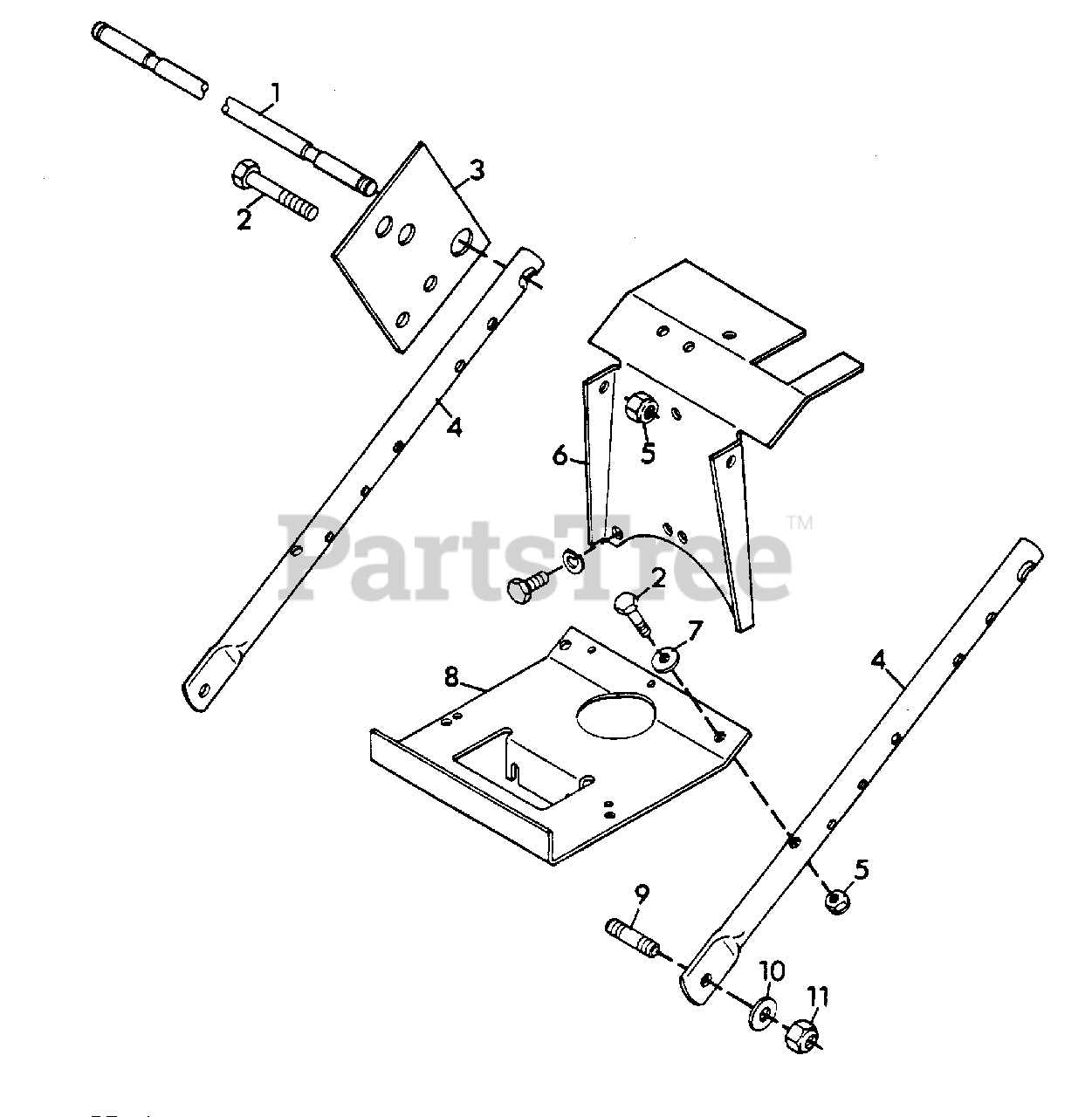

TRANSMISSION FRAME Parts Diagram

  • Title

1

Gravely 034461

SHFT,CROSS
(Superseded to 08906500)

$

$

Not available

2

Gravely 180132

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

3

Gravely 045186

BRKT,INTERLOCK
(Superseded to 08965800)

$

$

Not available

4

Gravely 039616

TUBE,SUPPORT
(Superseded to 08931400)

$

$

Not available

5

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 040274

SHIELD,HEAT
(Superseded to 08934900)

$

$

Not available

7

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 037704

BOX,BATTERY
(Superseded to 08925300)

$

$

Not available

9

Gravely 040275

CLINCH STUD .5-13X2.25
(Superseded to 07017000)

$

$

Not available

10

Gravely 120396

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0
