989006 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) MAIN DRIVE Parts Diagram

Pro-Master Zero-Turn Mower, 18hp Kohler

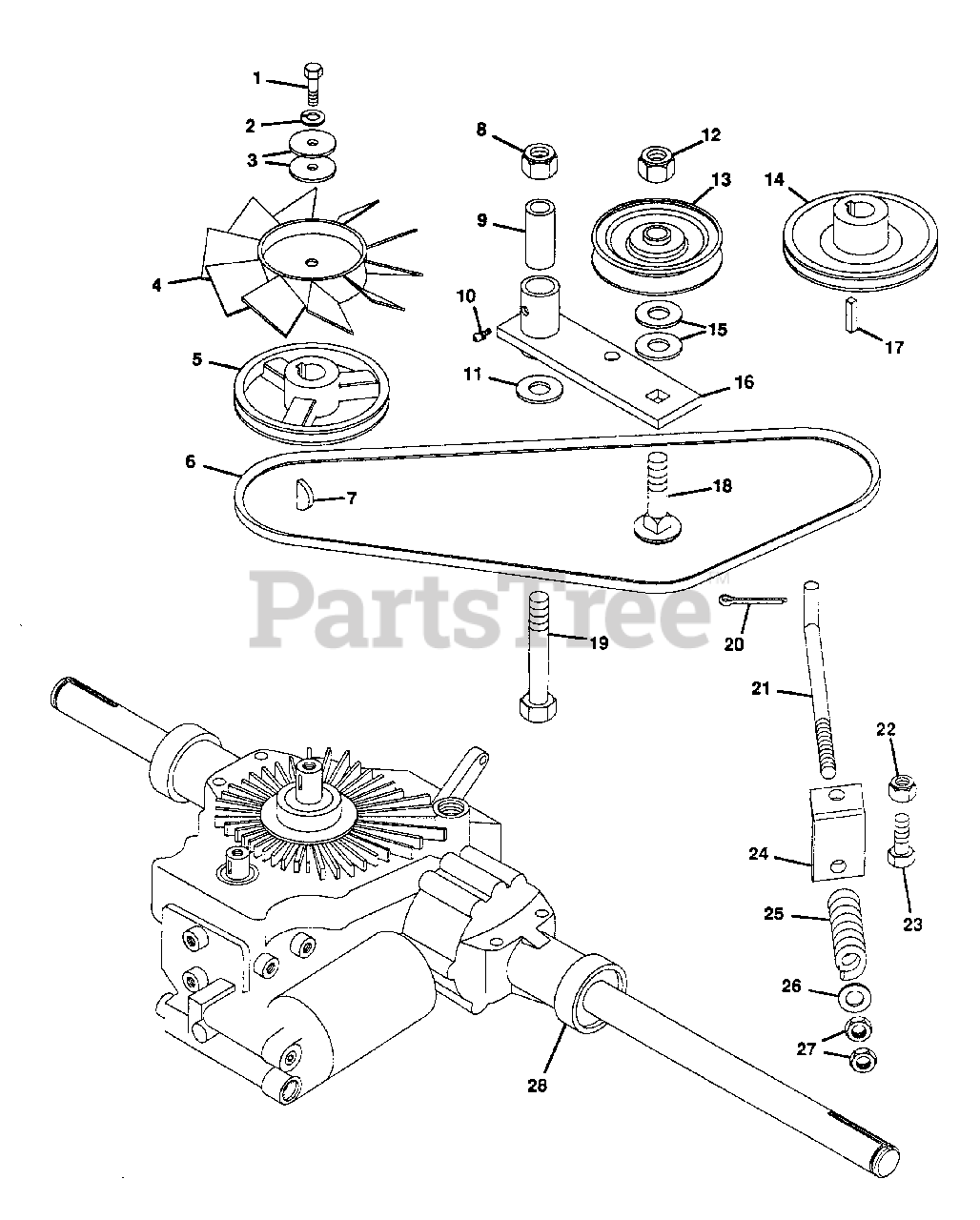

MAIN DRIVE Parts Diagram

  • Title

1

Gravely 180024

BOLT, HEX 1/4-20X1.25
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

2

Gravely 120380

WASHER, LOCK 1/4 REG.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

3

Gravely 012694

WASHER, FLAT .265X1.250X.063
(Superseded to 06403700)

$1.49

$

Usually ships in 4-12 days

0

4

Gravely 044380

FAN
(Superseded to 09024700)

$

$

Not available

5

Gravely 044573

PULLEY, DRIVE
(Superseded to 21269100)

$

$

Not available

6

Gravely 044519

BELT
(Superseded to 07221700)

$40.99

$

Usually ships in 4-12 days

0

7

Gravely 431787

KEY, WOODRUFF .187X.625 HRD #61
(Superseded to 06609300)

$2.99

$

In Stock, only 2 left!

0

8

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 031363

SPACER, .850X.546X2.50
(Superseded to 08826500)

$51.99

$

Usually ships in 4-12 days

0

10

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

11

Gravely 120389

WASHER, FLAT .500X1.250X.083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 15

0

12

Gravely 020541

NUT, LOCK 1/2-13 E.T.
(Superseded to 06527200)

$

$

Not available

13

Gravely 044518

PULLEY, IDLER
(Superseded to 07318000)

$45.99

$

Usually ships in 4-12 days

0

14

Gravely 044625

PULLEY
(Superseded to 21292900)

$

$

Not available

15

Gravely 120396

WASHER, FLAT .531X1.062X.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 044515

WELDMENT, IDLER ARM
(Superseded to 21268500)

$

$

Not available

17

Gravely 018345

KEY, SQUARE .250X1.250
(Superseded to 06606900)

$2.99

$

Usually ships in 4-12 days

0

18

Gravely 126502

BOLT, 1/2-13X1.75 RD HD SQ NK
(Superseded to 06200330)

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 180192

BOLT, HEX 1/2-13X3.50
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

20

Gravely 121222

PIN, COTTER .094X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

21

Gravely 021111

ROD, IDLER
(Superseded to 08598300)

$42.99

$

Usually ships in 4-12 days

0

22

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

23

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 031346

SUPPORT, SPRING
(Superseded to 08905100)

$16.99

$

Usually ships in 4-12 days

0

25

Gravely 011779

SPRING, COMP. 1X.78X338 LB/N
(Superseded to 08327000)

$15.99

$

In Stock, Qty 5

0

26

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 120369

NUT, HEX 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 1 left!

0

28

Gravely 044571

TRANSAXLE, HYDROSTATIC
(Superseded to 20809900)

$

$

Not available
