989007 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 35hp Yanmar (SN: 000101 & Above) POWER STEERING Parts Diagram

Pro-Master Zero-Turn Mower, 35hp Yanmar

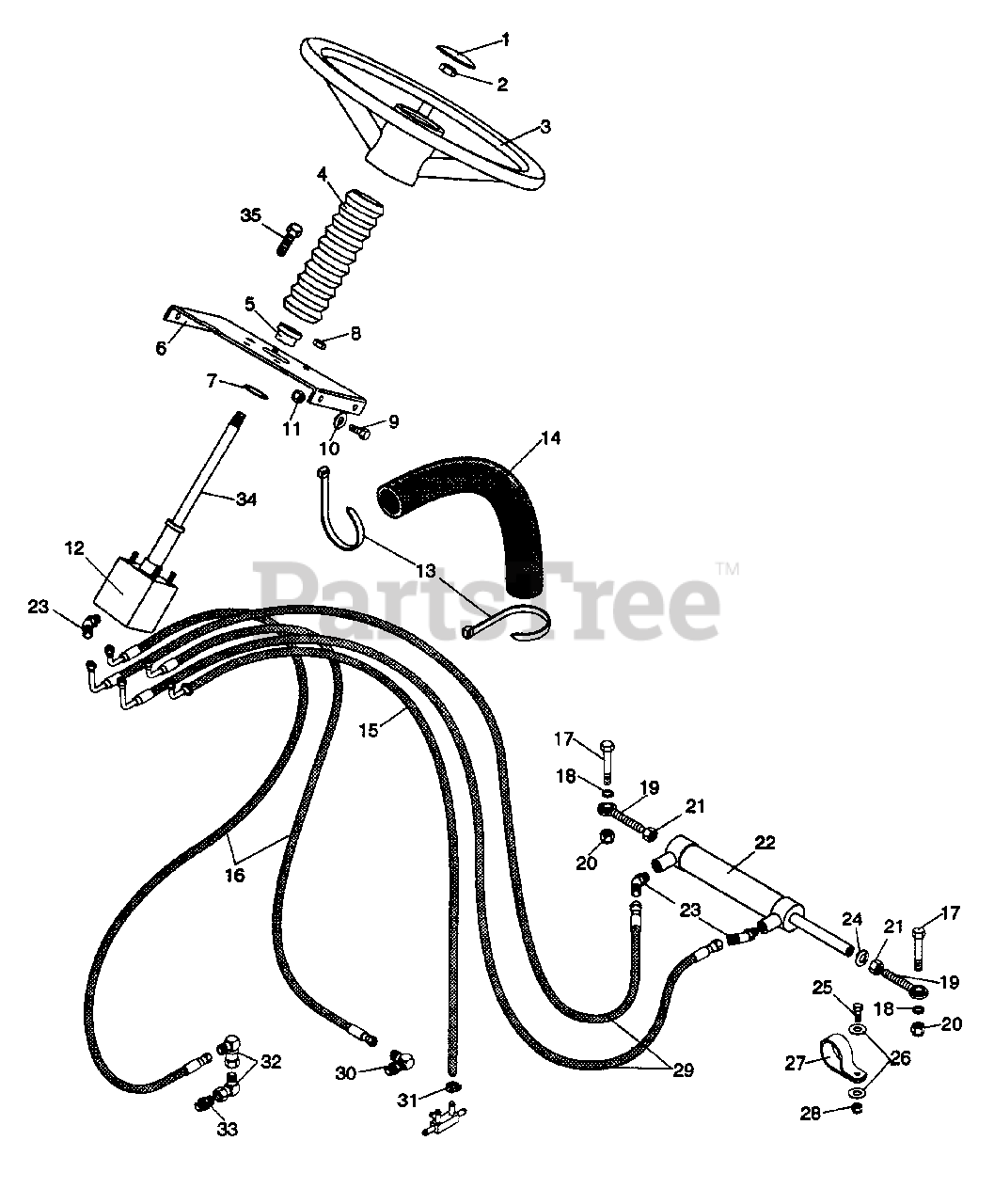

POWER STEERING Parts Diagram

  • Title

1

Gravely 03489800

STEERING WHEEL CAP

$

$

Not available

2

Gravely 06514100

NUT-JAM .625-11 PL
(Superseded to 06539300)

Note: (989015, 050)

$

$

Not available

2

Gravely 06527100

NUT-HEX-JAM M16X1.5 PL

Note: (989014, 049)

$

$

Not available

3

Gravely 03066600

STEERING WHEEL

$

$

Not available

4

Gravely 08739200

STEERING COLUMN BOOT

$

$

Not available

5

Gravely 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$5.49

$

In Stock, Qty 15

0

6

Gravely 08977100

BRKT,STEERING PUMP

Note: (989015, 050)

$

$

Not available

6

Gravely 08978000

BRKT,STEERING PUMP

Note: (989014, 049)

$

$

Not available

7

Gravely 05713500

RG-RTNG-EXT 1.250X.060

$

$

Not available

8

Gravely 06526500

NUT-LK .312-24 W/INSR

$

$

Not available

9

Gravely 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06429200

WSHR-FL-STL .344X.688X.065
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$1.49

$

In Stock, Qty 5

0

12

Gravely 08973600

PWR STRG UNIT (SPA #905)
(Superseded to 09093200)

Note: (989015, 050)

$

$

Not available

12

Gravely 08977000

POWER STEERING UNIT

Note: (989014, 049)

$

$

Not available

13

Gravely 07519900

TIE WRAP, BLACK LG 7.31

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 09011400

SLEEVE 12"

$

$

Not available

15

Gravely 08978200

ASM, HYDRAULIC HOSE 40.8"

Note: (989015, 050)

$

$

Not available

15

Gravely 08987500

ASM,HYDRAULIC HOSE

Note: (989014, 049)

$

$

Not available

16

Gravely 08978100

ASM,HYDRAULIC HOSE

Note: (989015, 050)

$

$

Not available

16

Gravely 08978600

ASM,HYDRAULIC HOSE

Note: (989014, 049)

$

$

Not available

17

Gravely 05923500

BLT-HEX .50-13X2.00 PL GR5
(Superseded to 05901929)

$3.49

$

In Stock, only 1 left!

0

18

Gravely 08974800

SPACER .520X.625X.125 ST

$22.99

$

In Stock, only 1 left!

0

19

Gravely 08959600

ROD END, 1/2 RH

Note: (R.H.)

$40.99

$

Usually ships in 4-12 days

0

20

Gravely 06512900

NUT-LK-NYL .50-13 GR 5 PL
(Superseded to 06540600)

$2.99

$

In Stock, Qty 20+

0

21

Gravely 06504400

NUT-JAM .50-20 PL
(Superseded to 06500838)

$2.99

$

Usually ships in 4-12 days

0

22

Gravely 08952900

CYL,STEERING
(Superseded to 04935800)

$559.99

$

Usually ships in 4-12 days

0

23

Gravely 08901200

FTG,HYD 45DEG M6O-M6J

$21.99

$

Usually ships in 4-12 days

0

24

Gravely 06305100

WSHR-LK .50 REG.
(Superseded to 06307300)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06921300

CLAMP,NYLON
(Superseded to 06939900)

$

$

Not available

28

Gravely 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$3.49

$

In Stock, Qty 20+

0

29

Gravely 09005100

ASM,HYDRAULIC HOSE

Note: (989015, 050)

$

$

Not available

29

Gravely 08974900

ASM,HYDRAULIC HOSE

Note: (989014, 049)

$

$

Not available

30

Gravely 08800800

ADPT 2503-6-6
(Superseded to 00313270)

$9.99

$

Usually ships in 4-12 days

0

31

Gravely 06924300

HOSE CLAMP

$7.99

$

Usually ships in 4-12 days

0

32

Gravely 08901000

ADPT 3903-6-6

$21.99

$

Usually ships in 4-12 days

0

33

Gravely 07017500

ADPT-PIPE (0503-6-6)

$12.99

$

In Stock, only 2 left!

0

34

Gravely 08974300

COLUMN,STEERING

Note: (989014, 049)

$

$

Not available

35

Gravely 08597200

BLT,HEX M6-1X20MM

$

$

Not available

NS

Gravely 58900600

REPAIR KIT, ROSS POWER STEER

Note: (989015, 050)

$

$

Not available

NS

Gravely 58900700

REPAIR KIT, EATON POWER STEER

Note: (989014, 049)

$

$

Not available

NS

Gravely 05213900

DECAL,STEERING WHEEL CAP

$

$

Not available
