989009 - Gravely Pro-Master Zero-Turn Mower, Gear Drive, 20hp Kohler (SN: 000101 & Above) NUMBER FOURTEEN - AXLE HOUSING Parts Diagram

Pro-Master Zero-Turn Mower, Gear Drive, 20hp Kohler

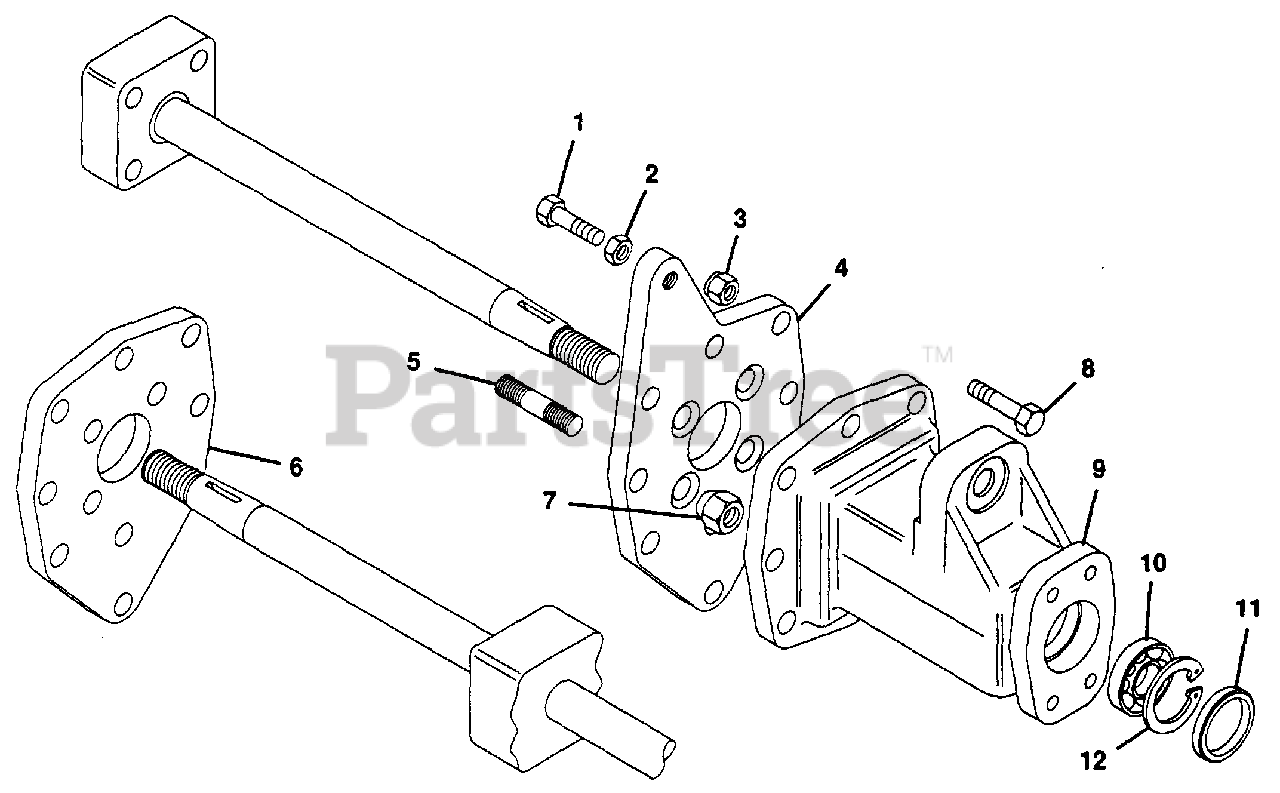

NUMBER FOURTEEN - AXLE HOUSING Parts Diagram

  • Title

1

Gravely 180125

BLT-HEX .38-16X1.38
(Superseded to 05934900)

$

$

Not available

2

Gravely 124829

NUT-JAM .375-16 PL
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

4

Gravely 044288

PLT,AXLE L.H.
(Superseded to 08948500)

$

$

Not available

5

Gravely 011187

STUD,AXLE
(Superseded to 09023000)

$

$

Not available

6

Gravely 044287

PLT,AXLE R.H.
(Superseded to 08948400)

$

$

Not available

7

Gravely 011058

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 180127

BLT-HEX .38-16X1.625
(Superseded to 05935000)

$

$

Not available

9

Gravely 035404

HSG,AXLE OFC
(Superseded to 08914300)

$

$

Not available

10

Gravely 018029

BRG-BALL 1.25X2.25X.50
(Superseded to 05426600)

$41.99

$

Usually ships in 4-12 days

0

11

Gravely 018031

SEAL 1.250X2.250X.500
(Superseded to 05618200)

$22.99

$

In Stock, only 4 left!

0

12

Gravely 018812

RG-RTNG-INT 2.490X.078
(Superseded to 05712900)

$6.49

$

Usually ships in 4-12 days

0
