989009 - Gravely Pro-Master Zero-Turn Mower, Gear Drive, 20hp Kohler (SN: 000101 & Above) NUMBER THIRTEEN - TRANSMISSION COVER ASSY Parts Diagram

Pro-Master Zero-Turn Mower, Gear Drive, 20hp Kohler

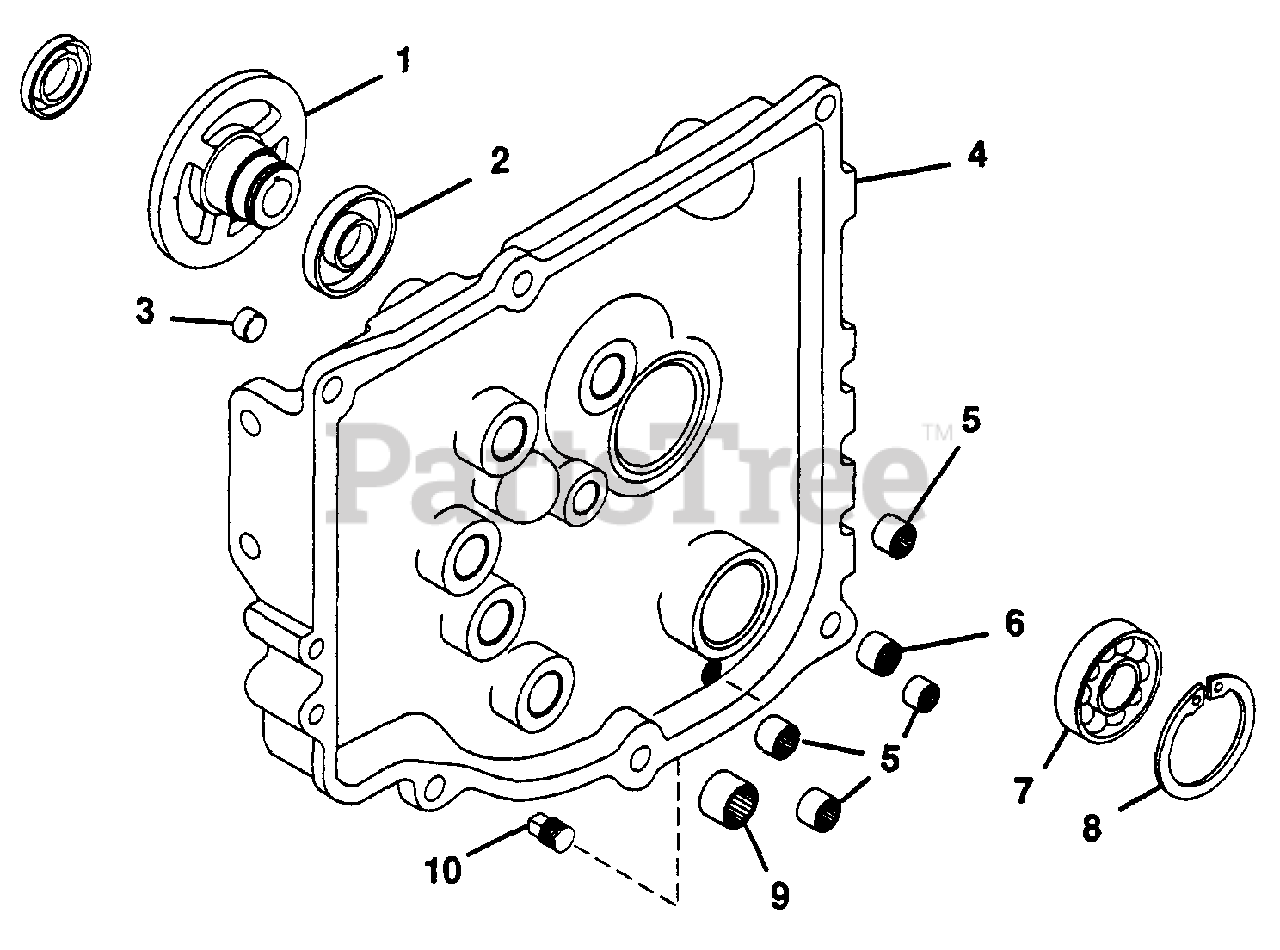

NUMBER THIRTEEN - TRANSMISSION COVER ASSY Parts Diagram

  • Title

1

Gravely 018024

HUB,CLUTCH
(Superseded to 08790700)

$479.99

$

Usually ships in 4-12 days

0

2

Gravely 046323

SEAL-LIP 2.25X3.25X.38
(Superseded to 05617600)

$27.99

$

Usually ships in 4-12 days

0

3

Gravely 421749

PLUG,CUP .750
(Superseded to 07704200)

$

$

Not available

4

Gravely 046102

ASM,TRANS COVER
(Superseded to 21278200)

$

$

Not available

5

Gravely 017913

BRG-NEEDLE .750X1.0X.75
(Superseded to 05420100)

$23.99

$

Usually ships in 4-12 days

0

6

Gravely 017914

BRG-NEEDLE .625X.812X.75
(Superseded to 05420200)

$9.99

$

Usually ships in 4-12 days

0

7

Gravely 046321

BRG-BALL 1.97X3.54X.79
(Superseded to 05426300)

$59.99

$

Usually ships in 4-12 days

0

8

Gravely 046322

RG-RTNG-INT 3.540X.109
(Superseded to 05715400)

$

$

Not available

9

Gravely 017912

BRG-NEEDLE 1.0X1.25X.75
(Superseded to 05420000)

$15.99

$

Usually ships in 4-12 days

0

10

Gravely 103879

PLUG,PIPE .38SQ HD UNFIN STL
(Superseded to 07023800)

$

$

Not available
