989009 - Gravely Pro-Master Zero-Turn Mower, Gear Drive, 20hp Kohler (SN: 000101 & Above) NUMBER TWELVE - TRANSMISSION CASE ASSY Parts Diagram

Pro-Master Zero-Turn Mower, Gear Drive, 20hp Kohler

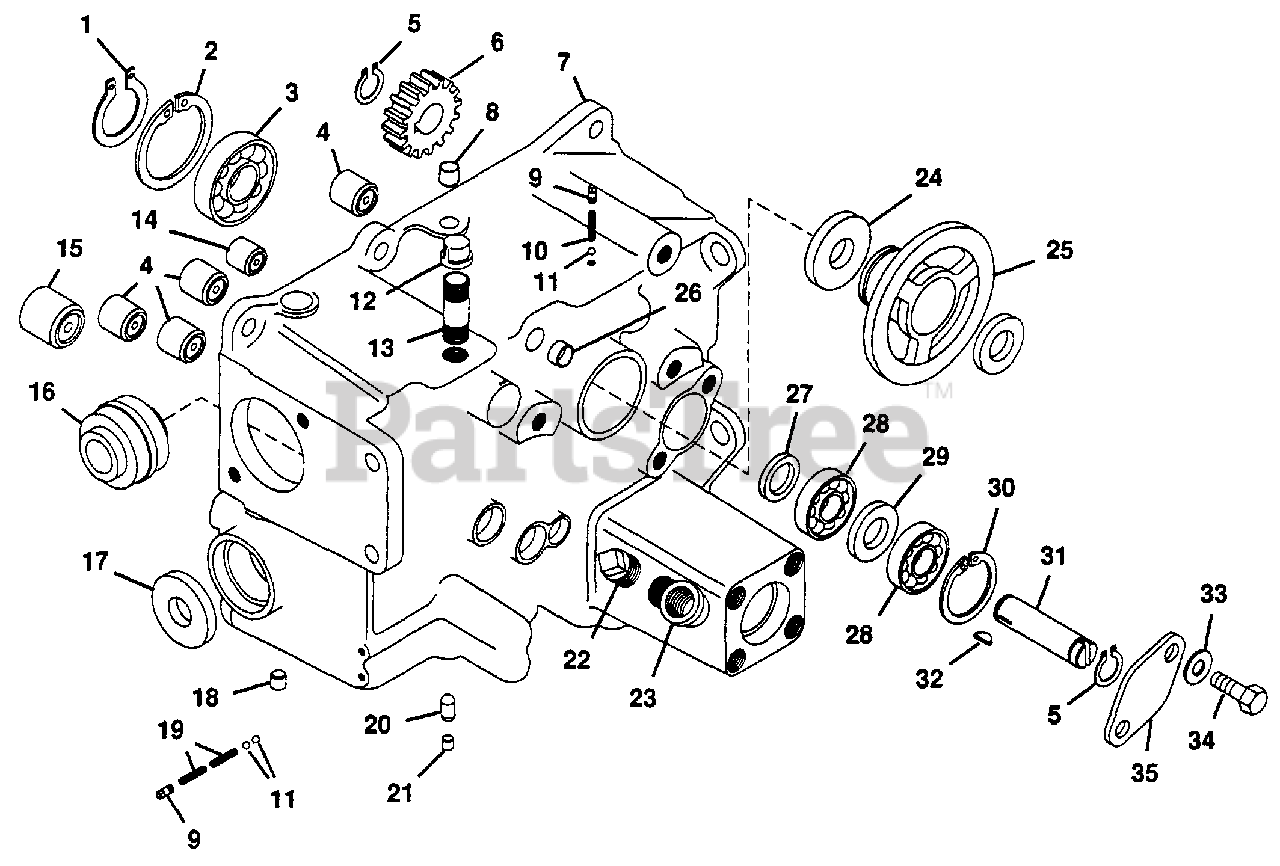

NUMBER TWELVE - TRANSMISSION CASE ASSY Parts Diagram

  • Title

1

Gravely 017919

RG-RTNG-EXT 1.819X.062
(Superseded to 05712100)

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 018872

RG-RTNG-INT 3.520X.109
(Superseded to 05713000)

$14.99

$

Usually ships in 4-12 days

0

3

Gravely 017915

BRG-BALL 1.97X3.14X.63
(Superseded to 05420300)

$68.99

$

Usually ships in 4-12 days

0

4

Gravely 017913

BRG-NEEDLE .750X1.0X.75
(Superseded to 05420100)

$23.99

$

Usually ships in 4-12 days

0

5

Gravely 018809

RG-RTNG-EXT .550X.035
(Superseded to 05712800)

$

$

Not available

6

Gravely 018808

GR,HYD PUMP
(Superseded to 08708500)

$

$

Not available

7

Gravely 046099

ASM,TRANS CASE
(Superseded to 08775900)

$

$

Not available

8

Gravely 427961

PLUG,CUP .625
(Superseded to 07702800)

Note: (4-Spd)

$

$

Not available

9

Gravely 103877

PLUG,PIPE .12 SQ HD UNFIN STL
(Superseded to 07023700)

$

$

Not available

10

Gravely 024772

SG-COMP .045X.300X.938
(Superseded to 08330400)

Note: (8-Spd)

$

$

Not available

11

Gravely 274301

BALL,.312 GRD 2000,CBN STL,GM#
(Superseded to 05429900)

Note: (4-Spd)

$

$

Not available

11

Gravely 274301

BALL,.312 GRD 2000,CBN STL,GM#
(Superseded to 05429900)

Note: (8-Spd)

$

$

Not available

12

Gravely 019472

PIPE CAP 1/2 NPT
(Superseded to 08715400)

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 121664

NPL,PIPE .50X2.50 UNFIN STL
(Superseded to 07024300)

$

$

Not available

14

Gravely 017914

BRG-NEEDLE .625X.812X.75
(Superseded to 05420200)

$9.99

$

Usually ships in 4-12 days

0

15

Gravely 017912

BRG-NEEDLE 1.0X1.25X.75
(Superseded to 05420000)

$15.99

$

Usually ships in 4-12 days

0

16

Gravely 014640

BRG-ASM 1.000X1.980X1.243
(Superseded to 05419300)

$115.99

$

In Stock, only 1 left!

0

17

Gravely 017923

SEAL 1.375X2.129X.315
(Superseded to 05614100)

$22.99

$

In Stock, only 1 left!

0

18

Gravely 421745

PLUG,CUP .500
(Superseded to 07704100)

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 017936

SG-COMP .045X.30X1.50 WLD26
(Superseded to 08327700)

$

$

Not available

20

Gravely 018200

PIN,INTERLOCK
(Superseded to 08706400)

$

$

Not available

21

Gravely 421743

PLUG,CUP; 3/8
(Superseded to 07702700)

$

$

Not available

22

Gravely 103880

PLUG,PIPE .50 SQ HD UNFIN STL
(Superseded to 07023900)

$3.49

$

Usually ships in 4-12 days

0

23

Gravely 108686

ELBOW .50X90 STRT UNFIN MAL IR
(Superseded to 07024000)

$

$

Not available

24

Gravely 017917

SEAL 2.250X3.002X.375
(Superseded to 05614000)

$22.99

$

In Stock, only 2 left!

0

25

Gravely 018024

HUB,CLUTCH
(Superseded to 08790700)

$479.99

$

Usually ships in 4-12 days

0

26

Gravely 421749

PLUG,CUP .750
(Superseded to 07704200)

$

$

Not available

27

Gravely 018807

BUSH.,S.620X.750X.276 ST
(Superseded to 08730600)

$

$

Not available

28

Gravely 012626

BRG-BALL .590X1.38X.433
(Superseded to 05429000)

$

$

Not available

29

Gravely 018798

BUSH.,S.620X.750X.364 ST
(Superseded to 08729000)

$

$

Not available

30

Gravely 018799

RG-RTNG-INT 1.375X.050
(Superseded to 05705500)

$

$

Not available

31

Gravely 018797

SHFT,HYD PUMP
(Superseded to 08787300)

$

$

Not available

32

Gravely 271089

KEY-WDRF .13X.38 HRD
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

33

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (4-Spd)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 180120

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

Note: (4-Spd)

$1.99

$

In Stock, Qty 14

0

35

Gravely 018421

PLT,COVER
(Superseded to 08707500)

Note: (4-Spd)

$11.99

$

Usually ships in 4-12 days

0
