989009 - Gravely Pro-Master Zero-Turn Mower, Gear Drive, 20hp Kohler (SN: 000101 & Above) TRANSMISSION Parts Diagram

Pro-Master Zero-Turn Mower, Gear Drive, 20hp Kohler

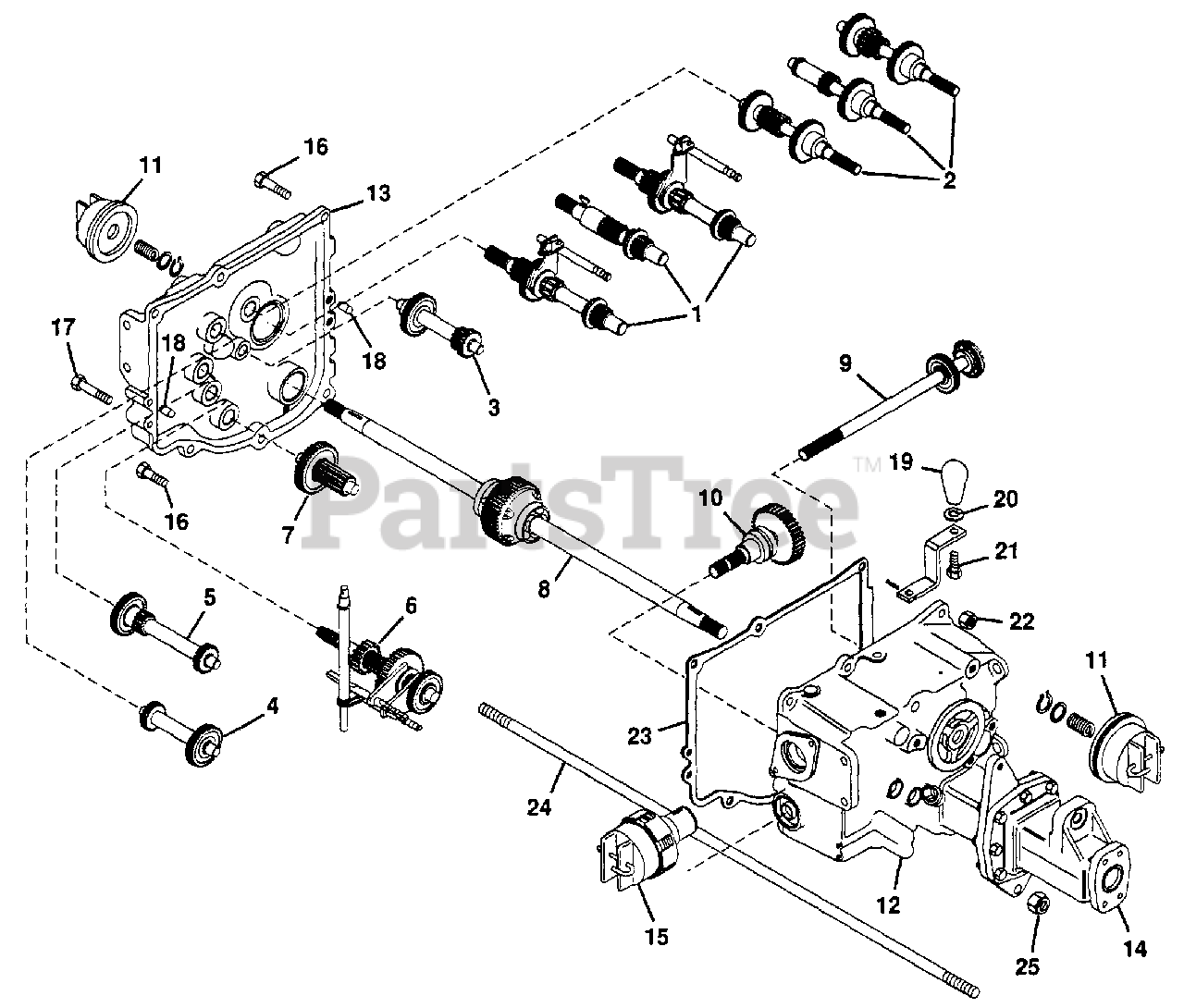

TRANSMISSION Parts Diagram

  • Title

1

No. 1 Shaft, Forward Clutch

$

$

Not available

2

No. 2 Shaft, Reverse Clutch

$

$

Not available

3

No. 3 Shaft, 3rd and 4th Gear

$

$

Not available

4

No. 4 Shaft, Idler

$

$

Not available

5

No. 5 Shaft, 1st and 2nd Gear

$

$

Not available

6

No. 6 Shaft, Brake-Sliding Gear

$

$

Not available

7

No. 7 Shaft, Pinion-Final Drive

$

$

Not available

8

No. 8 Shaft, Differential Asm.

$

$

Not available

9

No. 9 Shaft, PTO Clutch

$

$

Not available

10

No. 10 Shaft, PTO Drive Asm.

$

$

Not available

11

No. 11, Fwd-Rev Clutch Asm.

$

$

Not available

12

No. 12, Transmission Case Asm.

$

$

Not available

13

No. 13, Transmission Cover Asm.

$

$

Not available

14

No. 14, Axle Housing

$

$

Not available

15

No. 15, PTO Clutch Asm.

$

$

Not available

16

Gravely 180126

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

17

Gravely 180132

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

18

Gravely 018089

PIN-DWL .38X.625
(Superseded to 05807600)

$

$

Not available

19

Gravely 041919

KNOB,CONTROL
(Superseded to 07526900)

$

$

Not available

20

Gravely 120384

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 180172

180145X 1/2-13 X 7/8
(Superseded to 21059300)

$

$

Not available

22

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

23

Gravely 018027

GSKT,TRANS COVER
(Superseded to 08721800)

$32.99

$

In Stock, only 4 left!

0

24

Gravely 035507

ROD,STRUT
(Superseded to 09027600)

$5.99

$

Usually ships in 4-12 days

0

25

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

Gravely 049689

ASM,TRANS PM 18-HP
(Superseded to 08991000)

Note: (4-Spd)

$

$

Not available

Gravely 049690

ASM,TRANS PM 20-HP
(Superseded to 08991100)

Note: (8-Spd)

$

$

Not available

Gravely 049691

ASM,TRANS PM 20-HP HI-SP
(Superseded to 08991200)

Note: (8-Spd HS)

$

$

Not available
