989012 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 20hp ONAN (SN: 000101 & Above) FRONT AND REAR WHEELS Parts Diagram

Pro-Master Zero-Turn Mower, 20hp ONAN

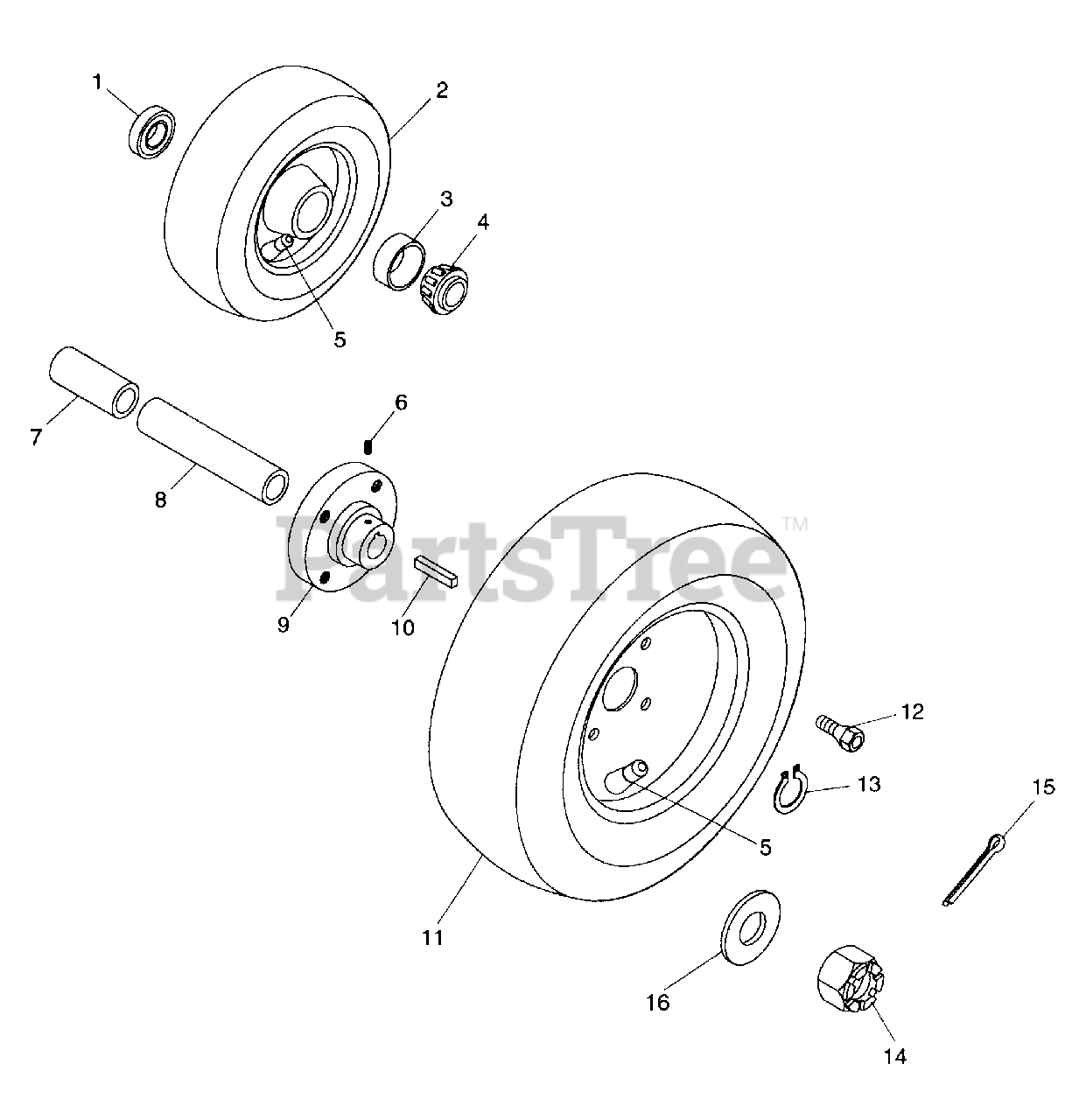

FRONT AND REAR WHEELS Parts Diagram

  • Title

1

Gravely 038920

Seal
(Superseded to 20655500)

$12.99

$

Usually ships in 4-12 days

0

2

Gravely 053130

Tire/Wheel Assembly 4.80-8
(Superseded to 07132200)

$

$

Not available

3

Gravely 038109

Bearing-Cup 1.980 x 4.20
(Superseded to 05407000)

$18.99

$

In Stock, Qty 20+

0

4

Gravely 038110

Bearing-Cone 1.0 x .58
(Superseded to 05406900)

$20.99

$

In Stock, Qty 20+

0

5

Gravely 011191

Valve Stem Assembly
(Superseded to 07520000)

$2.99

$

In Stock, only 4 left!

0

6

Gravely 102569

Screw-Set .25-20 x .25
(Superseded to 06000500)

$2.49

$

In Stock, only 1 left!

0

7

Gravely 053387

Spacer
(Superseded to 08951900)

Note: (989001,002,012)

$

$

Not available

8

Gravely 047136

Spacer
(Superseded to 08913400)

Note: (989001,002,012)

$

$

Not available

9

Gravely 053386

Hub
(Superseded to 59000900)

Note: (989001,002,012)

$

$

Not available

9

Gravely 090366

Hub
(Superseded to 59001800)

Note: (990001,002)

$

$

Not available

10

Gravely 052032

Key-Square .248 x 1.75 x .248
(Superseded to 06607700)

Note: (989001,002,012)

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 066002

Key-Woodruff .25 x 1.0 x 7.00
(Superseded to 06600200)

Note: (990001,002)

$3.99

$

In Stock, only 2 left!

0

11

Gravely 046987

Tire/Wheel Assembly 8.50-8 x 18
(Superseded to 07130200)

$188.99

$

Usually ships in 4-12 days

0

12

Gravely 034597

Bolt-Hex .50-20 x .75 x 1.62
(Superseded to 07000143)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 017980

Ring-Retaining-External .906 x .078
(Superseded to 05707300)

Note: (989001,002,012)

$3.49

$

In Stock, Qty 17

0

14

Gravely 065283

Nut-Hex-Slotted .75-20
(Superseded to 06528300)

Note: (990001,002)

$

$

Not available

15

Gravely 120123

Pin-Cotter .12 x 1.25
(Superseded to 06700212)

Note: (990001,002)

$0.99

$

In Stock, Qty 12

0

16

Gravely 423315

Washer-Flat-Steel .813 x 1.370 x .100
(Superseded to 06401140)

Note: (990001,002)

$1.99

$

In Stock, Qty 17

0
