989014 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 22hp Yanmar (SN: 000101 & Above) MAIN FRAME Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Yanmar

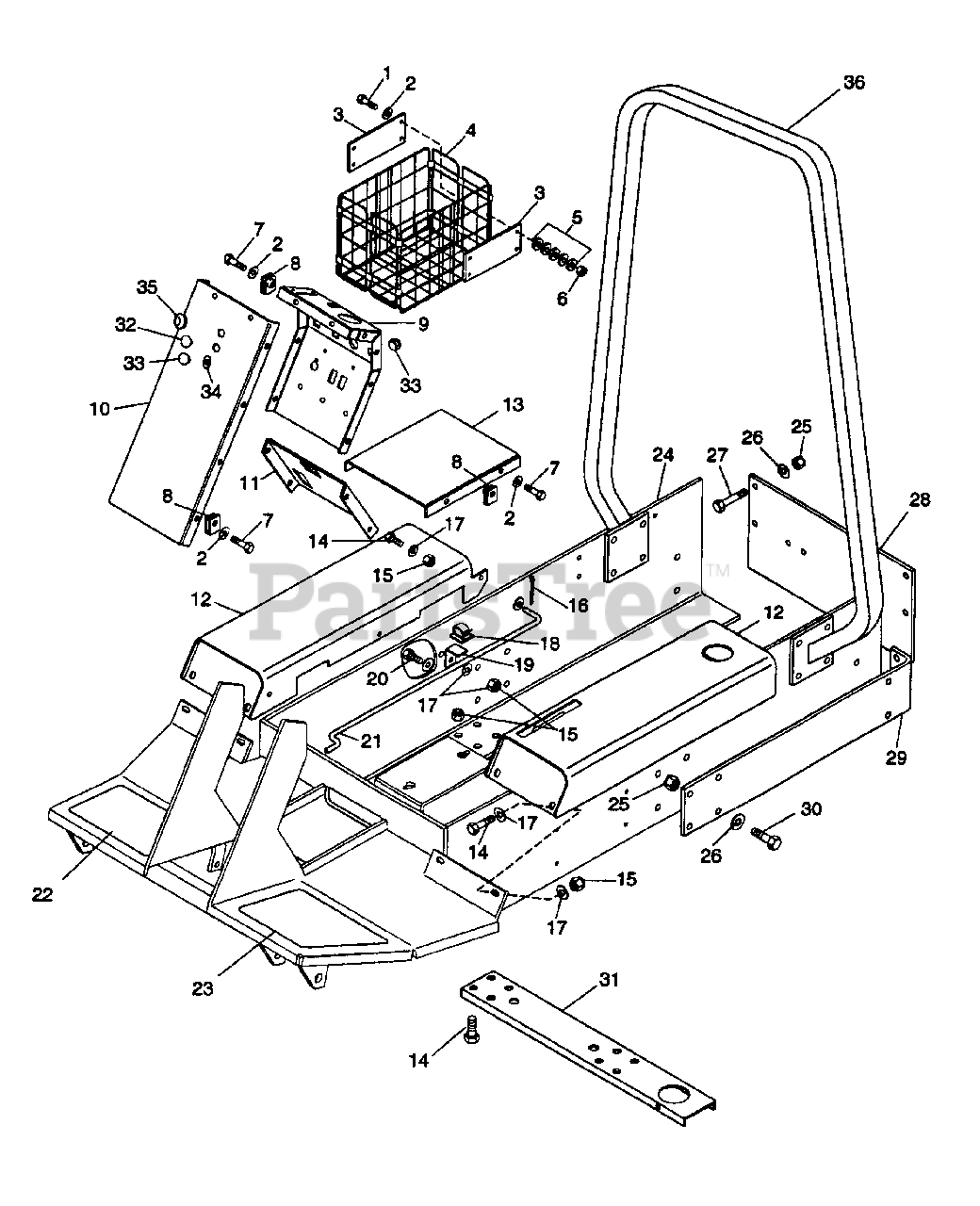

MAIN FRAME Parts Diagram

  • Title

1

Gravely 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

Note: (989015, 050)

$1.99

$

In Stock, Qty 8

0

2

Gravely 06424900

WSHR-FL-STL .281X.625X.065
(Superseded to 06401001)

Note: (989015, 050)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 06424900

WSHR-FL-STL .281X.625X.065
(Superseded to 06401001)

Note: (989014, 049)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 08976600

STRP,BASKET

Note: (989015, 050)

$

$

Not available

4

Gravely 08976700

BASKET

Note: (989015, 050)

$

$

Not available

5

Gravely 06431500

WSHR-FRICTION .750X.256X.100

Note: (989015, 050)

$14.99

$

Usually ships in 4-12 days

0

6

Gravely 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

Note: (989015, 050)

$5.49

$

In Stock, Qty 12

0

7

Gravely 06113500

SCR-MCH .25-20 PAN HD

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

9

Gravely 09009400

PNL,INST SILK SCREEN

$

$

Not available

10

Gravely 08978500

PNL,FRONT

$

$

Not available

11

Gravely 09009600

PNL,BRAKE LOCK SILK SCRN
(Superseded to 59002300)

$

$

Not available

12

Gravely 09001000

WLDMT,FENDER R.H.

$13.99

$

Usually ships in 4-12 days

0

12

Gravely 09004600

BRKT,CLUTCH STOP

$

$

Not available

13

Gravely 09006700

WOOD FAB. ENDS 30H

Note: (989015, 049, 050)

$

$

Not available

13

Gravely 09007600

PNL,ACCESS SILKSCREEN

Note: (989014)

$

$

Not available

14

Gravely 05932600

BLT-HEX .38-16X.875 GR5 YWZC

$2.99

$

Usually ships in 4-12 days

0

15

Gravely 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

17

Gravely 06429300

WSHR-FL-STL .406X.812X.065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06921600

CLIP,WIRE

$

$

Not available

19

Gravely 09007200

BRKT,STAY ROD

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 09029500

ROD,STAY

$

$

Not available

22

Gravely 08964600

CVR,R.H. FOOT

$14.99

$

Usually ships in 4-12 days

0

23

Gravely 08964000

CVR,L.H. FOOT

$14.99

$

Usually ships in 4-12 days

0

24

Gravely 09003400

BAR,NEUTRAL STOP

$

$

Not available

25

Gravely 06512900

NUT-LK-NYL .50-13 GR 5 PL
(Superseded to 06540600)

$2.99

$

In Stock, Qty 20+

0

26

Gravely 06429500

WSHR-FL-STL .531X1.062X.095
(Superseded to 06441900)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 05920000

BLT-HEX .50-13X1.50 PL GR5
(Superseded to 05962000)

Note: (989015, 050)

$4.99

$

In Stock, Qty 12

0

27

Gravely 05914300

BLT-HEX .50-13X2.25 PL GR5
(Superseded to 05961000)

Note: (989014, 049)

$3.99

$

In Stock, only 2 left!

0

28

Gravely 09003100

PLT,BUMPER

Note: (989015, 050)

$

$

Not available

28

Gravely 09003100

PLT,BUMPER

Note: (989014, 049)

$

$

Not available

29

Gravely 09033700

BUMPER

$

$

Not available

30

Gravely 05914600

BLT-HEX .50-13X1.25 PL GR5
(Superseded to 05958900)

Note: (989014, 015, 049)

$3.49

$

In Stock, Qty 6

0

30

Gravely 05946000

BLT-HEX .50-13X1.75 YZ GR8

Note: (989050)

$

$

Not available

31

Gravely 08998600

BR,FRAME

$

$

Not available

32

Gravely 07503500

KNOB

Note: (989014, 049)

$

$

Not available

33

Gravely 07536300

PLUG,HOLE

Note: (989014, 049)

$

$

Not available

34

Gravely 06421400

WSHR-FL-STL .328X1.0X.094 PL
(Superseded to 06437500)

Note: (989015, 050)

$3.99

$

In Stock, only 2 left!

0

35

Gravely 07502600

GROMMET, .31 ID

Note: (989015, 050)

$

$

Not available

36

Gravely 09036300

WLDMT, ROLLOVER BAR

Note: (989050)

$284.99

$

Usually ships in 4-12 days

0

NS

Gravely 03542400

DECAL, DANGER HAND
(Superseded to 05350300)

$

$

Not available

NS

Gravely 05214000

DECAL,CORNER

$

$

Not available

NS

Gravely 09035800

DECAL SET, PM 350/400

$56.99

$

Usually ships in 4-12 days

0
