989014 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 22hp Yanmar (SN: 000101 & Above) STEERING AXLE ASSEMBLY Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Yanmar

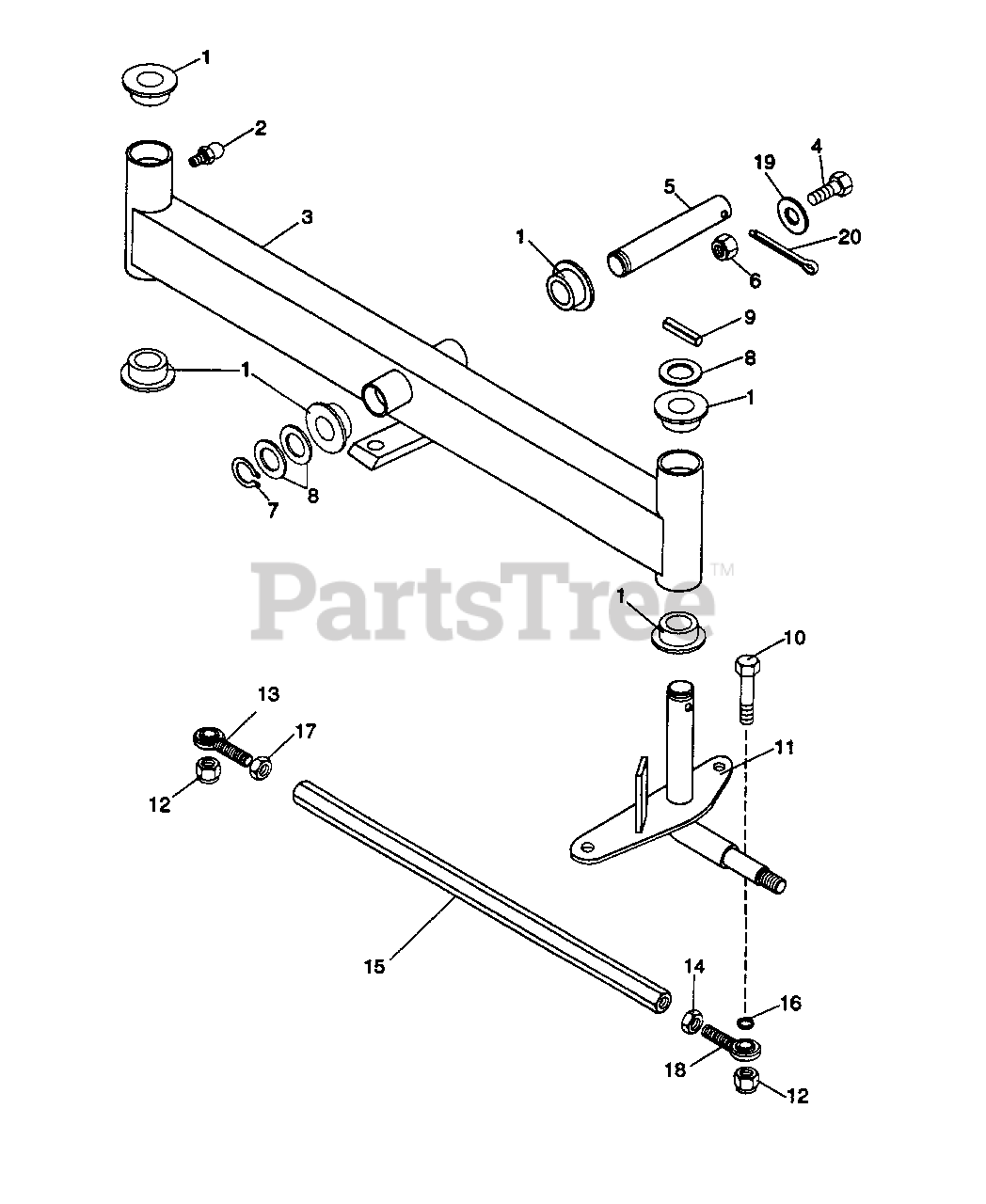

STEERING AXLE ASSEMBLY Parts Diagram

  • Title

1

Gravely 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$11.99

$

In Stock, Qty 20+

0

2

Gravely 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

3

Gravely 08995100

WLDMT,AXLE

$

$

Not available

4

Gravely 05934000

BLT-HEX .25-20X.875

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 09016500

SHAFT, PIVOT

$

$

Not available

6

Gravely 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$5.49

$

In Stock, Qty 12

0

7

Gravely 05712300

RG-RTNG-EXT .906X.078
(Superseded to 05707300)

$3.49

$

In Stock, Qty 9

0

8

Gravely 05421600

WSHR-HDND-THRUST 1.00X1.55X.03
(Superseded to 06435300)

$5.49

$

In Stock, Qty 8

0

9

Gravely 05800400

PIN-ROLL .250X1.50

$

$

Not available

10

Gravely 05923500

BLT-HEX .50-13X2.00 PL GR5
(Superseded to 05901929)

$3.49

$

In Stock, only 1 left!

0

11

Gravely 09006300

KINGPIN, L.H.

$39.99

$

Usually ships in 4-12 days

0

11

Gravely 09006400

WLDMT,KINGPIN R.H.

$

$

Not available

12

Gravely 06512900

NUT-LK-NYL .50-13 GR 5 PL
(Superseded to 06540600)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 08959600

ROD END, 1/2 RH

$40.99

$

Usually ships in 4-12 days

0

14

Gravely 06504400

NUT-JAM .50-20 PL
(Superseded to 06500838)

$2.99

$

Usually ships in 4-12 days

0

15

Gravely 09004500

ROD,TIE

$

$

Not available

16

Gravely 06429500

WSHR-FL-STL .531X1.062X.095
(Superseded to 06441900)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06510500

NUT-JAM .50-20 LH THD PL
(Superseded to 06538300)

$

$

Not available

18

Gravely 09002500

ROD END, 1/2 LH

$

$

Not available
