989014 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 22hp Yanmar (SN: 000101 & Above) WHEELS Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Yanmar

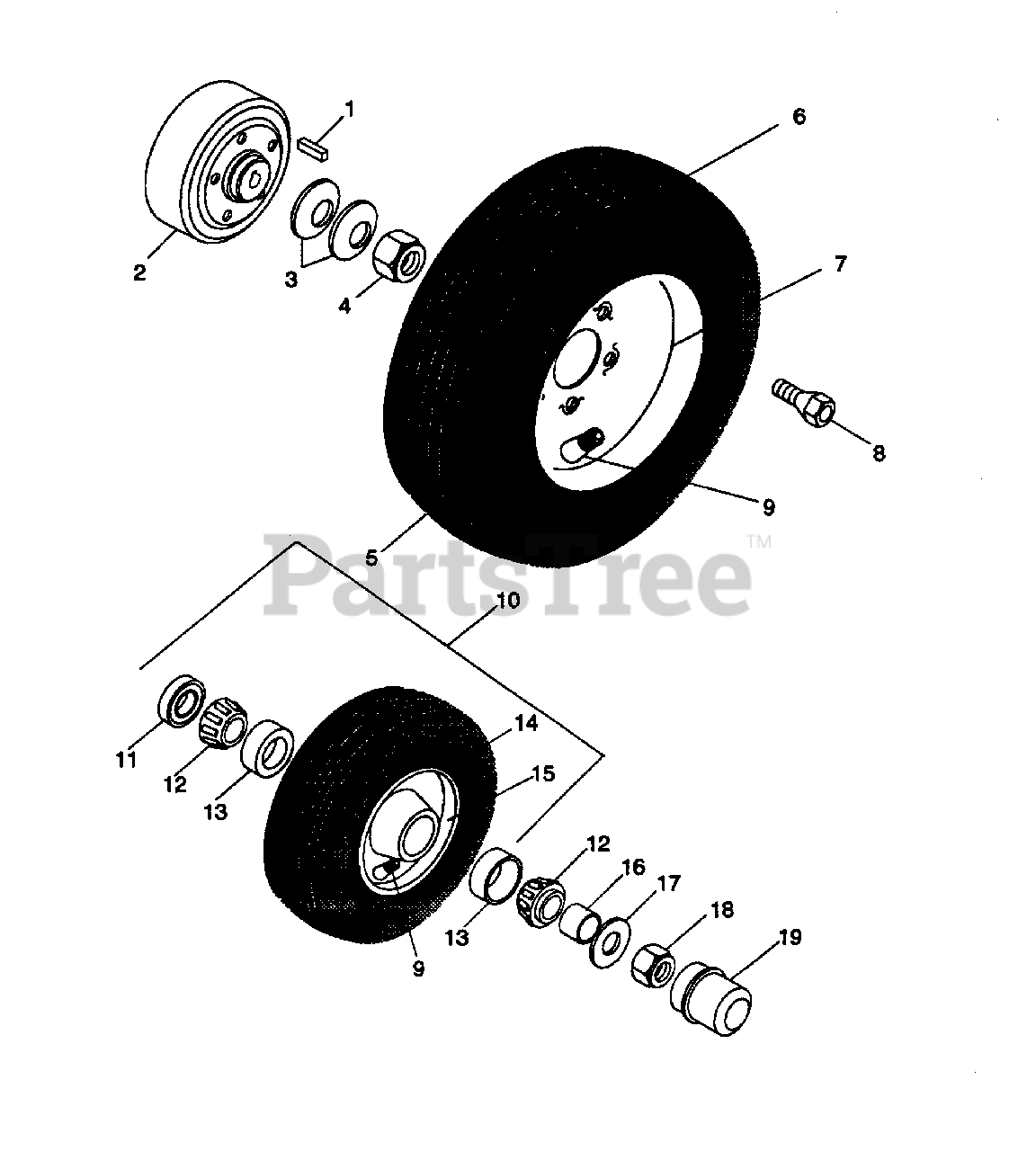

WHEELS Parts Diagram

  • Title

1

Gravely 06607200

KEY-SQ .312X2.25

$6.49

$

Usually ships in 4-12 days

0

2

Gravely 08968200

HUB,WHEEL

$

$

Not available

3

Gravely 08346300

SG-BLVL .097X.145X2.00

$

$

Not available

4

Gravely 06521300

NUT-LK 1.0-14 WSHR INSERT
(Superseded to 00181818)

$10.99

$

Usually ships in 4-12 days

0

5

Gravely 07132100

T/WHL ASSY 23X10.50-12
(Superseded to 07150100)

$

$

Not available

6

Gravely 07119500

TIRE & WHEEL ASSY 23X8.5X12
(Superseded to 20928000)

$

$

Not available

7

Gravely 20928100

TIRE, 23X10.50-12

$

$

Not available

8

Gravely 20928000

TIRE,REAR 23X8.50-12

$

$

Not available

9

Gravely 20928200

WLDMT,RIM

$156.99

$

Usually ships in 4-12 days

0

10

Gravely 07013800

BLT .44-20X1.0
(Superseded to 07051400)

$10.99

$

In Stock, only 4 left!

0

11

Gravely 07520000

VALVE STEM ASS'Y

$2.99

$

In Stock, only 1 left!

0

12

Gravely 21212500

TIRE, ASSEMBLY

$290.99

$

Usually ships in 4-12 days

0

13

Gravely 07133300

T/WHL ASSY 15X6.00-6

$

$

Not available

14

Gravely 05613200

SEAL 1.206X1.785X.486

$17.99

$

In Stock, Qty 7

0

14

Gravely 05404500

BRG-CONE .750X.61

$29.99

$

In Stock, Qty 20+

0

15

Gravely 05404400

BRG-CUP 1.781X.475

$11.99

$

In Stock, Qty 17

0

16

Gravely 03495900

SPACER .752X1.000X.500

$16.99

$

In Stock, only 4 left!

0

17

Gravely 06400400

WSHR-FL-STL.656X1.312X.095 PL
(Superseded to 06442800)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 06506900

NUT-LK-CTR .625-11 PL
(Superseded to 06535300)

$2.99

$

In Stock, only 1 left!

0

19

Gravely 03496000

DUST CAP

$15.99

$

In Stock, Qty 8

0
