989017 - Gravely Pro-Master Zero-Turn Mower, 17hp Kohler, Gear (SN: 000101 & Above) FRONT AND REAR WHEELS Parts Diagram

Pro-Master Zero-Turn Mower, 17hp Kohler, Gear

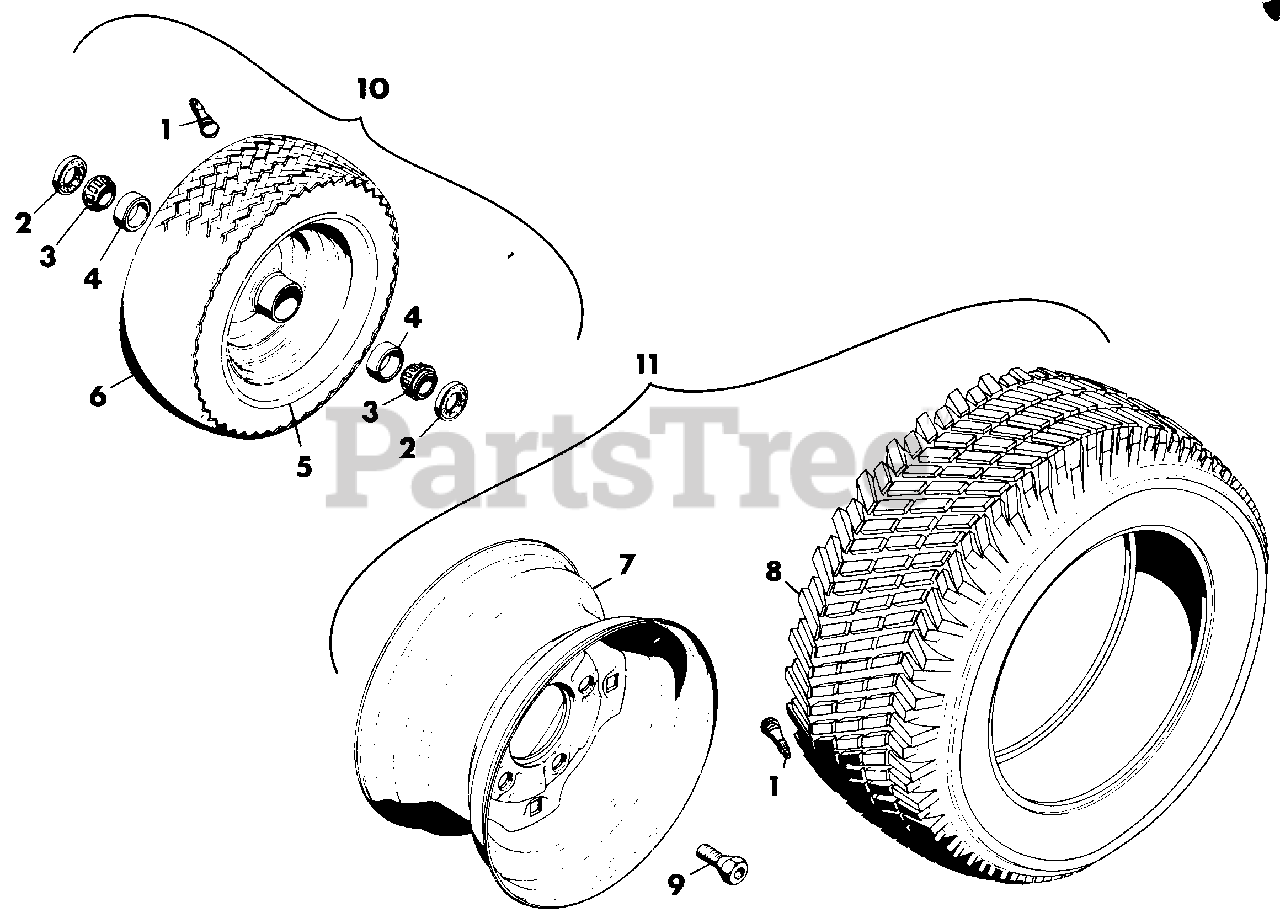

FRONT AND REAR WHEELS Parts Diagram

  • Title

1

Gravely 011191

ASSEMBLY, VALVE STEM
(Superseded to 07520000)

$2.49

$

In Stock, Qty 7

0

2

Gravely 034959

SEAL, WHEEL
(Superseded to 20615200)

$

$

Not available

3

Gravely 018446

BEARING, CONE
(Superseded to 05404500)

$22.99

$

In Stock, Qty 20+

0

4

Gravely 018445

BEARING, CUP
(Superseded to 05404400)

$9.49

$

In Stock, Qty 20+

0

5

Gravely 035148

RIM, REAR
(Superseded to 20620000)

$

$

Not available

6

Gravely 031280

TIRE, 16X7.50-8
(Superseded to 07119600)

$216.99

$

Usually ships in 4-12 days

0

7

Gravely 034486

RIM, PRO MASTER
(Superseded to 07129000)

$

$

Not available

8

Gravely 034958

TIRE, 20X10.00-10
(Superseded to 07134600)

$

$

Not available

9

Gravely 034597

STUD, WHEEL
(Superseded to 07000143)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 034962

WHEEL, REAR PRO MASTER
(Superseded to 20615300)

$

$

Not available

11

Gravely 034957

WHEEL, FRONT PRO MASTER
(Superseded to 07129300)

$

$

Not available
